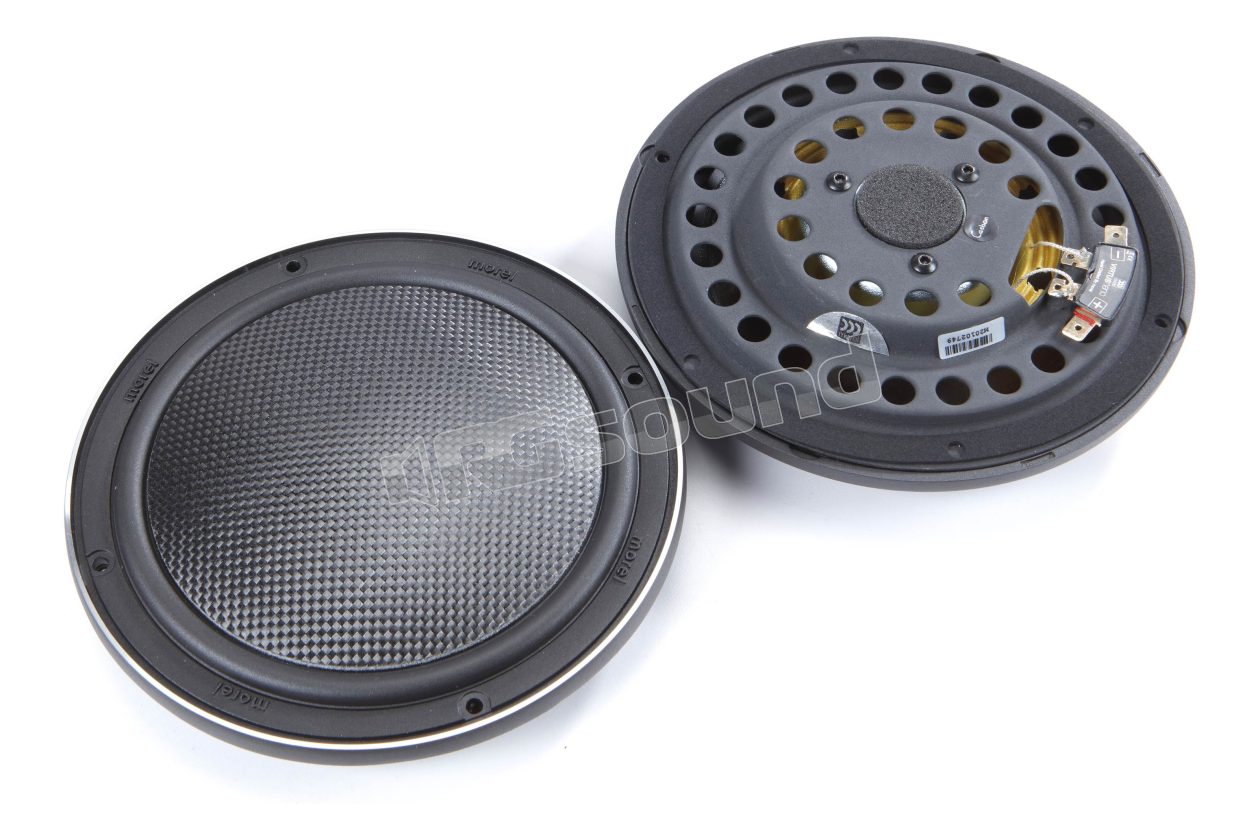

VIRTUS nano CARBON MW6 Pair of 6.5" woofers

Morel
Your price:
€ 445,00
Price per pair (VAT included)
Available on backorder
Calculating shipping costs to
Type
Woofer and midwoofer
Speaker Size
165 mm
MAX Power
300 Watt
RMS Power
100 Watt
Frequency Response
50 - 5.050 Hertz
Sensitivity
87 dB
Impedance
4 Ohm
Weight
0,45 Kg
Installation Depth
17 mm
Woofer Material
Fibra di carbonio

Morel VIRTUS nano CARBON MW6 pair of 6.5" (165mm) woofers, 4 Ohm.

Virtus Nano represents the essence of our innovative research to push acoustic and mechanical boundaries and offer practical solutions to car audio enthusiasts. The Virtus nano series offers a new level of reference in a two, three way component and point source systems.

Morel VIRTUS nano CARBON MW6 Technical Specifications

  • Nominal impedance (ohm) 4
  • Nominal power 100 Watt RMS
  • Maximum power 300 Watt
  • Sensitivity (2.83 V/1 M) dB 87
  • Frequency response Hz 50 - 5050
  • Resonance frequency Fs Hz 68
  • Voice coil diameter mm 54 (2.16")
  • Voice coil height mm 9.5 (0.4")
  • Voice Coil type/Ex Titanium Titanium
  • Voice coil wire Hexatech™ Aluminum Hexatech Aluminum
  • DC Resistance (ohm) 3
  • Voice coil inductance. @1kHz (mH) 0.17
  • Vented neodymium magnetic system vented neodymium
  • HE-Magnetic gap Height mm (inches) 4 (0.16")
  • BL/BXL product 3.85
  • Maximum Linear Ex./Xmax mm (inches) ±3 mm (0.12) ±3 mm (0.12)
  • Electric Q factor
    • QES 0.97
    • QTS 0.65
    • SGQ 1.98
  • MMS moving mass - gr/ounce 14 (0.49)
  • Equiv. Air Load VAS - L (cu.ft3) 11 (0.38)
  • Effective piston area SD cmq (square inches) 139 (21.545)
  • Cone type Carbon cone
  • Cone material Carbon + foam core
  • Unit diameter mm (inches) 165 (6.5")
  • Mounting depth mm 17 (0.7")
  • Mounting opening 137 (5.48")
  • Net weight gr 450
€ 445,00 Price incl. VAT
