VIRTUS Nano Carbon Integra 602 ultra slim, 17 mm (0.67") mounting depth, high efficiency

Morel

Discontinued

Your price:
€ 499,00
Price per pair (VAT included)
Type
Coaxial
Speaker Size
165 mm
Coaxial Type
2-way
Frequency Response
50 - 25000 Hertz
MAX Power
300 Watt
RMS Power
100 Watt
Sensitivity
87 dB
Impedance
4 Ohm
Woofer Material
Cono in carbonio
Tweeter Material
Cupola in seta

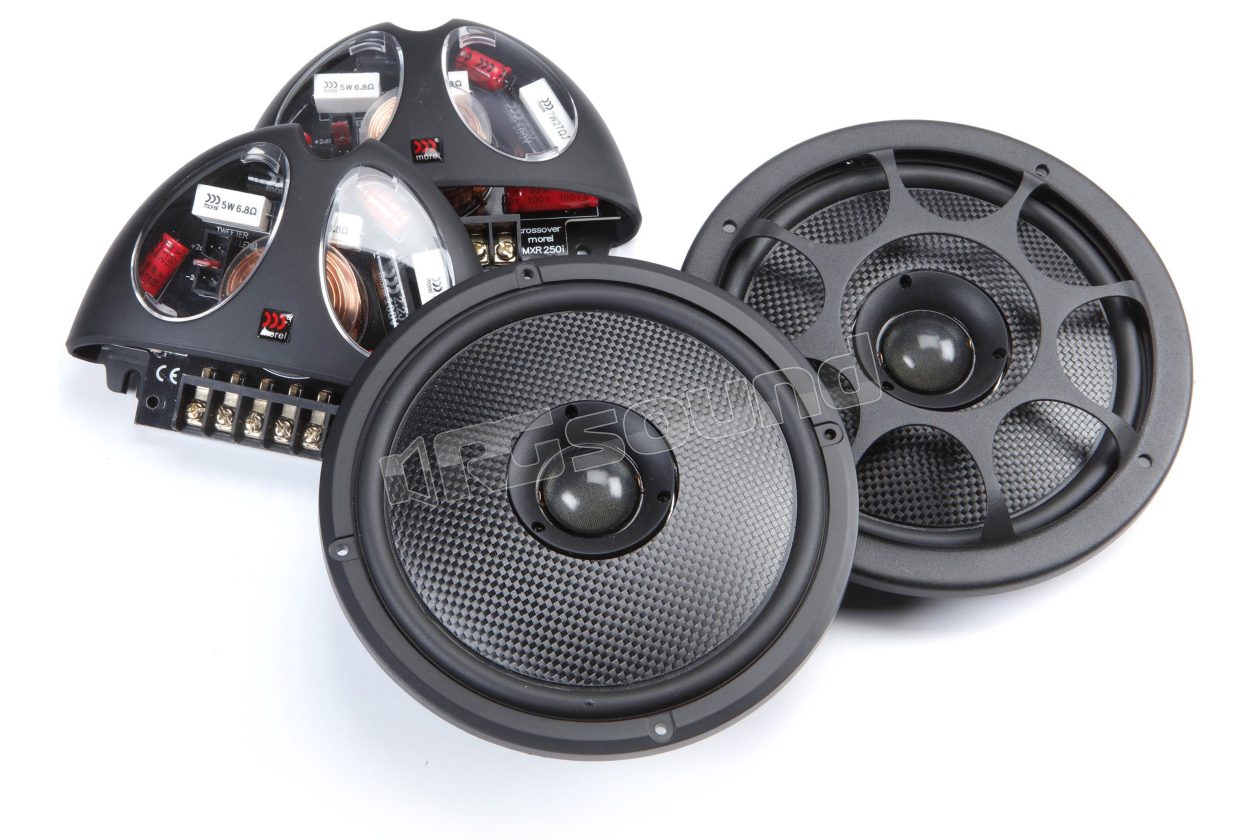

Morel VIRTUS Nano Carbon Integra 602 165mm (6.5 inch) coaxial system the thinnest ever created for cars. Designed to perform excellently in the inherently problematic acoustic chamber of a car and in the limited space and off-axis positioning to which the installer is often forced.

Winner of the EISA 2018-2019 award for best product for the thinnest system and the CTA 2018 Design and Engineering Award, the Virtus Nano Integra 602 is an ultra-thin high-fidelity source speaker (patent pending). It expands the Virtus Nano series and offers even greater installation options where space is limited.

Virtus Nano Integra is a true tour-de-force of innovative engineering, enabling Hi-Fi sound reproduction from a speaker only 0.67" (17 mm) deep.

Its design leverages Morel's craftsmanship and engineering technology employing some of Morel's renowned traits together with some new ones. Its new patented Z.P.I (Zero Point Integra) technology, dual motor dual magnet, combines a phase-aligned tweeter centered in the woofer to provide natural sound reproduction and better tonal balance across the entire audible frequency range.

The "Grand-dome" convex cone made of highly damped hybrid carbon fiber sandwich and foam core offers wide dispersion and excellent on and off-axis response qualities. The woofer's External Voice Coil (EVC™) motor is equipped with a high-efficiency neodymium magnetic system and a 2.1 inch diameter voice coil to enable high power and linear movement for superior resolution over other designs.

Additionally, Morel VIRTUS nano Integra 602 features a brand new hand-crafted 1.1" Acuflex™ soft dome tweeter to provide a smooth and natural sound signature for the entire system.

The acoustic qualities of Virtus Nano Integra combined with its reduced dimensions allow installers to have an easier time mounting a component system aftermarket in any car without compromising performance. This high-fidelity car audio promises a memorable music experience.

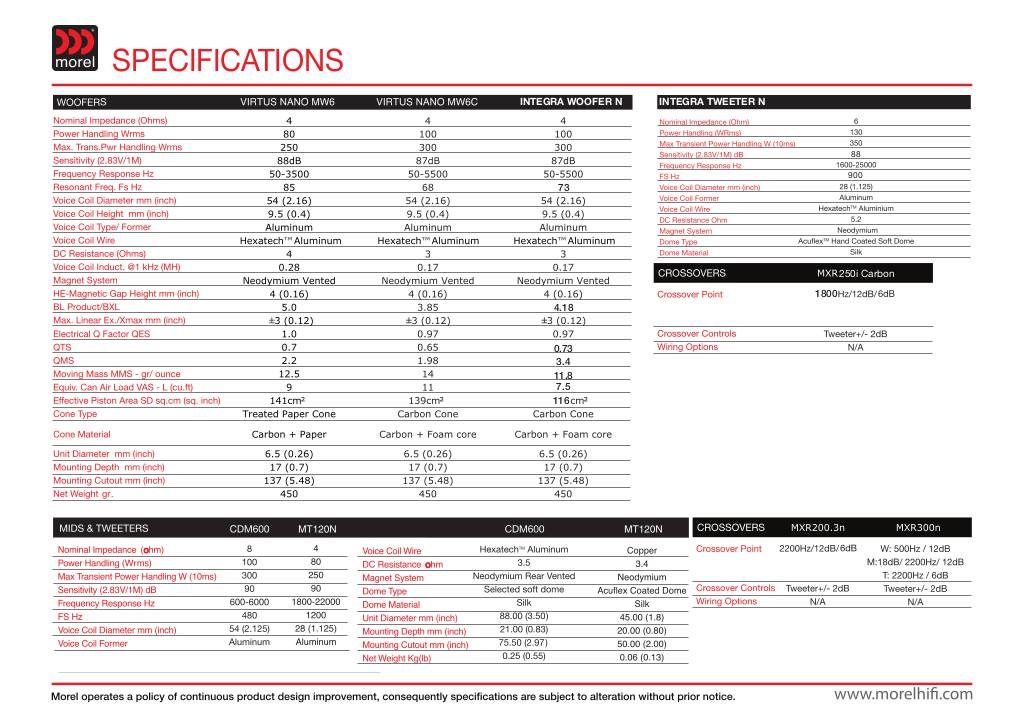

Scheda tecnica

n-20200625170133-virtus-nano-and-virtus-nano-integra-series-specsificaition.pdf

Morel VIRTUS nano Integra 602 technical specifications

Diameter 165 mm

Cone material: carbon

Hexatech aluminum voice coil 54 mm

Neodymium magnet

Rated power 100 Watt

Maximum power 300 Watt

Impedance 4 Ohm

Sensitivity 87 dB

Weight 450 gr

Installation depth 17 mm

Installation hole 137 mm

Discontinued
