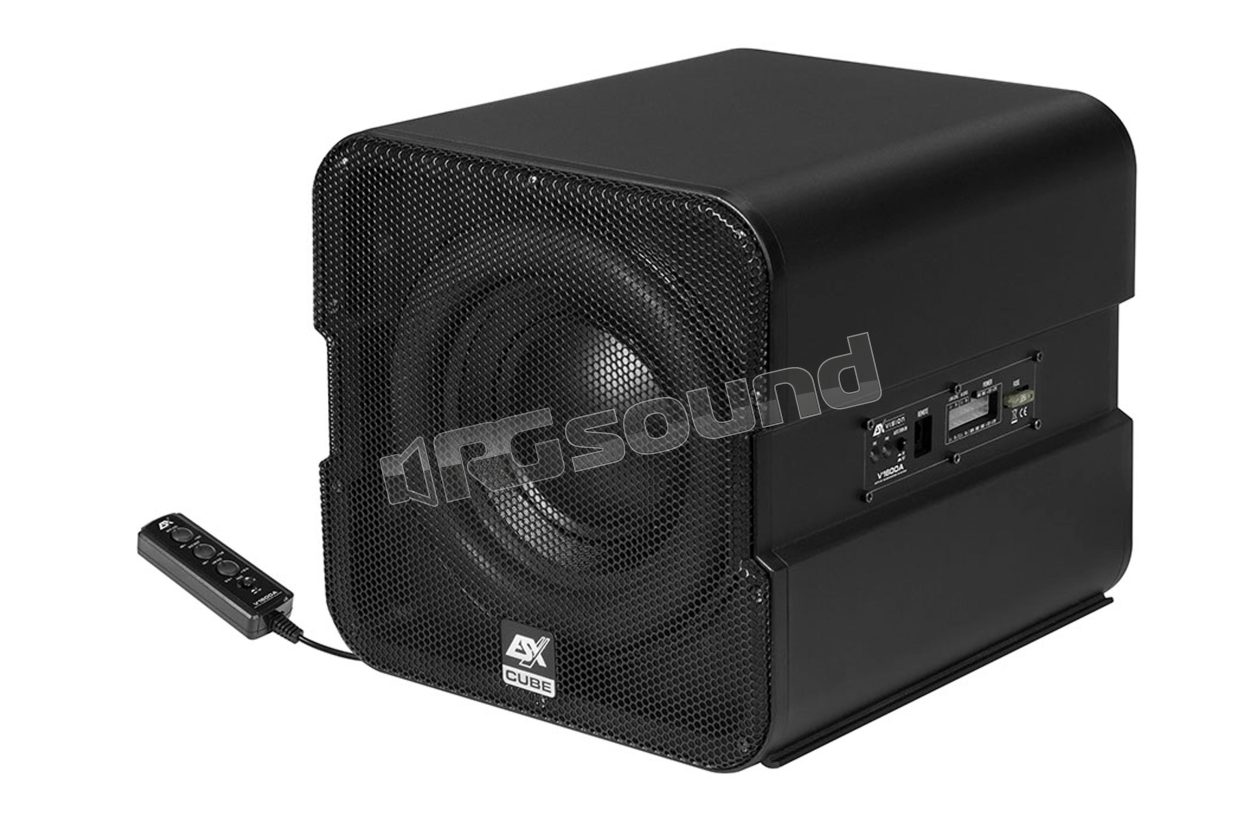

V1600A 20cm active subwoofer with class AB amplifier

ESX
Your price:
€ 383,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Powered subwoofer
Speaker Size
200 mm
MAX Power
300 Watt
RMS Power
150 Watt
Impedance
4 Ohm
Enclosure Size
291 x 251 x 256 mm
Enclosure Type
Sealed Enclosure

ESX V1600A 20 cm (8") active subwoofer with integrated class AB amplifier.

The VISION series achieves high-profile growth with the completely new active subwoofer box V1600A. During the design of this audio system, particular attention was paid to rich and precise bass from the small case dimensions, which was optimally realized with the active woofer of 20 cm (8") specially tuned and the passive woofer opposite of the same size. This concept provides more bass than conventional bass reflex systems with less noise. The compact yet extremely solid housing of ESX V1600A is made of 5 mm thick extruded aluminum casting and the two sturdy protective grilles protect the woofers.
Thanks to the ingenious mounting system, the "miracle cube" is very easy to install. A stable base plate with guide rails is fixed in the trunk and the housing is simply pushed into the rails. The advantage here is that the audio system can be removed from the vehicle at any time if space is needed elsewhere. The amplifier integrated class A/B is equipped with high-level inputs and automatic turn-on function and provides up to 300 watts of music power.

Scheda tecnica

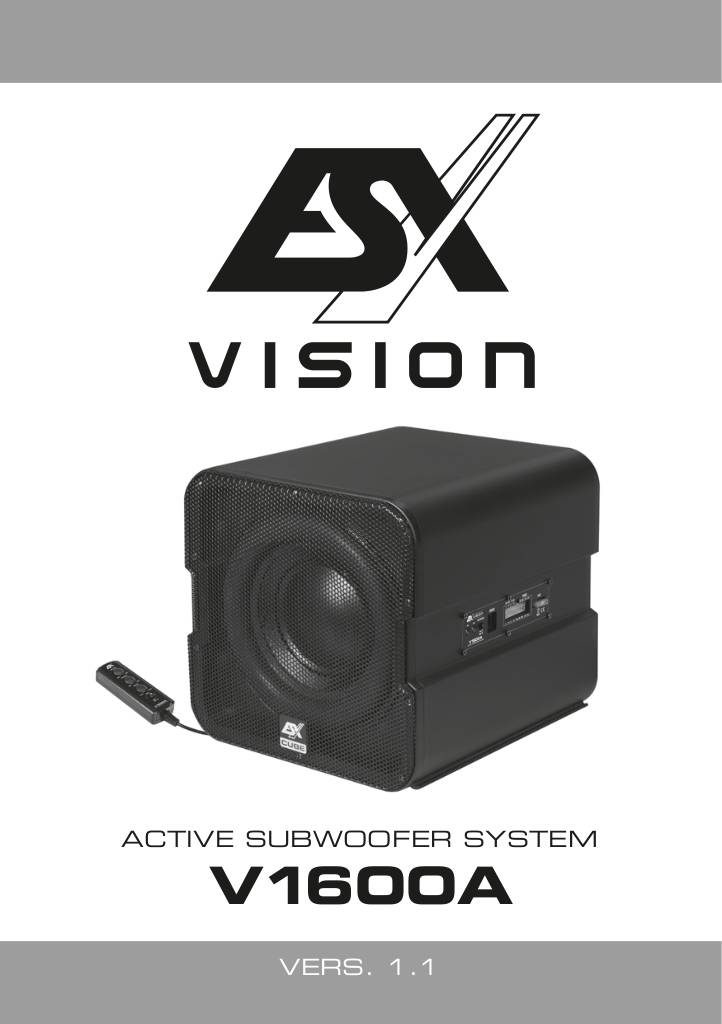

n-20200917110137-v1600a.pdf

ESX V1600A Technical Specifications

  • Integrated class A/B amplifier
  • Power 1 x 150/300 Watt RMS / Max.
  • LP 50-150 Hz
  • Bass Boost 0-12dB @ 45 Hz
  • Fixed subsonic filter 25 Hz
  • Phase switch 0/180°
  • Automatic turn-on via high-level inputs
  • Low-level inputs
  • Remote control with bass boost, input level,
  • Low-pass controller and phase switch included
  • Dimensions: 291 x 251 x 256 mm
