US08 ACTIVE 24V EVO 24V active under-seat subwoofer

Audio System
Your price:
€ 343,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Powered subwoofer
Speaker Size
200 mm
MAX Power
250 Watt
RMS Power
200 Watt
Impedance
4 Ohm
Weight
6,5 Kg
Enclosure Size
345x250x70 mm
Enclosure Type
Reflex Enclosure

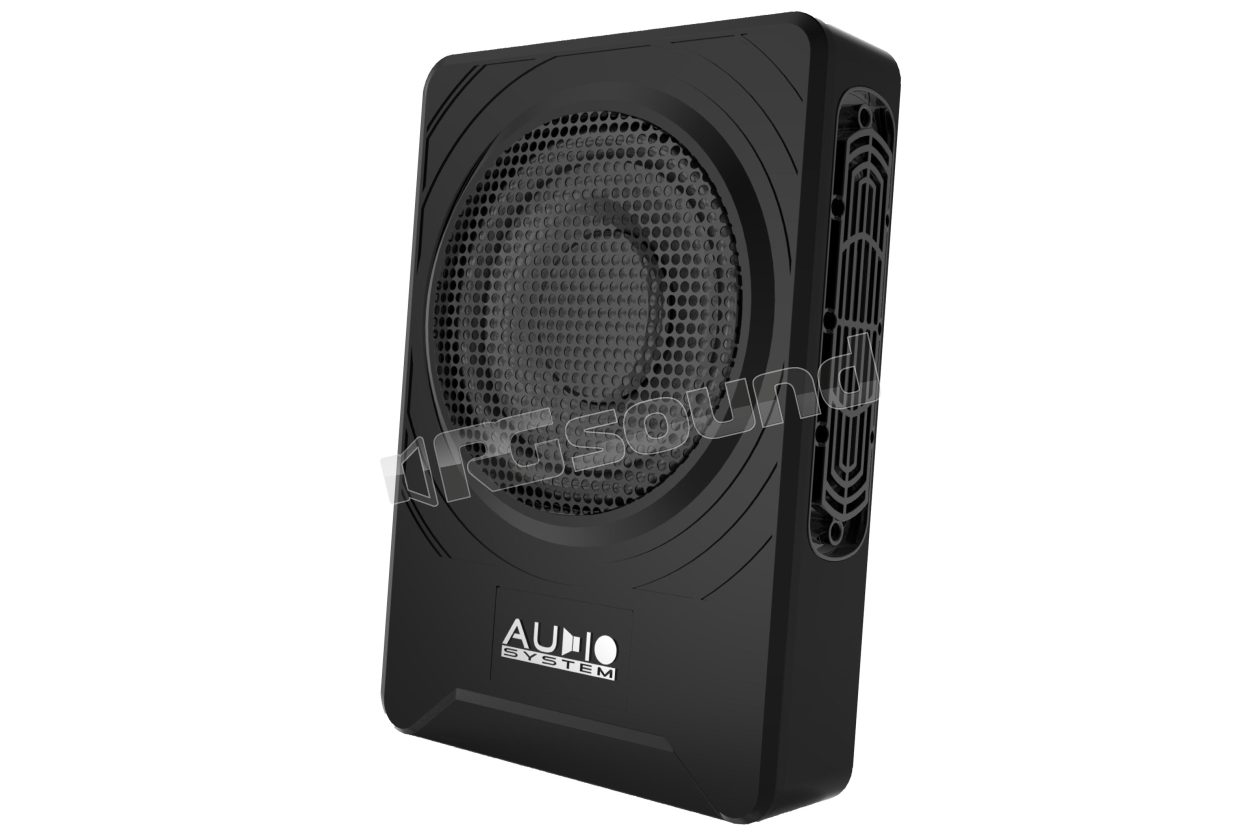

Audio System US08 ACTIVE 24V Under-seat subwoofer with integrated mono amplifier

Extremely robust die-cast aluminum housing with a total weight of 6.5 kg. Passive cone on both sides, phase shift: 0-180°, special electronic crossover with bass boost: 0-18 dB at 50 Hz, RCA input and high-level input with auto turn-on.

The package includes the RTC remote control and the original AUDIO SYSTEM cable set.

Scheda tecnica

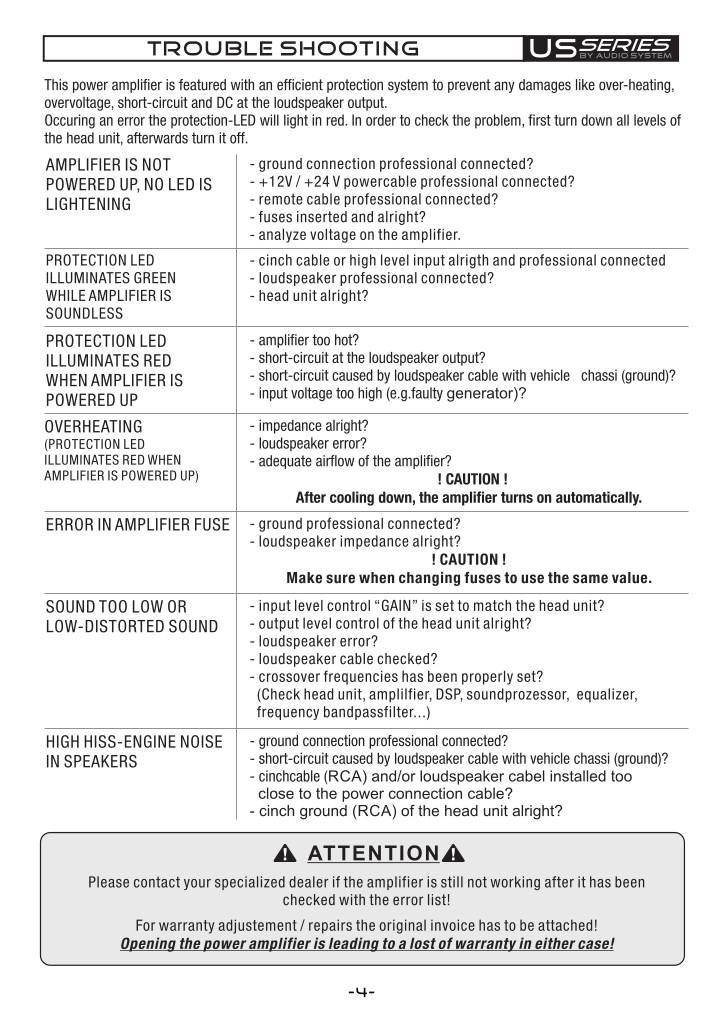

n-20260302152737-us08-active-24v-evo.pdf

Audio System US08 ACTIVE 24V Technical specifications

  • Supply voltage 10 - 16 V / 22 - 28 V
  • RMS power @ 2 Ohm Mono 225 W
  • Signal-to-noise ratio > 92 dB
  • Low-pass crossover (LPF) 50 - 150 Hz
  • Subsonic filter 20 Hz
  • Phase shift 0° / 180°
  • Frequency response 20 Hz ~ 150 Hz (+/-1 dB)
  • THD@RMS Watt < 0.3%
  • Bass boost from 0 to +18 dB
  • Fuse rating 25 A
  • Input sensitivity 0.1 V ~ 10 V (+/- 5%)
  • Dimensions 345 (L) x 245 (D) x 70 (H) mm
€ 343,00 Price incl. VAT
