UP W8MB-S4 RHD Subwoofer for right-hand drive

Match
Your price:
€ 469,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to

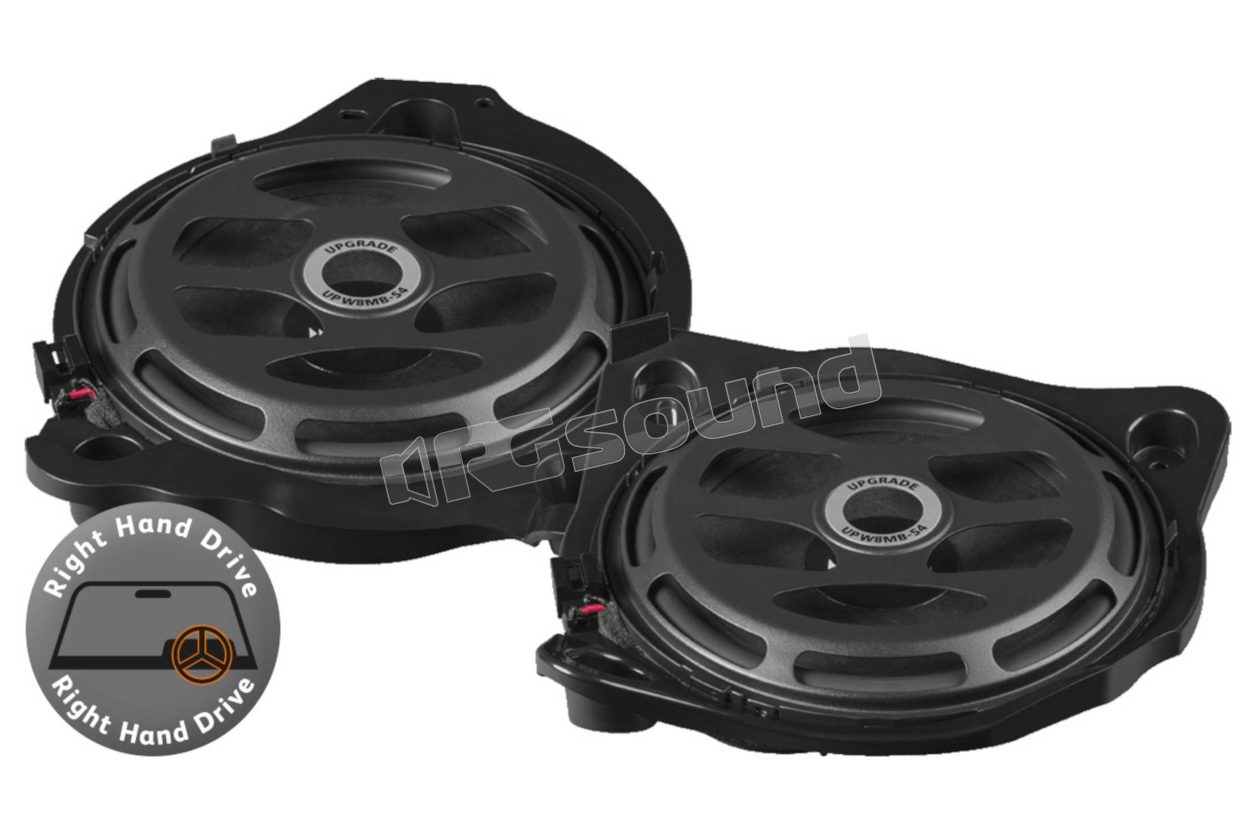

Match UP W8MB-S4 RHD Subwoofer 8" / 200 mm with Right-Hand Guide

The 8" / 200 mm woofers of the UP W8MB-S4 system fit perfectly into the original mounting positions in the bulkhead and deliver exactly the right power that you can feel and that brings music to life. In combination with DSP amplifiers these subwoofers reveal all their potential in terms of dynamics.

UP W8MB-S4 RHD Features

  • Sound characteristics optimized for Mercedes vehicles, for spectacular sound in combination with significantly increased power handling
  • Baskets developed exclusively and connectors specific to Mercedes vehicles for easier installation
  • Perfectly compatible with other MATCH UPGRADE components, such as the DSP amplifier.
  • Right-hand guide version

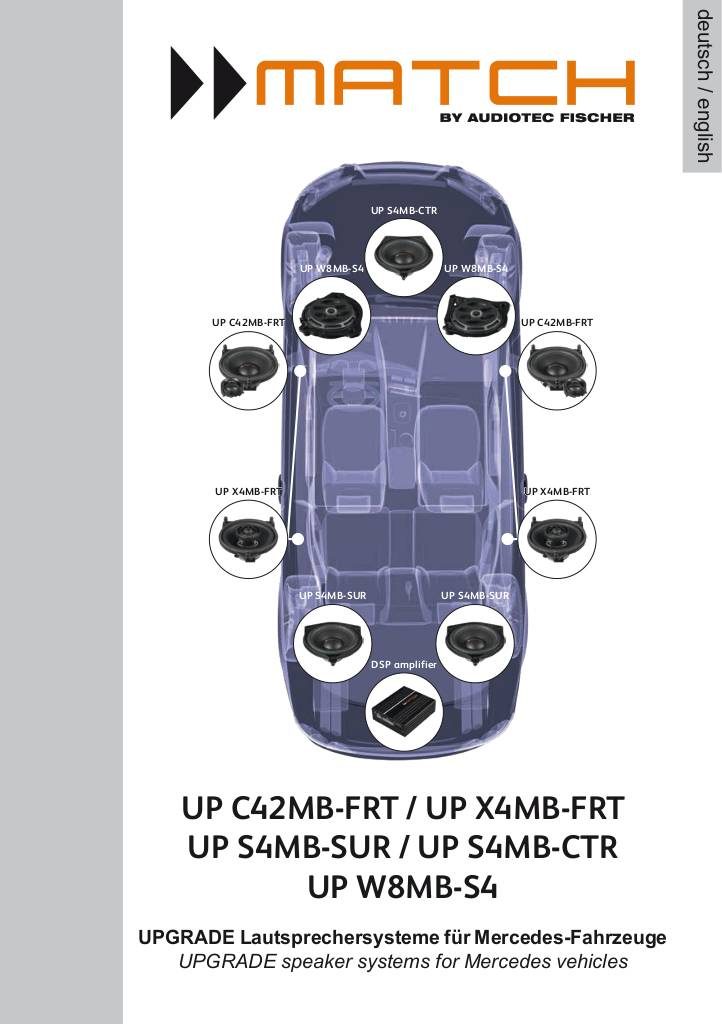

Manuale Utente

n-20230606150028-manuale-utente-up-w8mb-s4-rhd.pdf

2 x MATCH UP W8MB-S4 Subwoofer right-hand guide version 1 x Universal connection cable 1 x Instruction manual

Match UP W8MB-S4 RHD Technical Specifications

  • RMS / Max Power P 100 / 200 Watt
  • Impedance Z 1 x 4 Ω
  • DC Resistance Re 3.6 Ω
  • Frequency Response 25 - 250 Hz
  • Resonance Frequency Fs 51 Hz
  • Mechanical Q Factor Qms 7.24
  • Electrical Q Factor Qes 0.71
  • Total Q Factor Qts 0.64
  • Compliance Cms 276 µm/N
  • Equivalent Air Volume Vas 18 L
  • Force Factor B*I 7.6 Tm
  • Efficiency 1 W / 1 m SPL 88 dB
  • Cone Area Sd 216 cm²
  • Moving Mass Mms 35 g
  • Cone Material Paper Cone
  • Mechanical Resistance Rms 1.6 kg/s
  • Voice Coil Diameter ø 37 mm
  • Voice Coil Winding Height 16 mm
  • Maximum Linear Excursion Xmax +/- 5 mm
€ 469,00 Price incl. VAT
