UP W8MB-S4.3 LHD Subwoofer for left-hand drive

Match
Your price:
€ 563,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to

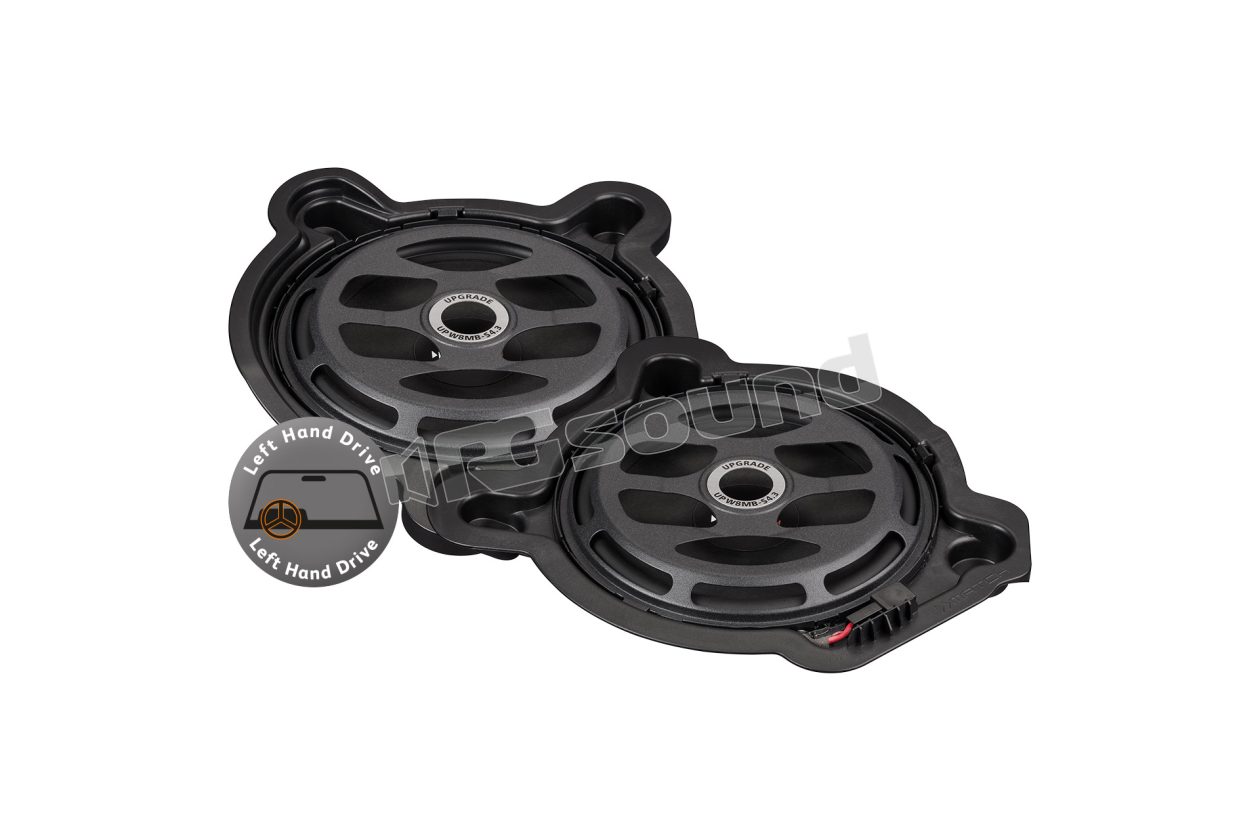

Match UP W8MB-S4.3 LHD Subwoofer with left-hand guide

The robust 8" / 200 mm woofers of the UP W8MB-S4.3 system adapt perfectly to the original mounting positions in the bulkhead and provide exactly the right power that is felt and brings the music to life. In combination with DSP amplifiers these subwoofers reveal their full potential in terms of dynamics.

UP W8MB-S4.3 LHD Features
  • 2 8" subwoofers with basket exclusively developed for Mercedes vehicles
  • Subwoofer specially designed for Mercedes with maximum sound quality
  • Aperiodic damped basket for deep and precise bass response
  • Mercedes vehicle-specific connectors for easier installation
  • Perfectly compatible with other MATCH UPGRADE components, for example with the DSP amplifier
  • Left-hand guide version

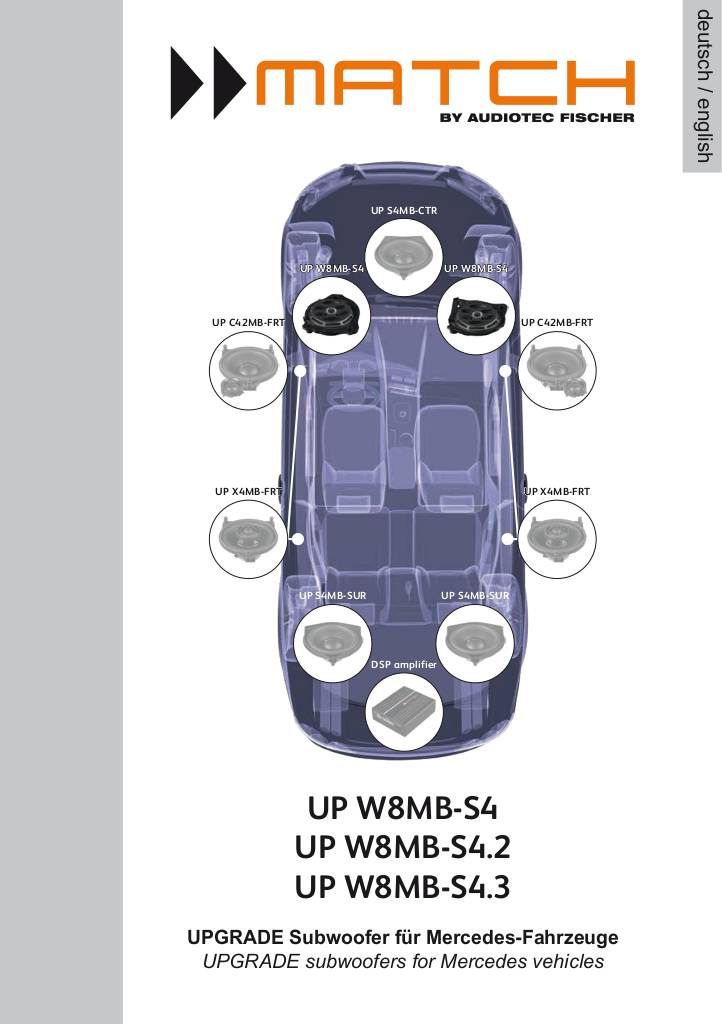

Manuale Utente

n-20230606145002-manuale-utente-up-w8mb-s4.pdf

2 x Subwoofer MATCH UP W8MB-S4.3 left-hand guide version 1 x Universal connection cable 1 x Instruction manualaa

Match UP W8MB-S4.3 LHD

  • RMS Power / Max. P 100 / 200 Watt
  • Impedance Z 1 x 4 Ω
  • DC Resistance Re 3.1 Ω
  • Frequency Response 25 - 250 Hz
  • Resonance Frequency Fs 45 Hz
  • Mechanical Q Factor Qms 1.11
  • Electrical Q Factor Qes 0.67
  • Total Q Factor Qts 0.42
  • Compliance Cms 333 µm/N
  • Equivalent Air Volume Vas 22 L
  • Force Factor B*I 7.0 Tm
  • SPL Sensitivity
    • 91 dB @ 2.83V / 1m
    • 88 dB @ 1W / 1m
  • Cone Area Sd 216 cm²
  • Moving Mass Mms 37 g
  • Cone Material Paper cone
  • Mechanical Resistance Rms 9.5 kg/s
  • Voice Coil Diameter ø 37 mm
  • Voice Coil Winding Height 16 mm
  • Maximum Linear Excursion Xmax +/- 5 mm
€ 563,00 Price incl. VAT
