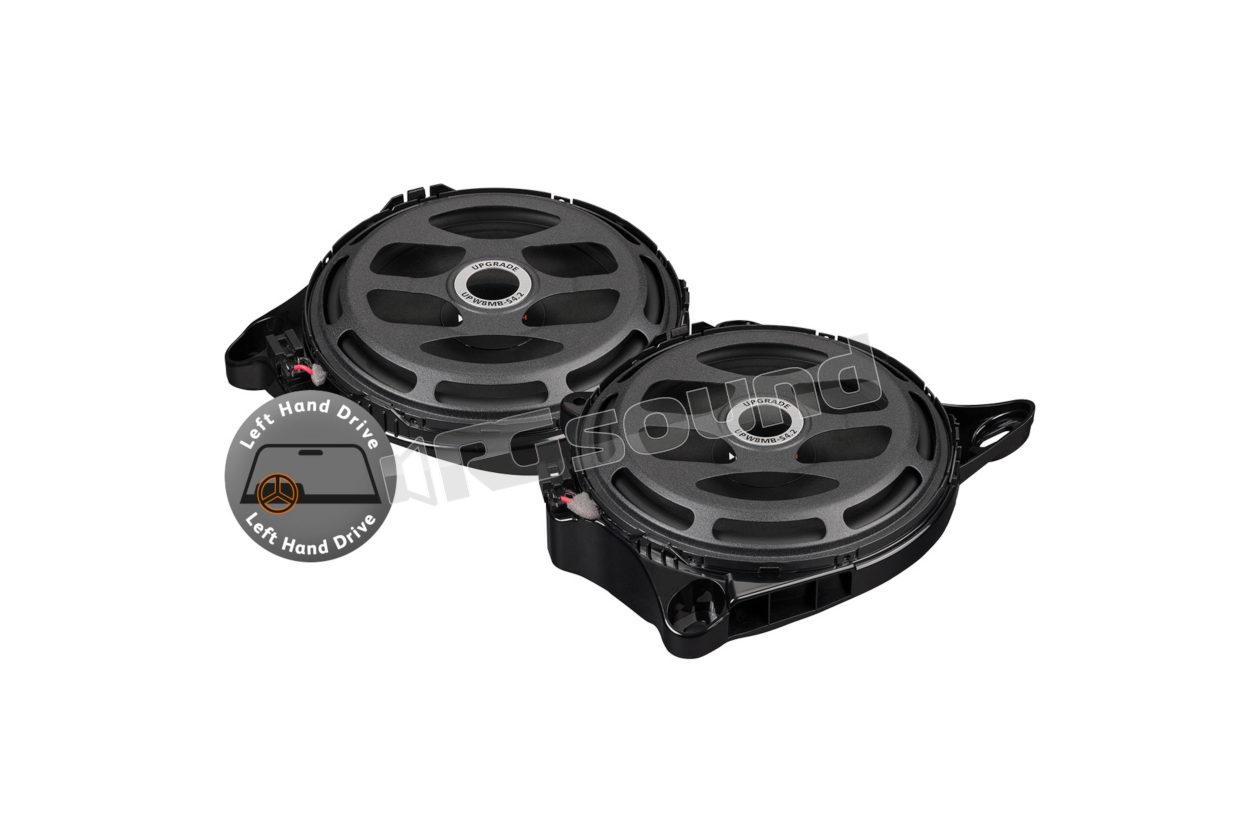

UP W8MB-S4.2 LHD Subwoofer for left-hand drive

Match
Your price:
€ 563,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to

Match UP W8MB-S4.2 LHD Subwoofer 8" (200 mm) with left-hand guide

Robust 8" (200 mm) woofers of the UP W8MB-S4.2 system fit perfectly into the original mounting positions in the bulkhead and provide exactly the right power that is felt and brings the music to life. In combination with DSP amplifiers these subwoofers reveal all their potential in terms of dynamics.

W8MB-S4.2 LHD Features

  • 2 subwoofers 8" with basket developed exclusively for Mercedes vehicles
  • Subwoofer specially designed for Mercedes with highest sound quality
  • Aperiodic damped basket for deep and precise bass response
  • Connectors specific to Mercedes vehicles for easier installation
  • Perfectly combinable with other MATCH UPGRADE components, for example with the DSP amplifier
  • Version with left-hand guide

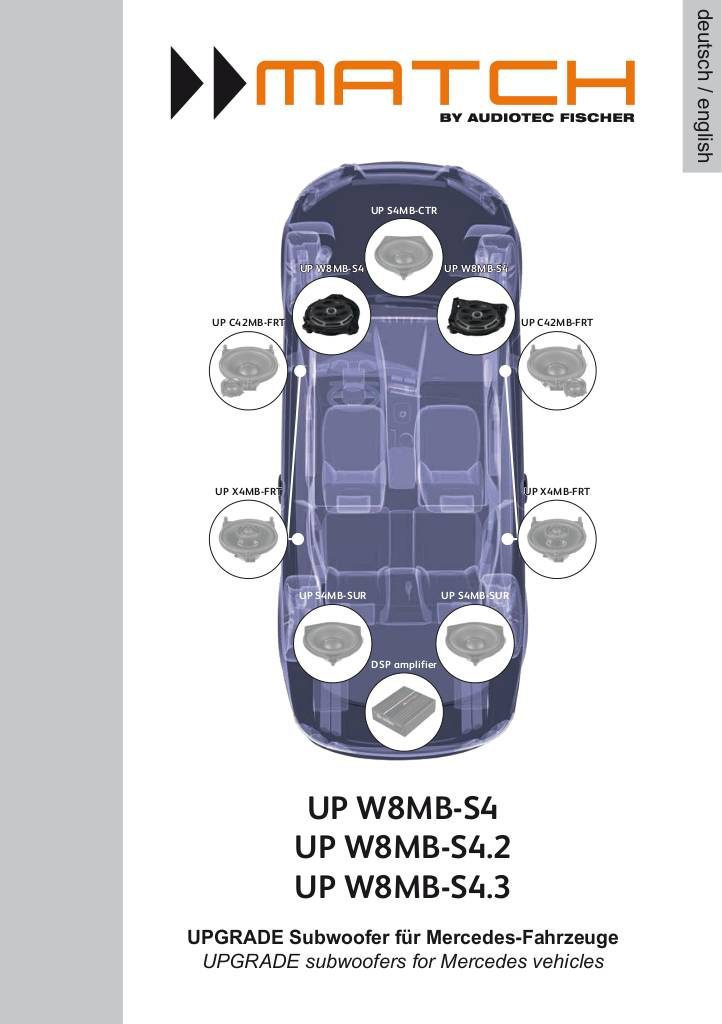

Manuale Utente

n-20230606145054-manuale-utente-up-w8mb-s4.pdf

2 x Subwoofer MATCH UP W8MB-S4.2 left-hand guide version 1 x Universal connection cable 1 x Instruction manual

Match UP W8MB-S4.2 LHD Technical Specifications

  • RMS Power / Max. P 100 / 200 Watt
  • Impedance Z 1 x 4 Ω
  • DC Resistance Re 3.3 Ω
  • Frequency Response 25 - 250 Hz
  • Resonance Frequency Fs 46 Hz
  • Mechanical Q Factor Qms 1.76
  • Electrical Q Factor Qes 0.77
  • Total Q Factor Qts 0.54
  • Compliance Cms 225 µm/N
  • Equivalent Air Volume Vas 15 L
  • Force Factor B*I 8.0 Tm
  • SPL Sensitivity
    • 91 dB @ 2.83V / 1m
    • 88 dB @ 1W / 1m
  • Cone Area Sd 216 cm²
  • Moving Mass Mms 40 g
  • Cone Material Paper Cone
  • Mechanical Resistance Rms 1.6 kg/s
  • Voice Coil Diameter ø 37 mm
  • Voice Coil Winding Height 16 mm
  • Maximum Linear Excursion Xmax +/- 5 m
€ 563,00 Price incl. VAT
