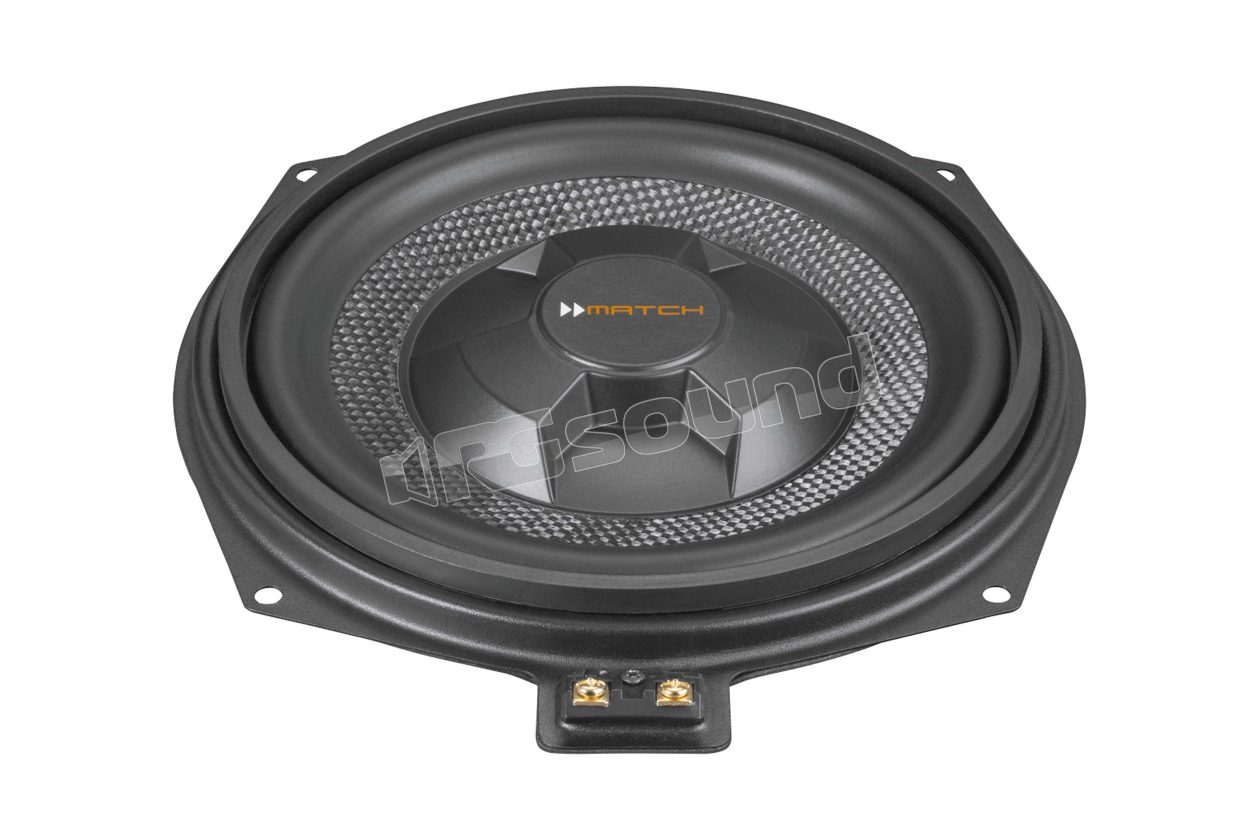

UP W8BMW-S pair of universal 20cm Plug and Play subwoofers for BMW

Match
Your price:
€ 375,00
Price per pair (VAT included)
Available on backorder
Calculating shipping costs to
Type
Subwoofer
Speaker Size
200 mm
MAX Power
400 Watt
RMS Power
200 Watt
Sensitivity
90 dB
Impedance
2 Ohm
Installation Depth
40 mm
Woofer Material
Fibra di vetro

Match UP W8BMW-S pair of 20cm (8") subwoofers with reduced installation depth, Plug and Play BMW

UP W8BMW-S ultra-flat subwoofer sounds extremely dynamic and incisive. Especially the exceptionally rigid fiberglass cone generates maximum sound pressure without distortion.

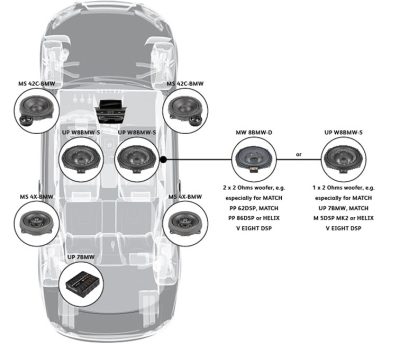

See the table for compatibility with BMW car models.

The basket and connectors specific to BMW allow quick and easy installation in the original mounting positions of all BMW model ranges with subwoofer under the seat. However, this subwoofer is perfectly qualified for universal applications.

Thanks to the very low mounting depth, the extremely compact sealed enclosures are not a problem at all, while the oversized 1.7" / 42.5 mm voice coil ensures high power. With the single coil 1 x 2 Ohm, UP W8BMW-S is the perfect replacement for original subwoofers of the BMW HiFi audio system. Furthermore, it is the perfect companion for the MATCH UP 7BMW and MATCH UP 7DSP amplifier.

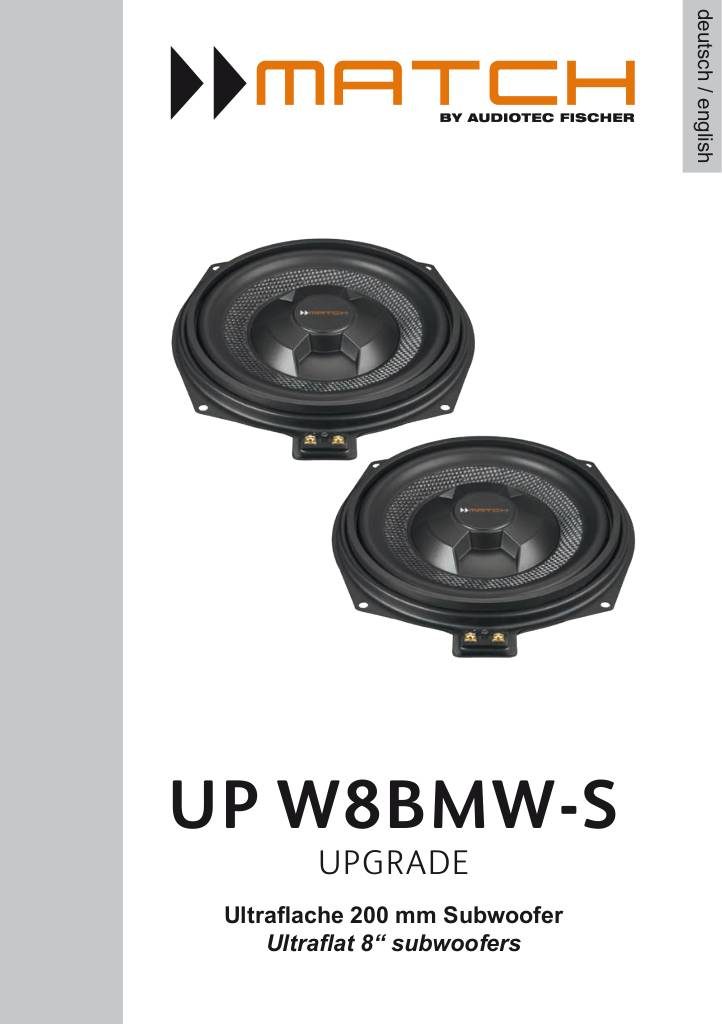

Scheda tecnica

n-20200323161252-ba-up-w8bmw-s.pdf

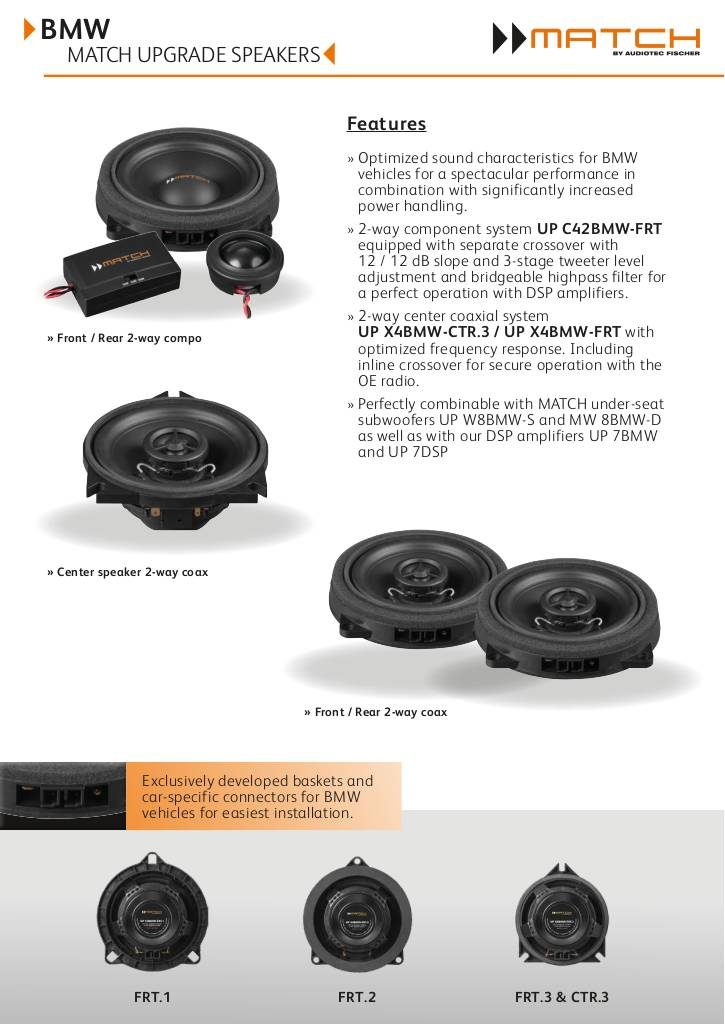

Tabella compatibilità

n-20210412101740-infoflyer-match-bmw-upgrade-speakers-2020-en.pdf

Match UP W8BMW-S technical specifications

RMS / max. power P 200/400 watt
Impedance Z 1 x 2 Ω
DC resistance Re 2.0 Ω
Resonance frequency Fs 49 Hz
Mechanical Q factor Qms 3.80
Electrical Q factor Qes 0.61
Total Q factor Qts 0.53
Compliance Cms 210 µm / N
Equivalent air volume Vas 13.9 L
Force factor B * I 7.1 Tm
Efficiency 1 W / 1 m SPL 90 dB
Cone area Sd 214 cm²
Moving mass Mms 47.4 g
Cone material Extremely rigid fiberglass cone
Mechanical resistance Rms 3.97 kg / s
Voice coil diameter ø 42.5 mm
Voice coil winding height 12.5 mm
Max. linear excursion Xmax +/- 4.0 mm
External diameter ø 239 mm / 9.41 "
Installation diameter ø 175 mm / 6.89 "
Installation depth 40 mm / 1.57 "

Recommended enclosure volumes
Sealed box
Net volume 3 L
Lower limit frequency (-3dB) 63 Hz
DSP settings - Highpass: Butterworth; 12 dB / octave; crossover frequency 40 Hz
- Additional EQ filter: center frequency 90 Hz; Q factor 3.0; gain -4 dB
- Lowpass: Butterworth; 24 dB / octave; crossover frequency 80 - 100 Hz

Ported box For one subwoofer For two subwoofers
Net volume 12 L 24 L
Port diameter ø 60 mm / 2.36 "80 mm / 3.15
Port area 28 cm² 50 cm²
Port length 25 cm / 9.84 "20 cm / 3.94"
Port tuning frequency Fb 46 Hz 46 Hz
Lower limit frequency (-3dB) 45 Hz 45 Hz
DSP settings - Highpass: auto-definition; crossover frequency 40 Hz; Q factor 1.3
- Additional EQ filter: center frequency 67 Hz; Q factor 3.0; gain -3 dB
- Lowpass: Butterworth; 24 dB / octave; crossover frequency 80 - 100 Hz
