ULTIMO PS104D 10" shallow-mount Powerslim subwoofer

Morel
Your price:
€ 663,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Subwoofer
Speaker Size
Other sizes
MAX Power
1800 Watt
RMS Power
700 Watt
Frequency Response
20 - 400 Hertz
Sensitivity
82 dB
Installation Depth
79,6 mm

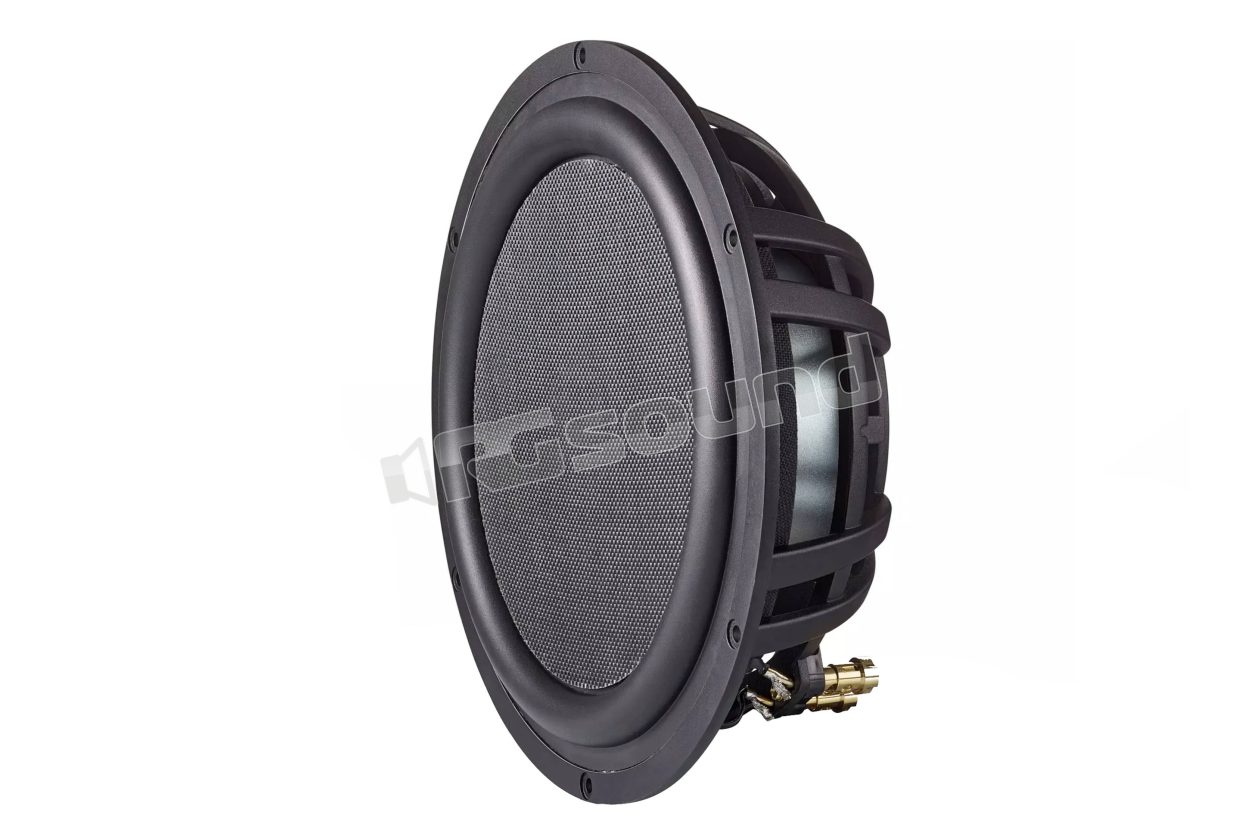

Morel PS104D Ultimo Powerslim - 10" Shallow Mount Subwoofer

The PS104D Ultimo Powerslim subwoofer has a mounting depth of 3.1" (78 mm). This was made possible thanks to the development of the Uniflow die-cast aluminum frame, the exclusive Progressive Field Symmetry (PFS) suspension, HexaCore carbon fiber and the flat piston aluminum honeycomb cone.

These components have been optimized to deliver remarkable excursion for high output in the most compact sizes. The uncompromising design of the Ultimo PowerSlim series redefines the shallow subwoofer category. They deliver everything you expect from bass in almost half the space.

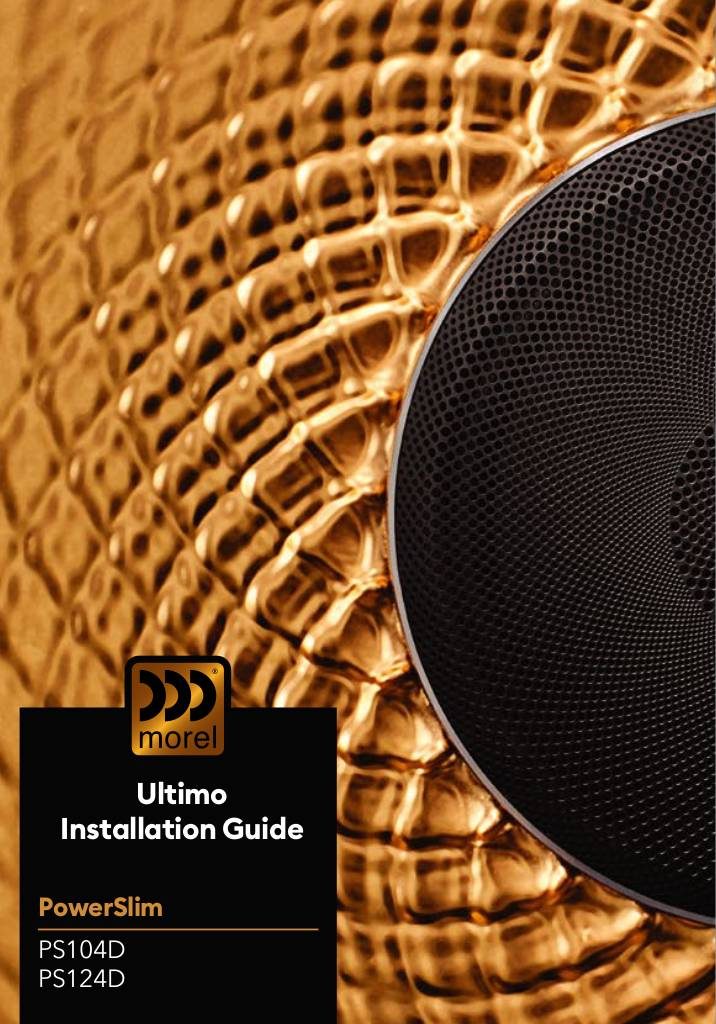

Manuale Utente

n-20240227165714-n-20231207084615-ultimo-powerslim-manual.pdf

Morel PS10D Technical Specifications

  • Overall dimensions 10"
  • Handled power Wrms 700
  • Max. Trans. Handled power Wrms 1800
  • Sensitivity (2.83 V/1M) dB 82
  • Frequency response Hz 20 - 400
  • Resonance frequency Fs Hz 29.1
  • Voice coil diameter mm 51
  • Voice coil height mm 30
  • Voice coil type/Former Aluminum
  • Voice coil wire Aluminum HexatechTM
  • DC resistance (ohm) 1.6
  • Voice coil inductance @1 kHz (mH) 0.5
  • Magnet system Double magnet EV
  • HE-Magnetic Gap Height mm 8
  • Product BL/BXL 8.1
  • Max. Linear Ex./Xmax mm ±8mm
  • Electrical Q factor QES 0.9
  • QTS 0.7
  • QMS 3.6
  • Moving mass MMS - gr/os 203 (7.2)
  • Equiv. Air load of can VAS - L (cu.ft3) 25(0.9)
  • Cone type Flat honeycomb
  • Cone material 4 layers carbon
  • Unit diameter mm 262.6
  • Mounting depth mm 79.6
  • Mounting cut 231.5
  • Net weight gr 4720
€ 663,00 Price incl. VAT
