UG FIAT-FD16 FIAT Ducato III upgrade 2-way front system

ETON
Your price:
€ 239,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
2-way separate kit
Woofer Size
165 mm
Tweeter Size
25 millimetri
MAX Power
90 Watt
RMS Power
60 Watt
Sensitivity
91,5 dB
Impedance
3 Ohm
Tweeter Material
Cupola in seta

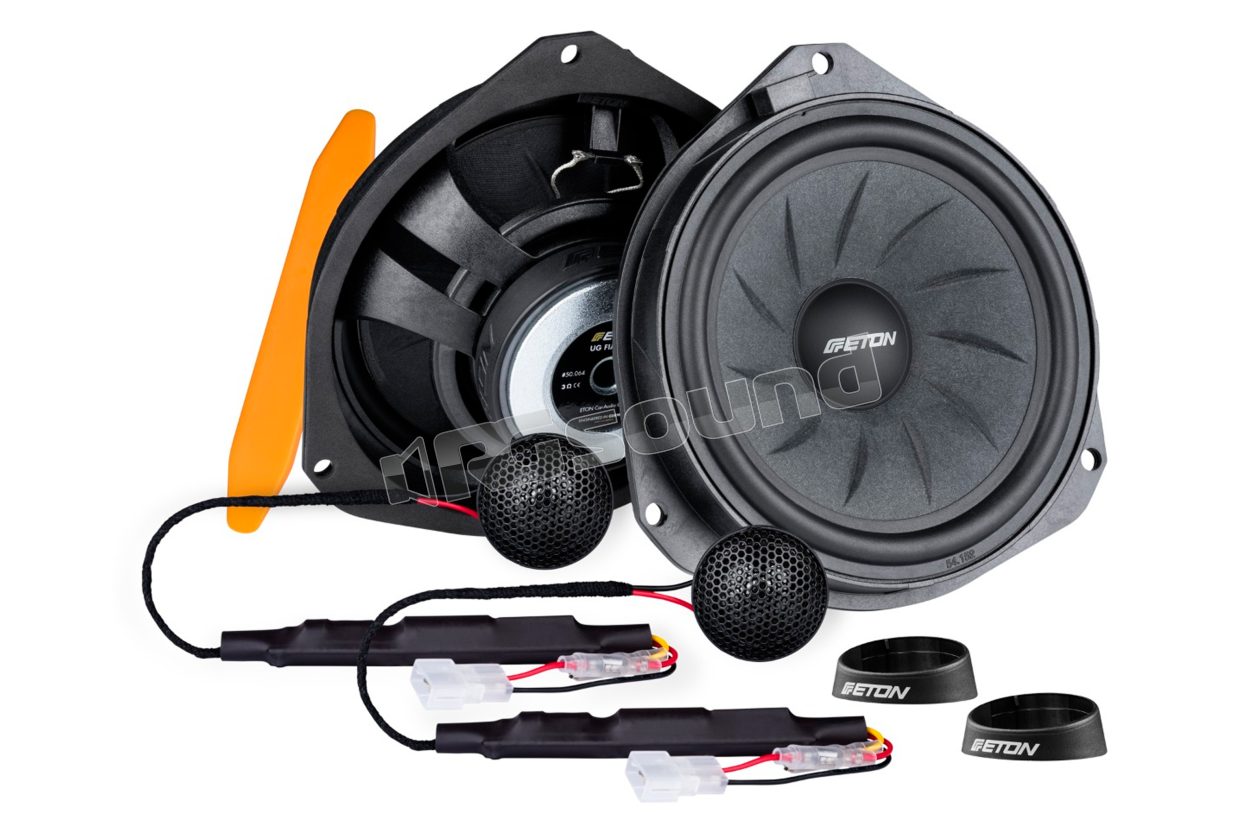

ETON UG FIAT FD16 Plug and Play 165mm 2-way Soundupgrade system for FIAT Ducato III

The newly designed diaphragm, made from a blend of paper and fiberglass, is processed in a special production process and is the optimal guarantee for the best possible sound!

The specially developed fiber blend is stiffened by ribs to create a true high-end cone. Pure performance in combination with the extremely powerful ferrite magnet, for unprecedented dynamics, punch and detail clarity.

The 165 mm (6.5") polyamide basket reinforced with fiberglass, newly designed and revised in ETON's typical dual-post design, not only has a beautiful shape, is absolutely precise and extremely resistant to torsion: thanks to its open structure, it also provides the necessary cooling of the system. Thanks to the 3 ohm voice coil technology and the specially developed woofer design, which does not require a separate woofer crossover, it is also particularly efficient with standard radios! This saves installation time and increases performance. In combination with the 25 mm (1") fabric dome tweeter, the perfect unit. The finest details are reproduced in a silky, soft and non-intrusive manner, optimized for long listening sessions thanks to the easy-to-install tweeter crossover with level adjustment. Of course, both components are equipped with a plug and socket perfectly adapted.

New design ribbed 165 mm fiberglass cone in a polyamide basket reinforced with fiberglass. New dual-post basket design for maximum rigidity and cooling effect. Powerful ferrite magnet with large core hole for optimal cooling. Precision connection terminals and mounting points, as well as integrated sealing flange. Rated power of 60 W RMS / music power of 90 W. Impedance of 3 ohm for maximum efficiency even without an additional amplifier! 25 mm (1") fabric dome tweeter for smooth and detailed high frequency reproduction, matched to the woofer/midrange for long range. Tweeter with high quality cable crossover with level adjustment. 91.5 dB characteristic sound pressure (2.83V/1m). Incl. plastic lever tool and tweeter mounting enclosures. Made in Germany. Suitable for FIAT Ducato III, Citroën Jumper 2, Peugeot Boxer 2, Dodge RamPro Master, Opel Movano and various other models (please consult the current vehicle compatibility list!).

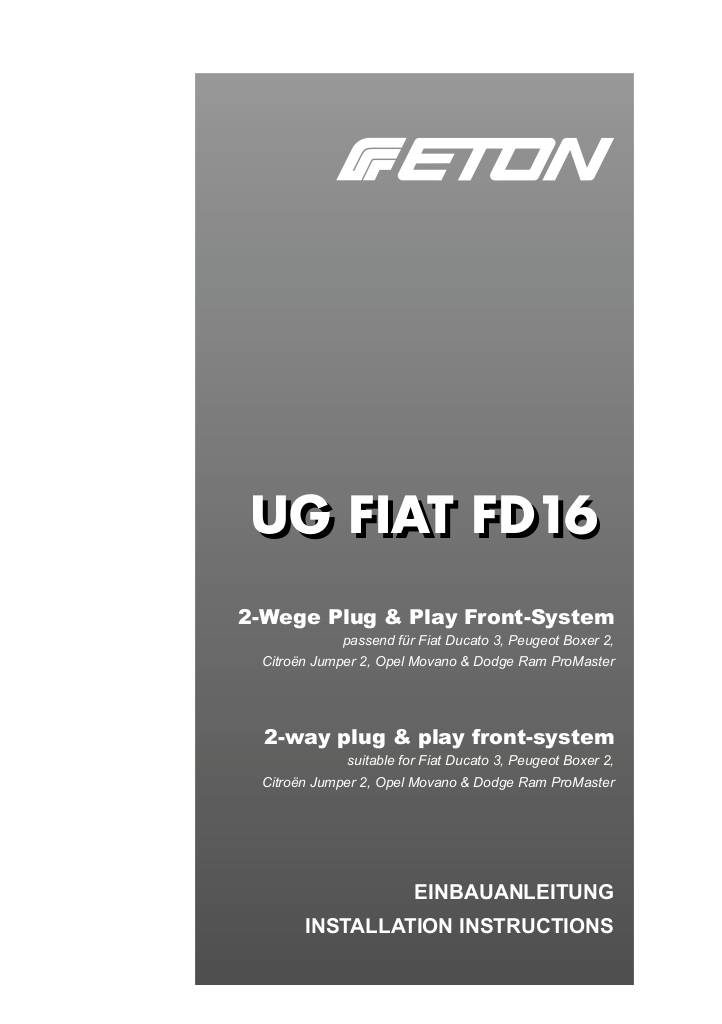

Manuale utente

n-20240723104433-eton-ug-fiatfd16-manual-web.pdf

ETON UG FIAT FD16 technical specifications

  • Tweeter 25 mm (1")
  • Midwoofer 165 mm (6.5")
  • Impedance 3 Ohm
  • Rated power (RMS) 60 W
  • Music power 90 W
  • Sound pressure level 91.5 dB
  • Fiberglass reinforced plastic plug & play basket with connection terminals suited to Fiat factory provisions
  • 25 mm (1") fabric dome tweeter and integrated in-line cross-over with SPL adjustment - Easy plug & play installation
  • Dedicated for FIAT Ducato III, Citroën Jumper 2, Peugeot Boxer 2, Dodge RamPro Master, Opel Movano
€ 239,00 Price incl. VAT
