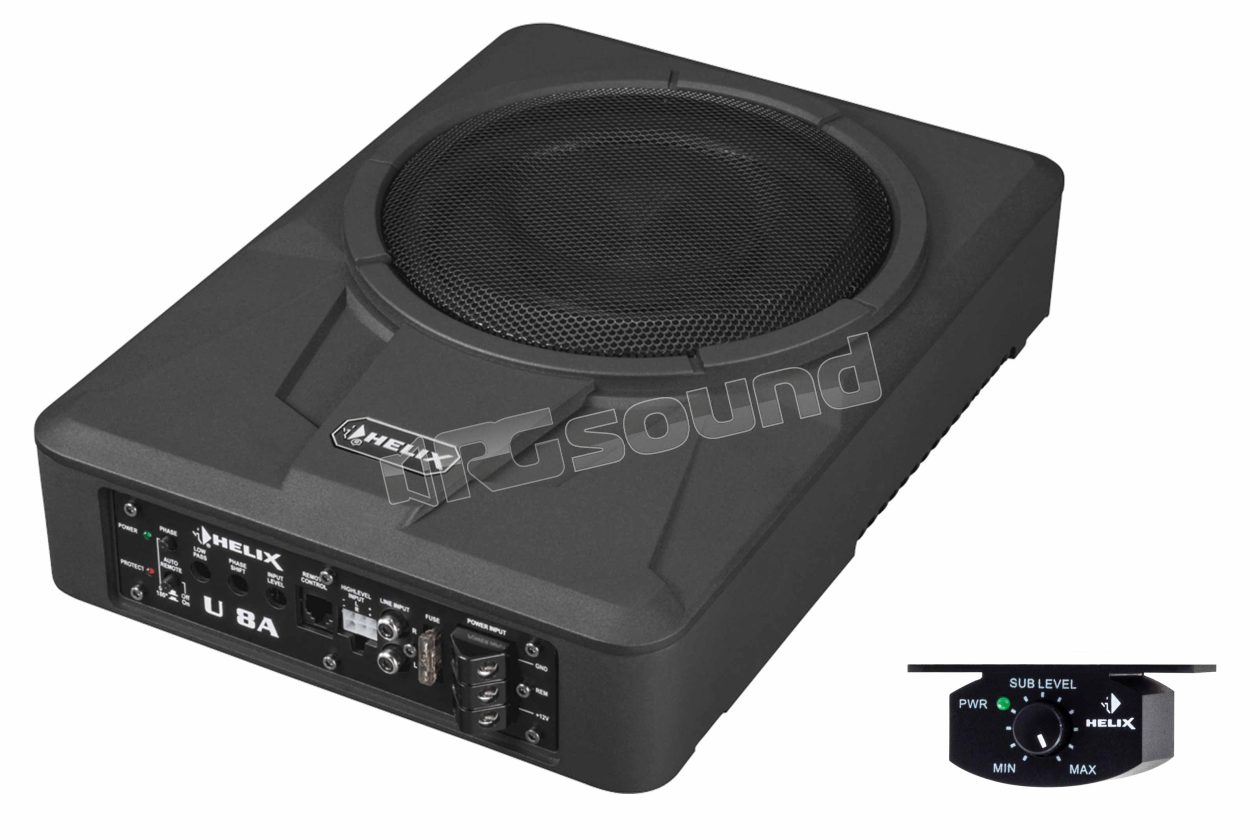

U 8A 8" (20 cm) active subwoofer with ultra-compact dimensions

Helix

Discontinued

Your price:
€ 262,00
Price per single item (VAT included)
Type
Powered subwoofer
Speaker Size
200 mm
MAX Power
360 Watt
RMS Power
180 Watt
Sensitivity
92 dB
Enclosure Size
345 x 245 x 78 mm
Enclosure Type
Sealed Enclosure

Helix U 8A Active 20 cm (8") subwoofer with ultra-compact dimensions

Integrated Class AB amplifier with 180 W RMS power for powerful bass. Robust die-cast aluminum housing with low resonance for precise bass reproduction and optimal heat dissipation. 2-channel high-level input with automatic turn-on function and 2-channel low-level input. Continuously adjustable low-pass filter. Wired remote control for volume adjustment included in the package. Particularly flat housing design - space-saving - ideal for mounting under the seat.

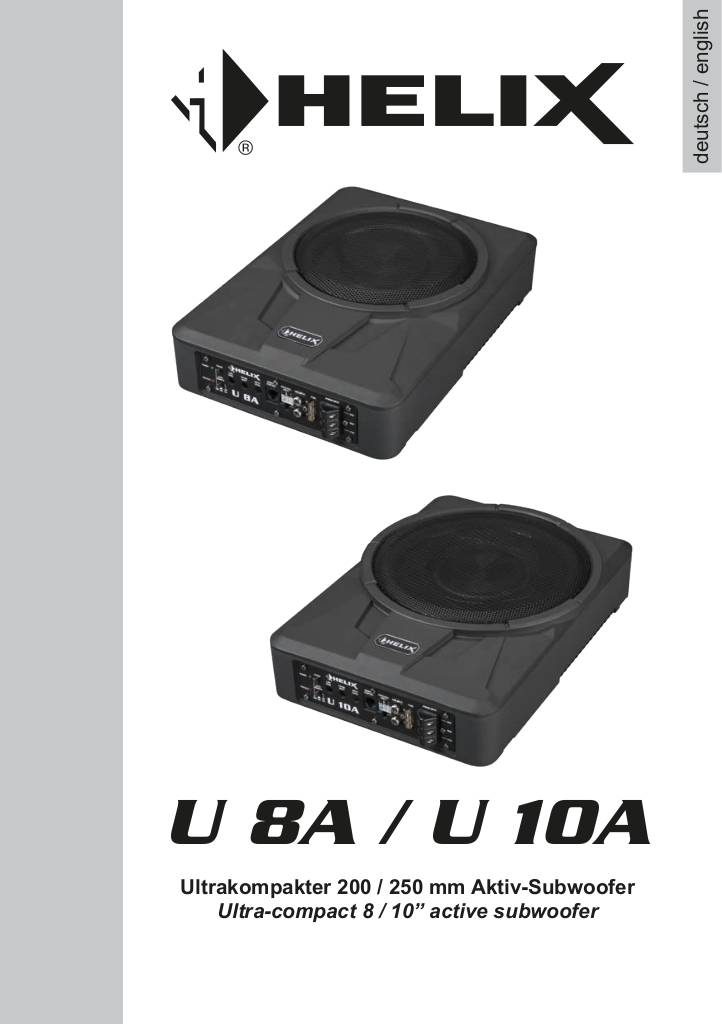

Manuale utente

n-20191107164135-ba-helix-u-aktiv-subwoofer.pdf

Helix U 10A Technical Specifications

  • RMS / max. power 180/360 watts
  • Woofer diameter 8" / 200 mm
  • Inputs 2 x RCA / Cinch
  • 2 high-level speaker inputs
  • 1 x remote input
  • 1 x remote control input
  • Input sensitivity high level 1.2 - 20 volts
  • RCA / Cinch 0.3 - 4 volts
  • RCA / Cinch input impedance 10 kOhm
  • High-level input impedance 33 ohm
  • Frequency response 45 - 150 Hz
  • Lowpass 50 - 150 Hz adjustable
  • Subsonic 16 Hz / 12dB / oct.
  • Phase switch 0° / 180° switchable
  • Phase shift 0 - 180° adjustable
  • Lowpass slope 24 dB / oct.
  • Signal-to-noise ratio > 92 dB (A-weighted)
  • Distortion (THD) < 0.4%
  • Operating voltage 10.5 - 16 volts
  • Fuse Maxi fuse 25 A (APX)
  • Dimensions (H x W x D) 78 x 245 x 345 mm / 3.07 x 9.65 x 13.58"
Discontinued
