U 10A Ultra-compact 25 cm (10") active subwoofer

Helix
Your price:
€ 309,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Powered subwoofer
Speaker Size
250 mm
MAX Power
360 Watt
RMS Power
180 Watt
Sensitivity
92 dB
Enclosure Size
345 x 245 x 78 mm
Enclosure Type
Sealed Enclosure

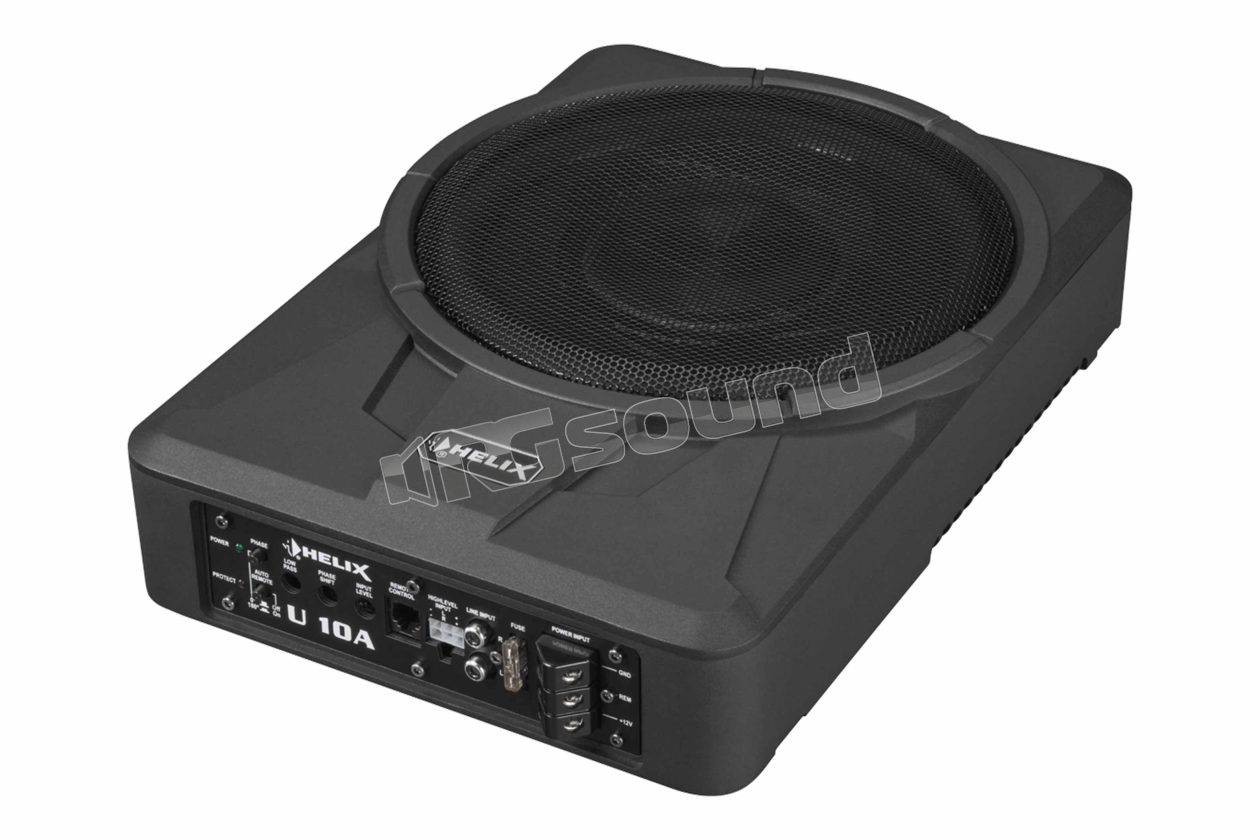

Helix U 10A Active Subwoofer 25 cm (10") with ultra-compact dimensions

Integrated Class AB amplifier with 180 W RMS power for powerful bass. Robust low-resonance aluminum die-cast housing for precise bass reproduction and optimal heat dissipation. 2-channel high-level input with automatic turn-on function and 2-channel low-level input. Continuously adjustable low-pass filter. Wired remote control for volume adjustment included in the package. Particularly flat housing design - space-saving - ideal for installation under the seat.

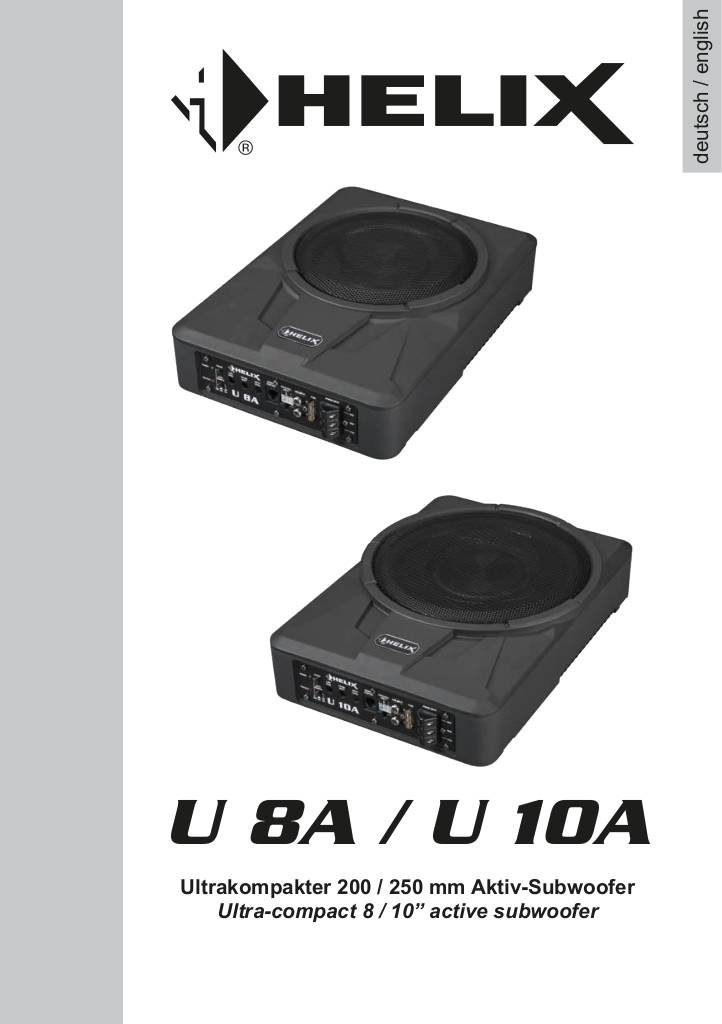

Manuale utente

n-20191107164135-ba-helix-u-aktiv-subwoofer.pdf

Helix U 10A Technical Specifications

  • RMS / max. power 180/360 watt
  • Woofer diameter 10"/250 mm
  • Inputs 2 x RCA / Cinch
  • 2 high-level speaker inputs
  • 1 x Remote input
  • 1 x remote control input
  • Input sensitivity High-level 1.2 - 20 Volt
  • RCA / Cinch 0.3 - 4 Volt
  • RCA / Cinch input impedance 10 kOhm
  • High-level input impedance 33 Ohm
  • Frequency response 40 - 150 Hz
  • Lowpass 50 - 150 Hz adjustable
  • Subsonic 16 Hz / 12dB / oct.
  • Phase switch 0° / 180° switchable
  • Phase shift 0 - 180° adjustable
  • Low-pass slope 24 dB / oct.
  • Signal-to-noise ratio > 92 dB (A-weighted)
  • Distortion (THD) < 0.4%
  • Operating voltage 10.5 - 16 Volt
  • Fuse Maxi fuse 25 A (APX)
  • Dimensions (H x W x D) 78 x 245 x 345 mm / 3.07 x 9.65 x 13.58 "
€ 309,00 Price incl. VAT
