TXS 10

Target Audio

Discontinued

Your price:
€ 99,00
Price per single item (VAT included)

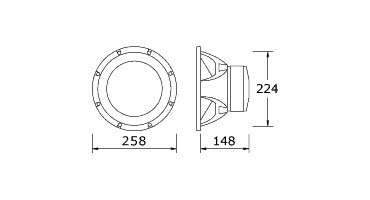

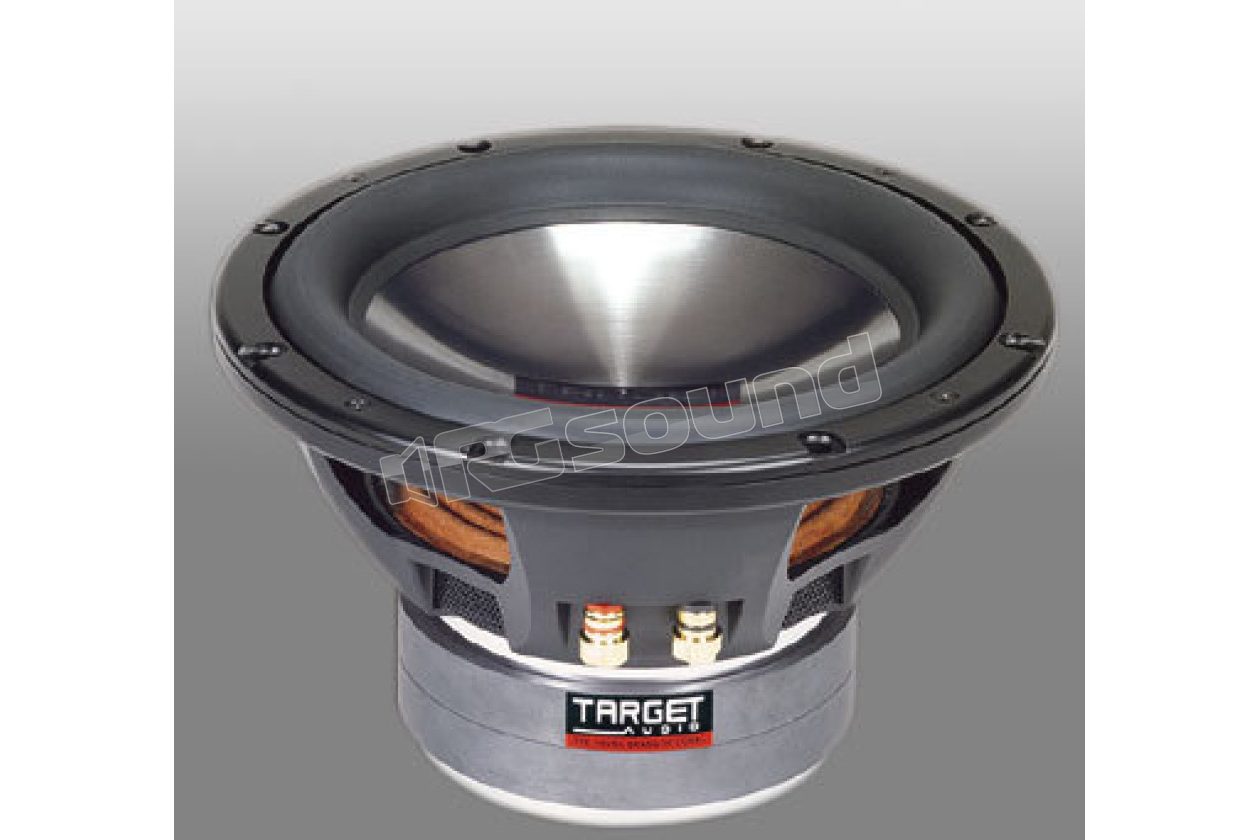

Subwoofer TXS 10, 258 mm diameter, 250 watts nominal power, 500 watts max. Concave cone in polypropylene plated titanium color, aluminum die-cast basket, butyl rubber surround, chrome plated pole pieces, screw terminals.

Used product on shop display, played very little and at low levels. Speaker absolutely perfect, rgsound 6 months warranty.

TECHNICAL DATA:

nominal impedance (Zn): 4 ohm
nominal power (Pn): 250 watt
max power (Pm): 500 watt
sensitivity (2.83 V/1 m): 90 dB
frequency range (BW): 35÷2000 Hz
resonance frequency (Fs): 38 Hz
voice coil diameter: 65 mm
cone material: polypropylene
surround material: butyl rubber
basket material: alumin. die cast
magnet material: ferrite

mechanical Q factor (Qms): 2.98
electrical Q factor (Qes): 0.58
total Q factor (Qts): 0.43
moving mass (Mms): 79.7 g
compliance (Cms): 0.22 mm/N
equivalent volume (Vas): 32 litres
force factor (BxL): 10.4 N/A
voice coil resistance (Re): 3.3 ohm
voice coil inductance (Le): 0.4 mH
emission diameter (D): 202 mm
linear excursion (Xmax): ± 8 mm

Progetto Box

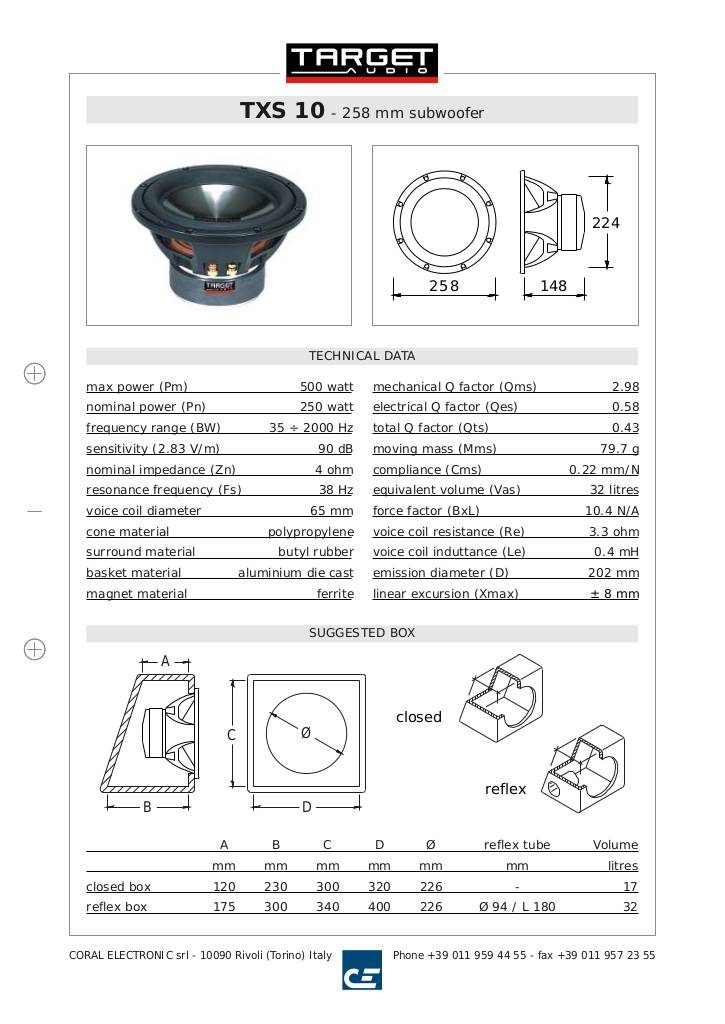

20061020161957-txs-10.pdf
