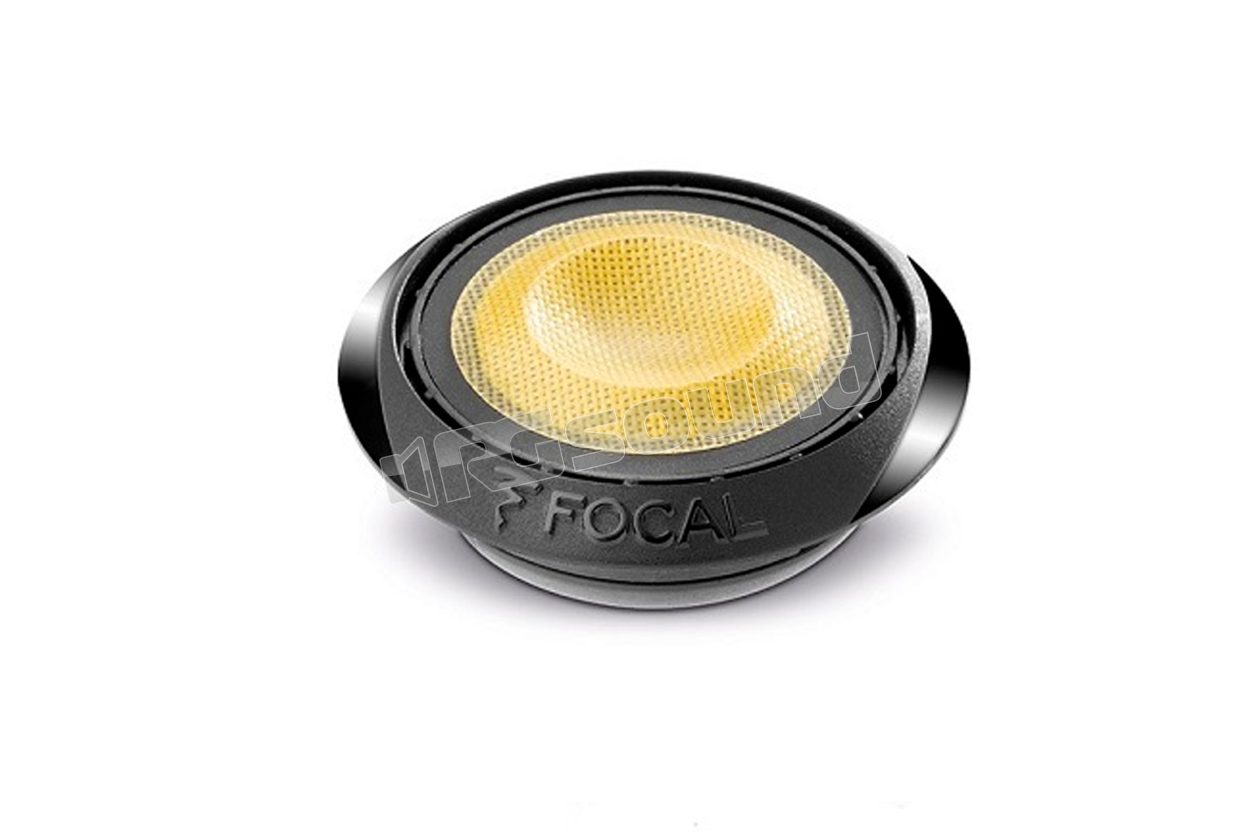

TWVE1025 single TKM tweeter, K2 Power series

Focal

Discontinued

Your price:
€ 89,90
Price per single item (VAT included)
Type
Tweeter
Dome Size
20 mm
MAX Power
100 Watt
RMS Power
15 Watt
Frequency Response
2.000 - 30.000 Hertz
Sensitivity
92 dB
Impedance
4 Ohm
Outer Diameter
52 mm
Installation Depth
11 mm
Tweeter Material
Kevlar

Focal TWVE1025 single tweeter K2 POWER TKM.

Used in ES165K speaker systems.

The inverted dome tweeter in aramidic fiber with "M" profile is designed to increase precision at very high frequencies.
The push-pull motor also dampens acoustic resonances on the back of the membrane and extends the low end of the frequency response.

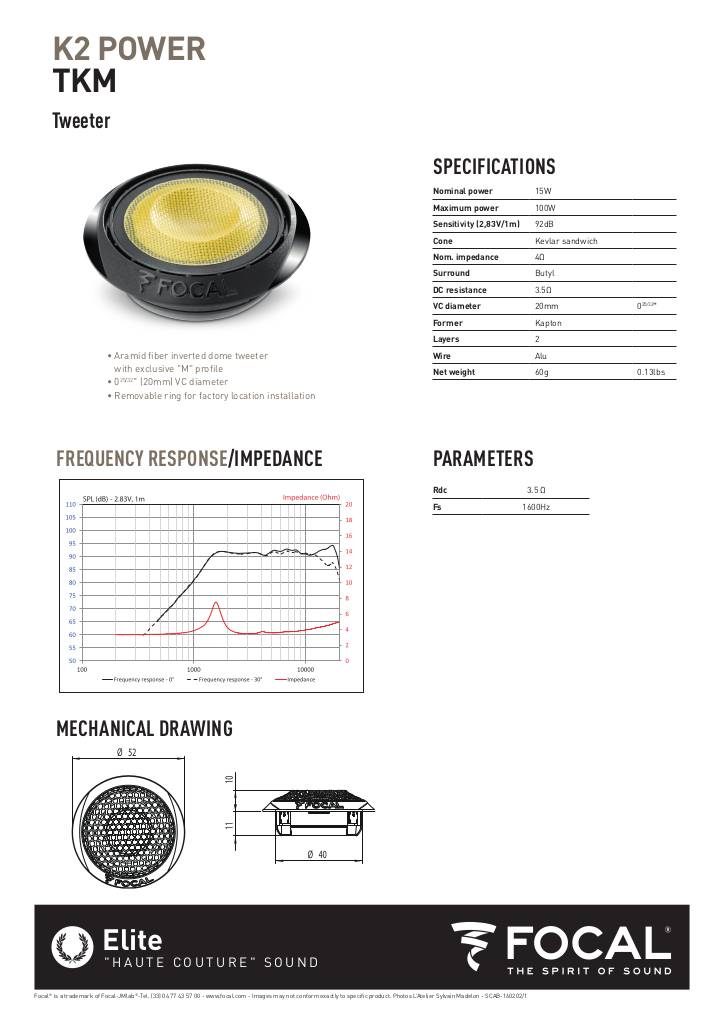

Scheda tecnica

n-20230904143257-tweeter-tkm-technical-sheet.pdf

FOCAL TWVE1025 (TKM) technical specifications

Rated power 15W
Maximum power 100W
Sensitivity (2.83V/1m) 92dB
Kevlar sandwich cone
Nominal impedance 4Ω
Butyl surround
DC resistance 3.5Ω
VC diameter 20mm 025⁄32"
Ex Kapton
Layers 2
Alu wire
Net weight 60g 0.13lbs
Rdc 3.5 Ω
Fs 1600hz

Discontinued
