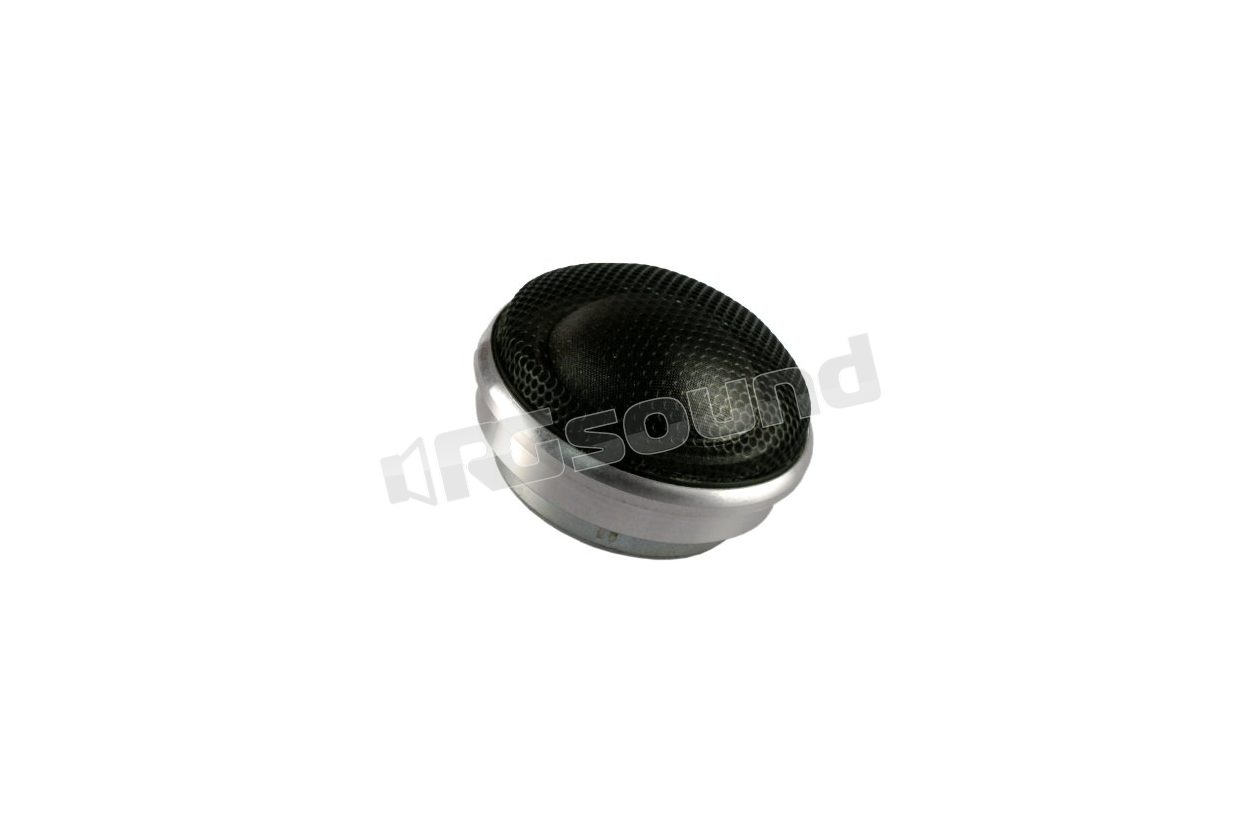

TW32

Proaudio

Discontinued

Your price:
€ 157,30
Price per pair (VAT included)
Type
Tweeter
Dome Size
32 mm
MAX Power
200 Watt
RMS Power
100 Watt
Frequency Response
2200 - 20000 Hertz
Sensitivity
93 dB
Impedance
6 Ohm
Outer Diameter
45 mm
Installation Depth
16 mm
Tweeter Material
seta trattata

32mm dome tweeter - Efficiency: 93dB

Technical Features TW 32:

Housing: Two sections: glass-filled ABS, aluminum machined from solid.
Magnet: Neodymium.
Coil: Copper, 32mm diameter, aluminum alloy support.
Suspension: Silk.
Dome: Silk treated with low viscosity damping.
Power handling: 100Watt RMS | 200Watt Max.
Impedance: 6 ohm
Efficiency: 93dB


Acoustic Features:

Lightness and undeformability are at the origin of the extraordinary wealth of details of the TW32. It is able to reproduce almost imperceptible particulars, sensitive and prompt, it responds with unsurpassed naturalness even to the most complex transients. It surprises, both for the correctness and the elegance of the timbre, it has an innate ability to reconstruct the sound scene respecting the originality of the sound planes and every stereophonic complexity. Linear down below the kHz, it maintains virtually unchanged response even outside the perpendicular listening axis. Excellent power handling, unusual for tweeters of this size: if properly amplified and filtered, it exceeds the 100W threshold without yielding to any distortion.

Installation tips:

TW32 is a versatile transducer, the mechanics of the dome and the response characteristics make it suitable for installations on and off the listening axis. On the pillars, directed towards the center-roof of the vehicle expresses all the audiophile potential: in this position it is capable of reconstructing the stereophonic scene like no other competitor in the same price range. Excellent in 2-way systems plus Sub.

In passive: we recommend High-Pass 6dB@3000Hz (as a good soloist, it does not need particular compensations). If you really want to squeeze it, with 18dB@2200Hz it offers an excellent average to pair it also with the WF165.

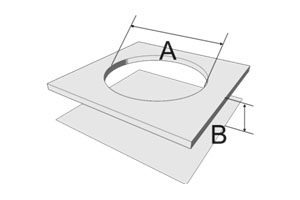

Installation dimensions: TW32 A: 45mm, B: 16 (including terminals)

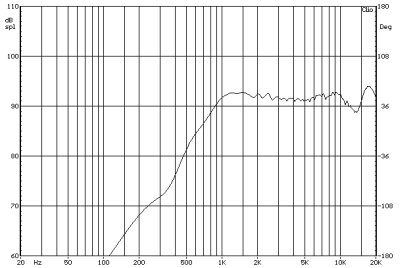

Frequency Response Chart

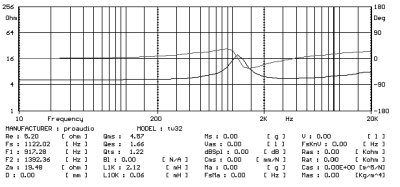

Impedance Chart

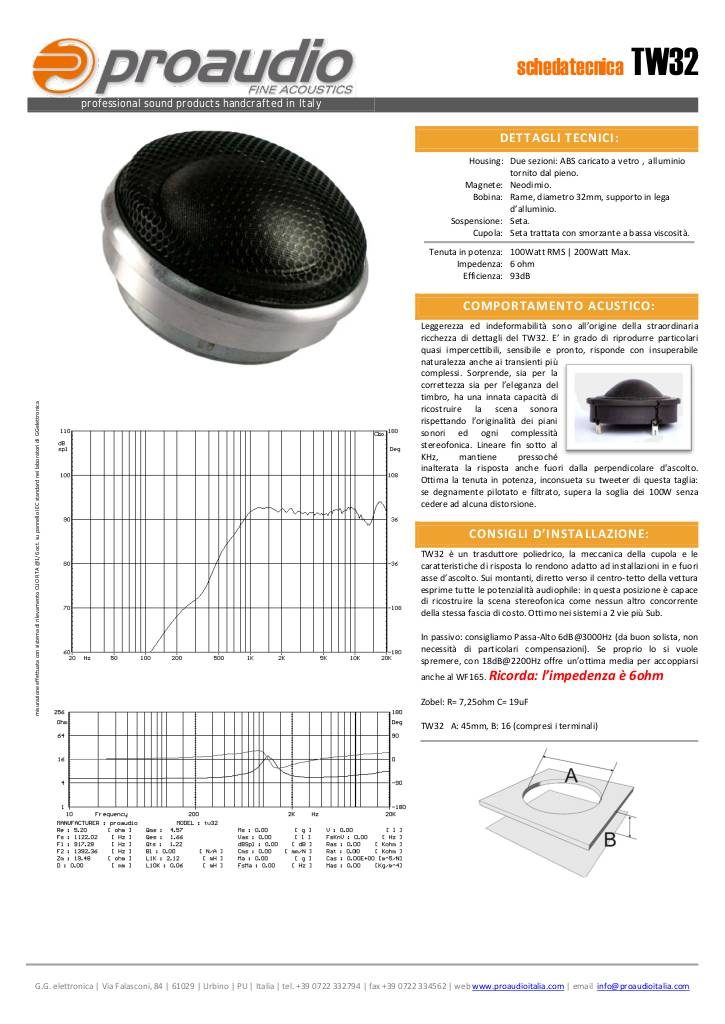

scheda tecnica - specifiche - grafico

20080912121250-tw32.pdf
Discontinued
