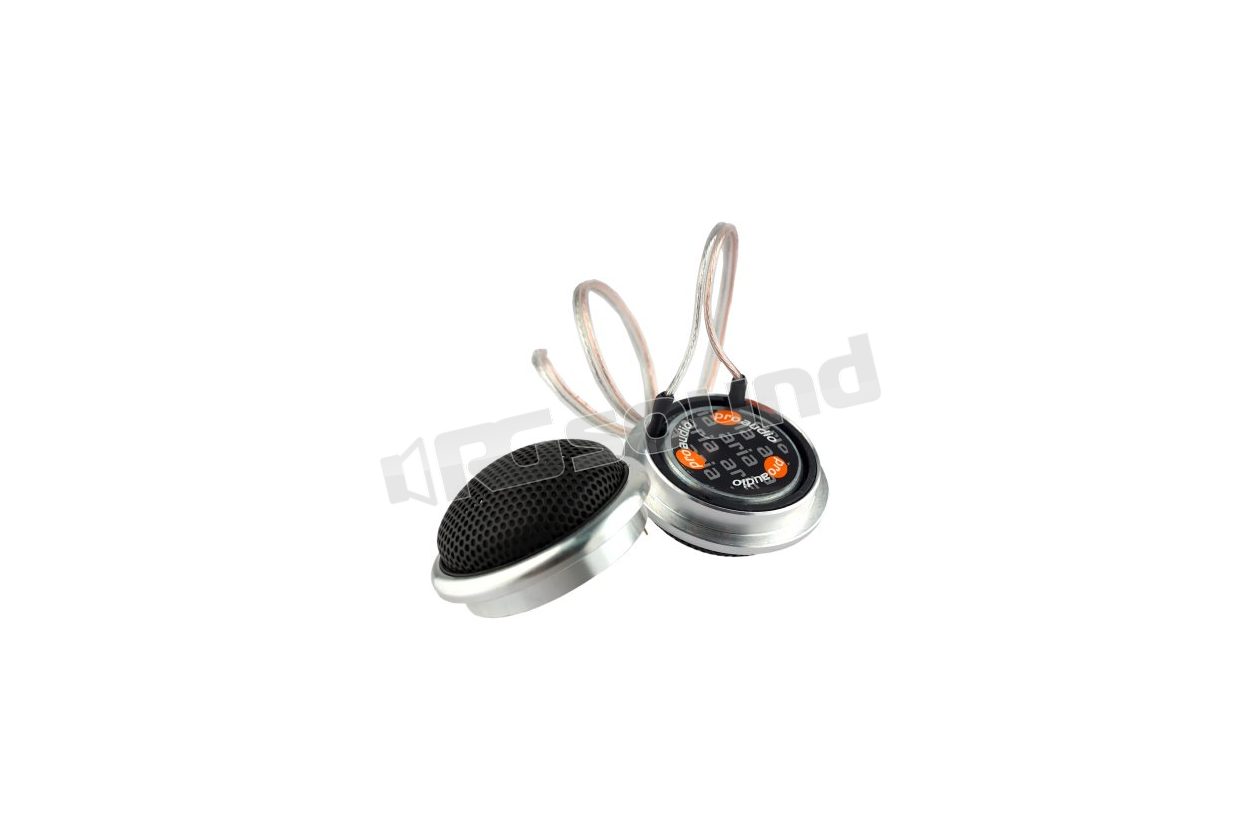

TW26

Proaudio

Discontinued

Your price:
€ 92,80
Price per pair (VAT included)
Type
Tweeter
Dome Size
26 mm
MAX Power
160 Watt
RMS Power
80 Watt
Frequency Response
1000 - 20000 Hertz
Sensitivity
91 dB
Impedance
6 Ohm
Outer Diameter
40 mm
Installation Depth
100 mm
Tweeter Material
seta trattata

26mm dome tweeter - Efficiency: 91dB

Technical specifications TW 26:

Housing: Two sections: glass-filled ABS, machined aluminum
Magnet: Neodymium cooled with ferrofluid
Voice coil: Copper, 26mm diameter, aluminum alloy support
Suspension: Silk
Dome: Silk treated with low-viscosity damping
Power handling: 80Watt RMS | 160Watt Max.
Impedance: 6 ohm
Efficiency: 91dB


Acoustic characteristics:

Thanks to the diaphragm structure (catenary profile), the weight of the mobile assembly is reduced to the essential: lightness and rigidity are at the origin of the extraordinary wealth of details of the TW26. It is able to reproduce almost imperceptible details, sensitive and responsive, it responds with unparalleled naturalness even to the most complex transients. It surprises, both for the correctness and elegance of timbre, it has an innate ability to reconstruct the soundstage respecting the originality of sound planes and every stereophonic complexity. Linear down to the KHz, it maintains virtually unchanged response even outside the perpendicular listening angle. Excellent power handling, unusual for tweeters of this size: if properly driven and filtered, it exceeds 100W threshold without yielding to any distortion.

Installation advice:

TW26 is a versatile transducer, the dome mechanics and response characteristics make it suitable for installations in and off the listening axis. On the pillars, directed toward the center-roof of the vehicle, it expresses all audiophile potential: in this position it is able to reconstruct the stereophonic soundstage like no other competitor in the same price range. Excellent in 2-way systems plus Sub, delightful when paired with MD87neo with the new Aria X2-02 filter. In passive: we recommend High-Pass 6dB@4000Hz (as a good soloist, it does not require particular compensations). If you really want to push it, with 18dB@2700Hz it offers an excellent average to pair also with WF165.

Remember: the impedance is 6ohm.

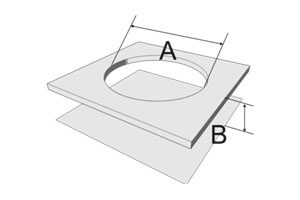

TW26 installation dimensions A: 40mm, B: 10 (including terminals)

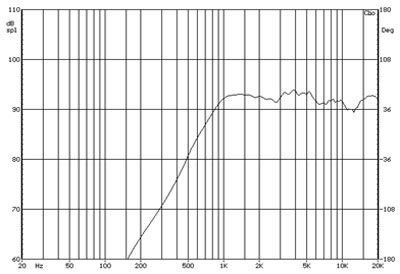

Response graph

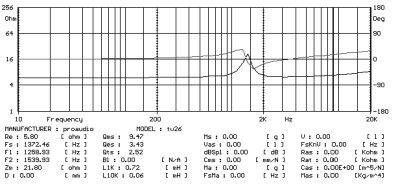

Impedance graph


scheda tecnica - specifiche - grafico

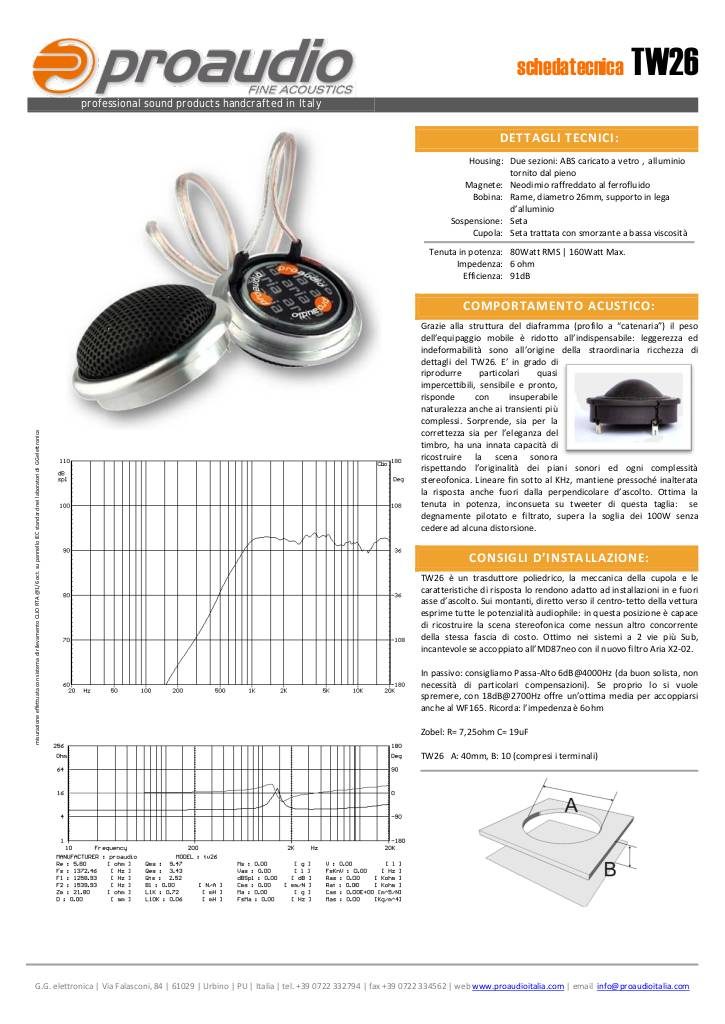

20080912124324-tw26.pdf
Discontinued
