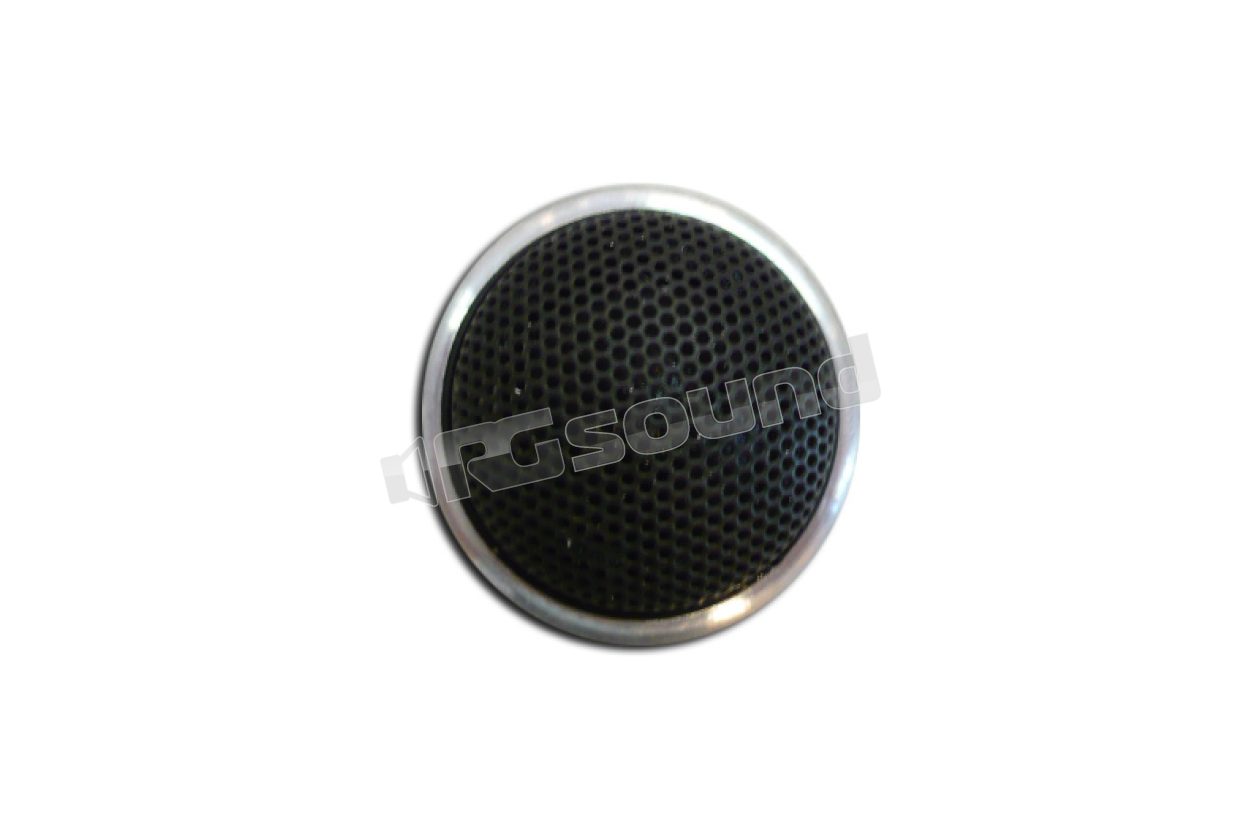

TW 25 high-performance tweeter

Silence Lab

Discontinued

Your price:
€ 127,10
Price per pair (VAT included)
Type
Tweeter
Dome Size
25 mm
RMS Power
75 Watt
Sensitivity
90 dB
Impedance
5,7 Ohm
Outer Diameter
46 mm
Installation Depth
16 mm
Tweeter Material
Neodimio cupola in seta

The TW 25 is a high-performance tweeter.
The dome membrane is silk with a catenary profile, the magnet is neodymium, the flange has a particular profile that applies a slight acoustic load to the dome emission, to regularize its off-axis emission.


This particular feature gives a linear response free of colorations with high attention to detail.

Performance

Re ohm 5.7
Fs Hz 1500
Qm 1.25
Qe 2.20
Qt 0.80
Vas
Xmax +/- mm 0.25
D
Mms
Cms
B*l
Le mH 0.40
Sens dB 90
Pn Watt 75
Bob mm 25
Kg 0.065

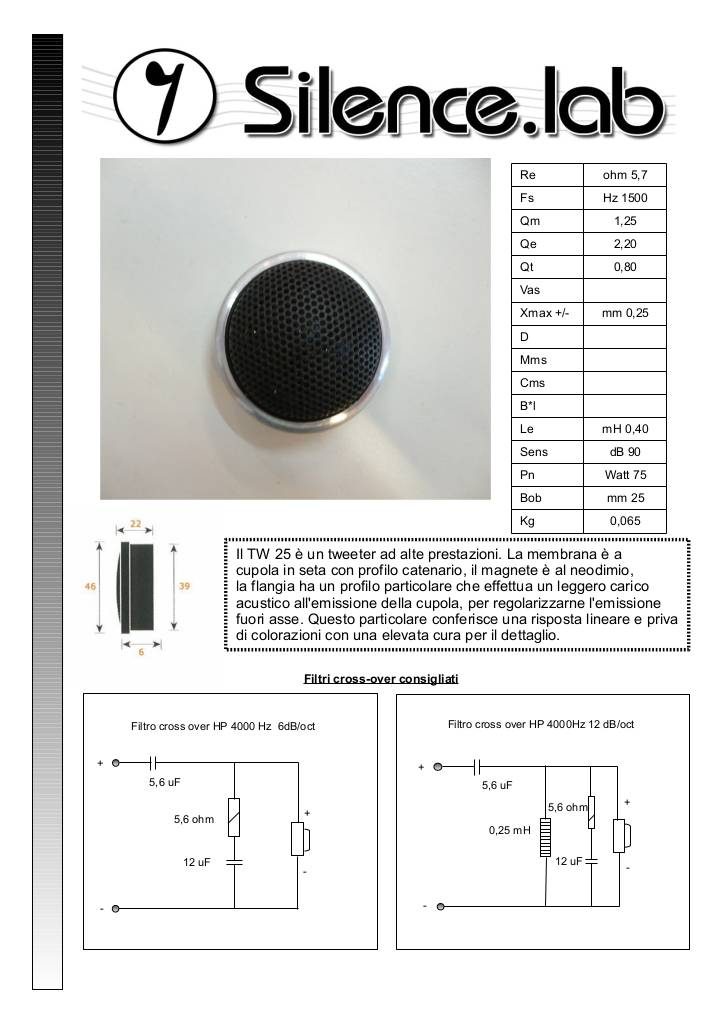

TW25 scheda

20120118184620-data-tw25.pdf
Discontinued
