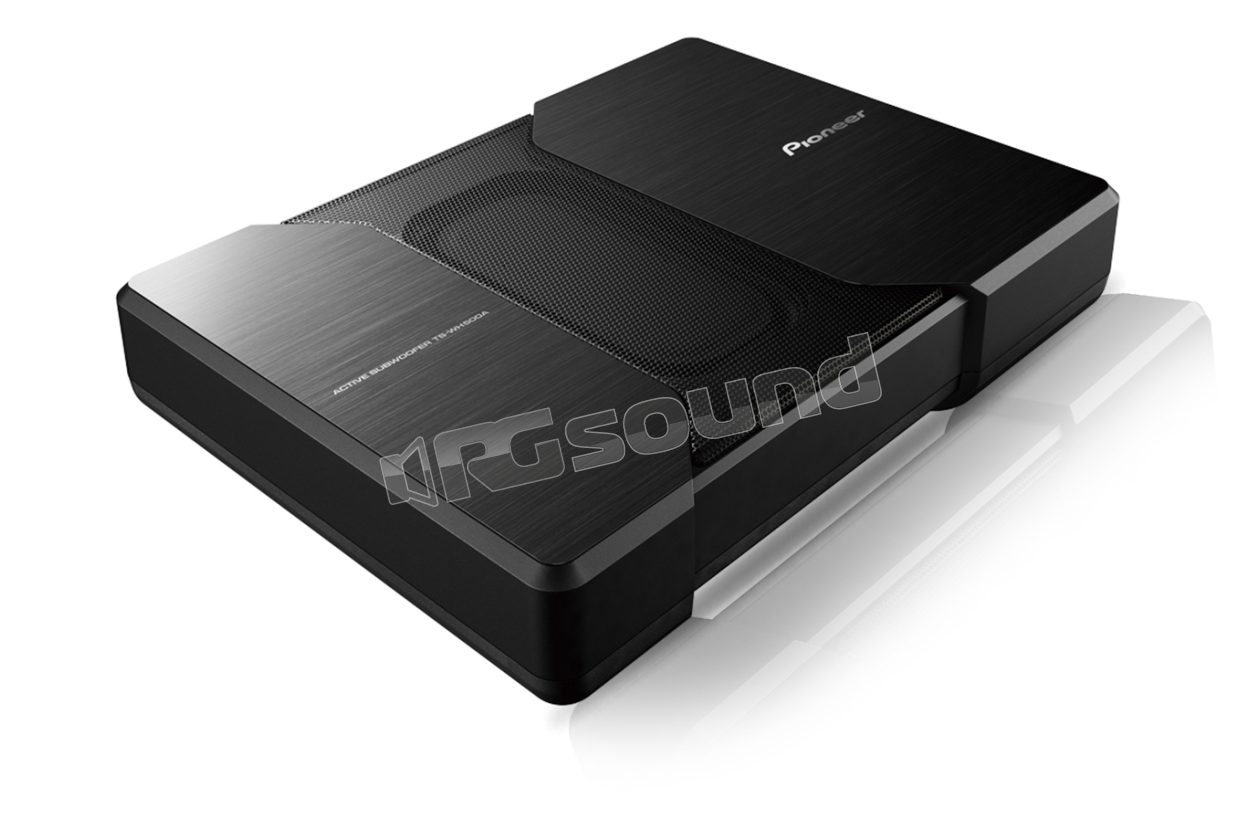

TS-WH500A ultra-compact HVT sub

Pioneer

Discontinued

Your price:
€ 269,60
Price per single item (VAT included)
Type
Powered subwoofer
Speaker Size
Other sizes
MAX Power
150 Watt
RMS Power
50 Watt
Enclosure Size
340 x 60 x 250 mm
Enclosure Type
Sealed Enclosure

Pioneer TS-WH500A active subwoofer with horizontal-vertical technology, max power 150W. Powerful bass in an ultra-compact subwoofer.


The slim TS-WH500A is equipped with an integrated 150 Watt MOSFET amplifier delivered through the woofer with aluminum cone. With the innovative horizontal vertical transforming technology (Horizontal Vertical Transforming, HVT), which generates vertical vibrations through a horizontal driving force, this subwoofer produces a wide range of authentic and clear bass for any type of music.

TS-WH500A Features

Maximum power 150 W
Nominal input power 50 W
Built-in amplifier MOSFET Amplifier
Dimensions 340 x 60 x 250 mm

HVT Technology
Horizontal Vertical Transforming (HVT) technology represents a pioneering approach to speaker design. The linkage mechanism, truly unique, changes the way the speaker works, bringing significant advantages over traditional speaker designs, both in terms of size and sound.

Reduced noise
This subwoofer is equipped with dual motors and diaphragms, which ensure perfect symmetry of voice coil and diaphragm movement, canceling unwanted vibrations. In this way, vibrations are not transmitted to the vehicle body, resulting in clear bass.

Flexible installation

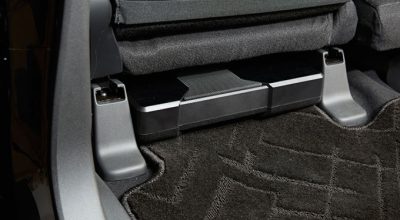

The narrow construction of the TS-WH500A model allows you to install this subwoofer in many places, for example in the trunk or under the passenger seat, without compromises to sound performance. Furthermore, it is suitable for a wide range of cars.

Manuale di installazione

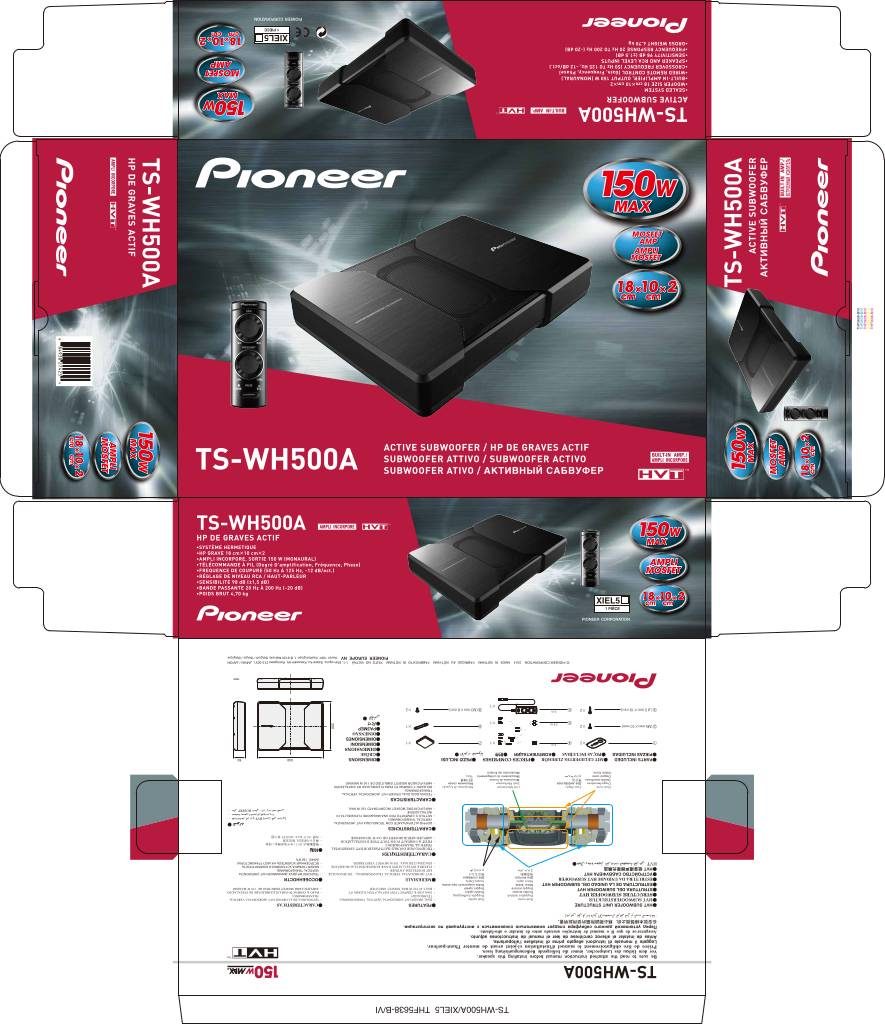

n-20180227142236-ts-wh500a-installation-manual-en-fr-de-it-pt-ru-es.pdf

Manuale di installazione

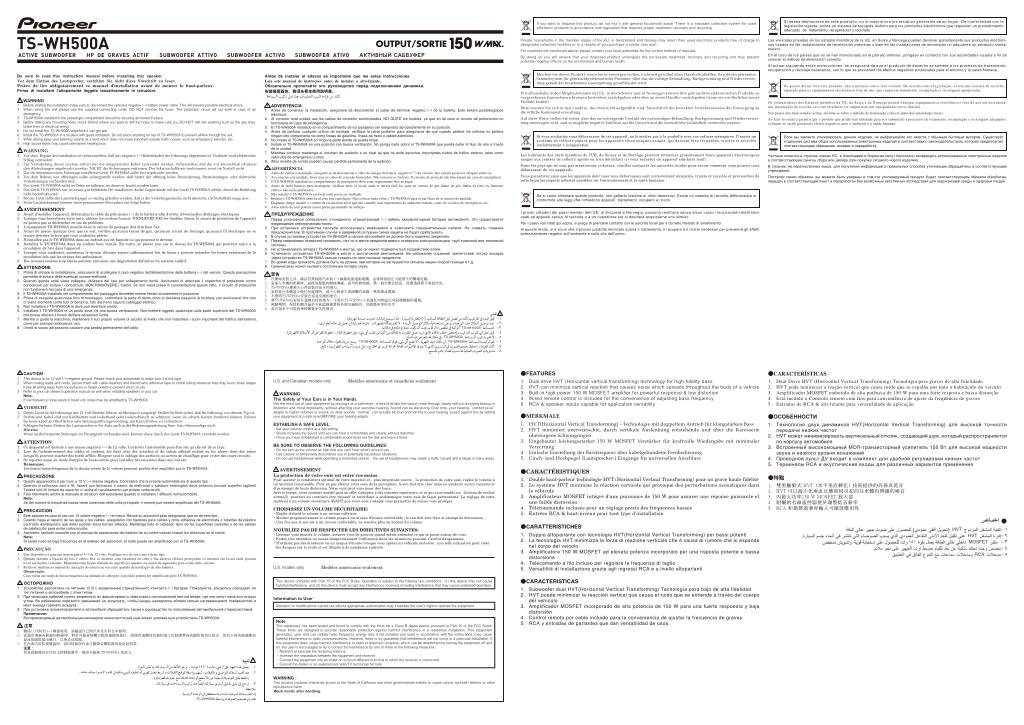

n-20180227142632-ts-wh500a-manual-en-fr-de-it-pt-ru-es.pdf
