TS-W32D4

Pioneer
Your price:
€ 129,10
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Subwoofer
Speaker Size
300 mm
MAX Power
1500 Watt
RMS Power
400 Watt
Frequency Response
22 - 1600 Hertz
Sensitivity
90 dB
Impedance
4 + 4 Ohm
Weight
3,8 Kg
Installation Depth
163 mm
Woofer Material
Cono IMPP

Pioneer TS-W32D4 subwoofer 30 cm / 12" Champion series, power 1500 W max / 400 W RMS, dual voice coil (DVC) impedance 4 Ohm

Deeper and more powerful bass: seamless cone in high-rigidity IMPP composite with honeycomb structure. Large magnets in dual row and long voice coil with aluminum coil.

Robust and resistant structure: steel basket design recently optimized to decentralize the load of the heavy motor assembly and guarantee precise cone movement. Lower part of the basket firmly closed for reliable bass reproduction.

  • Diameter: 30 cm
  • Maximum input power: 1500 W
  • Nominal input power: 400 W
  • Impedance: 4 Ω dual voice coil (DVC)

Scheda tecnica

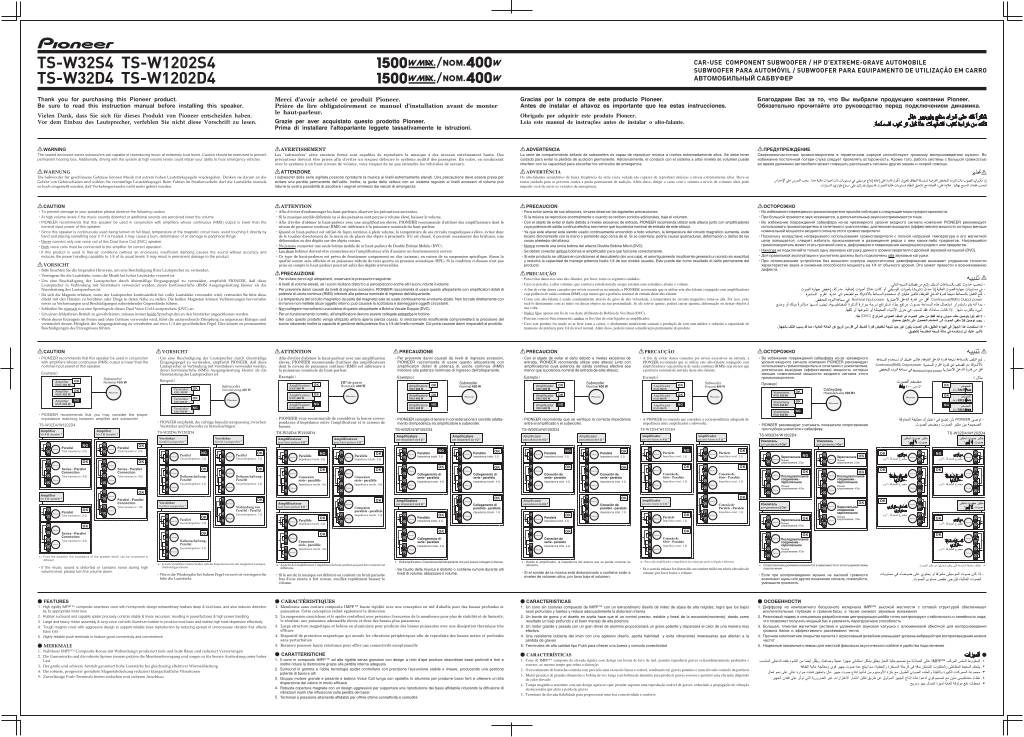

n-20260316100012-trd1502b-ts-w32d4.pdf

Pioneer TS-W32D4 technical specifications

  • Frequency response: 22 Hz - 1600 Hz
  • Impedance: 4 Ω dual voice coil (DVC)
  • Maximum input power: 1500 W
  • Nominal input power: 400 W
  • Sensitivity: 90 dB
  • Series: Others
  • Diameter: 30 cm
  • Dimensions: 318 mm x 163 mm
  • IMPP™ composite cone:
  • Magnets: Ferrite
  • Woofer material: IMPP™
  • Mounting hole: 281 mm
  • Mounting depth: 146 mm
  • Recommended acoustic enclosure (ft³/liters): 1.25 / 35.4
  • Speaker grille: Not included
  • Weight: 3.82 kg
€ 129,10 Price incl. VAT
