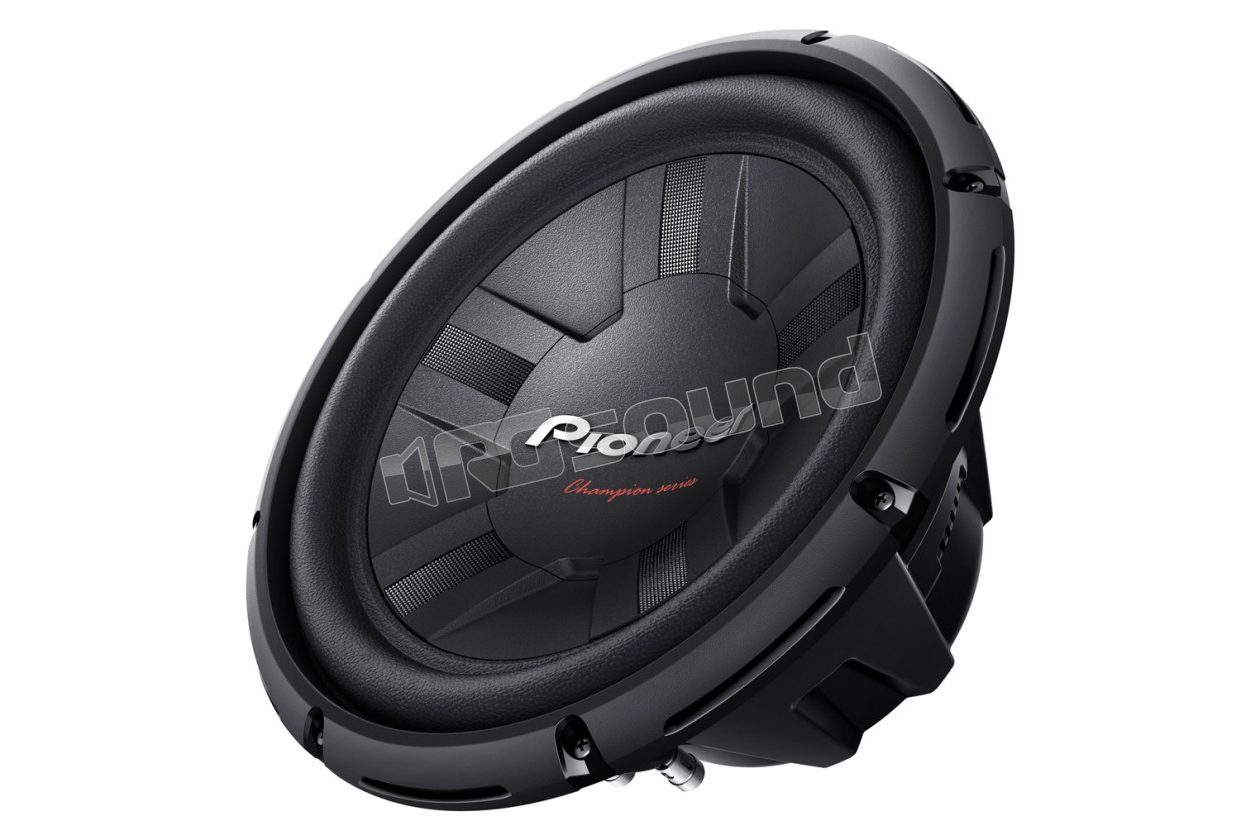

TS-W311S4

Pioneer

Discontinued

Your price:
€ 119,00
Price per single item (VAT included)
Type
Subwoofer
Speaker Size
300 mm
MAX Power
1400 Watt
RMS Power
400 Watt
Frequency Response
20 -125 Hertz
Sensitivity
95 dB
Impedance
4 Ohm
Weight
6,1 Kg
Installation Depth
151 mm
Woofer Material
IMPP

TS-W311S4 Subwoofer 30 cm from enclosure with single coil 4Ω. Max power 1400W

3D molded IMPP cone
Designed to last long, this subwoofer features a durable 3D molded injection-molded polypropylene (IMPP) cone that makes the body ultra-rigid yet lightweight, giving you powerful bass with minimal distortion.

Fully enclosed basket
This subwoofer boasts a fully enclosed basket to reinforce the frame and increase its transient response, resulting in more accurate and tight sound.

Independent spiders
Unlike normal subwoofers, this one features an independent spider housing that improves air flow. Temperature and vibrations are minimized, while maximum response ensures high quality sound, even at high input volume levels.

Features TS-W311S4
Maximum power 1400 W
Rated input power 400 W
Impedance 4Ω
Frequency response 20 - 125 Hz
Lower resonance frequency (Hz) 42 Hz
Sensitivity (1W/1m) 95 dB
Woofer size 30 cm
Woofer material IMPP composite cone
Voice coil type Copper, 4 layers
Voice coil bobbin Aluminum
Pole yoke type Extended and ventilated pole yoke
Magnets Ferrite (dual)
Terminals Push type
Screw terminals 8
Dimensions 326.6 x 168.5 mm
Weight 6.1 kg
Cutout with hole 283 mm
Mounting hole 151 mm
Perimeter surround Dual-layer fiber-reinforced elastic polymer perimeter surround
Thiele/Small Parameters TS-W311S4
Dia. nom. (In) 30
Qts 0.79
Qms 14.96
Qes 0.84
Fs [Hz] 42
Vas [l] 37.5
Vas [ft3] 1.32
Vd [l] 0.42
Vd [ft3] 1.32
Sd [m2] 0.0147
Sd [ft2] 0.052
Revc [Ω] 3
Levc [mH] (2000Hz) 2.87
Xmax [mm] 8
Xmax [in] 0.3
Zmax [Ω] 47.27
BI [Tm] 13
Rms[Ns/m] 2.88
Mms [g] 164
Cms [m/N] 8.7 x 10-5
Mg.Wt.[g] 2100
Flux density [Gauss] 6926
Hag [mm] 10
Hag [In] 0.39
Hvc [mm] 26
Hvc [In] 1.02
VC diameter [mm] 48
Eff [%] 0.29
S.P.L. [dB] 95
R.M.S. Power [W] 400
M.M.P. [W] 1400
Displacement [l] 1.67
Displacement [ft3] 0.059
Recommended enclosure [l] 35.38
Recommended enclosure [ft3] 1.25
F0 (in cabinet) 55.7
Q0 (in cabinet) 1.09
