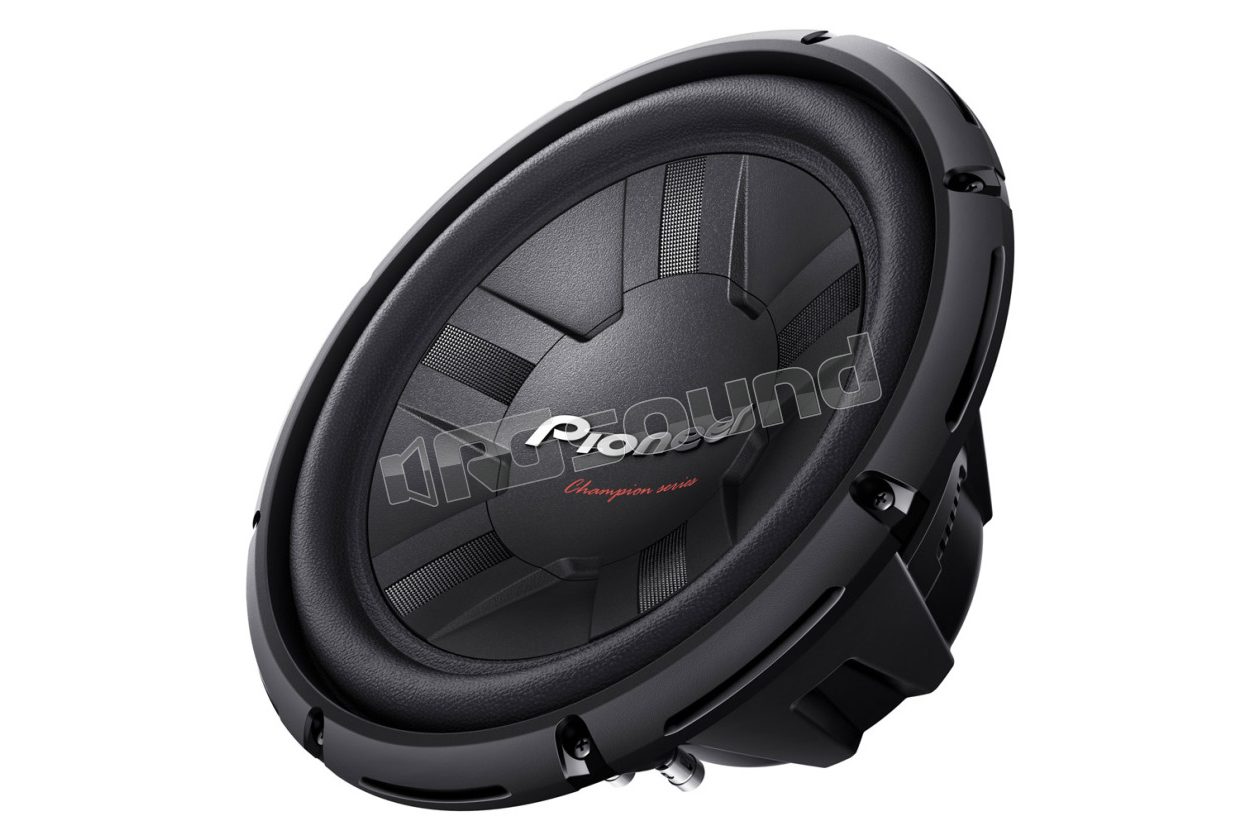

TS-W311D4 dual voice coil 2Ω/8Ω

Pioneer

Discontinued

Your price:
€ 129,00
Price per single item (VAT included)
Type
Subwoofer
Speaker Size
300 mm
MAX Power
1400 Watt
RMS Power
400 Watt
Frequency Response
20 - 125 Hertz
Sensitivity
95 dB
Impedance
4 Ohm
Weight
6,2 Kg
Installation Depth
151 mm
Woofer Material
IMPP

Pioneer TS-W311D4 subwoofer 30cm enclosure with dual voice coil 2Ω / 8Ω. RMS power 400W, maximum power 1400W.

The TS-W311D4 subwoofer offers great stability in its 30cm thanks to the dual 4Ω voice coil, which allows you to choose the 2Ω or 8Ω setting (check that the TS-W311D4 power matches that of the amplifier). This sub delivers up to 1400 Watts of power and is designed to last a long time, it features a sturdy cone made of injection-molded polypropylene (IMPP) shaped in 3D, which makes the body ultra-rigid yet lightweight, delivering powerful bass with minimal distortion. The fully enclosed basket reinforces the frame and increases its response to transients, resulting in more accurate and tight sound.

Unlike ordinary subwoofers, the TS-W311D4 features an independent spider housing that improves air flow. Temperature and vibrations are minimized, while maximum response ensures high quality sound, even at elevated input volume levels.

TS-W311D4 is designed to play in enclosure.

Features TS-W311D4
Maximum power 1400 W
Rated input power 400 W
Impedance 4Ω (2Ω / 8Ω)
Frequency response 20 - 125 Hz
Lower resonance frequency (Hz) 43 Hz
Sensitivity (1W/1m) 95 dB
Woofer size 30 cm
Woofer material IMPP composite cone
Voice Coil type Copper, 4 layers
Dual voice coil 4-ohm: 2 or 8 ohm Yes
Voice Coil type coil Aluminum

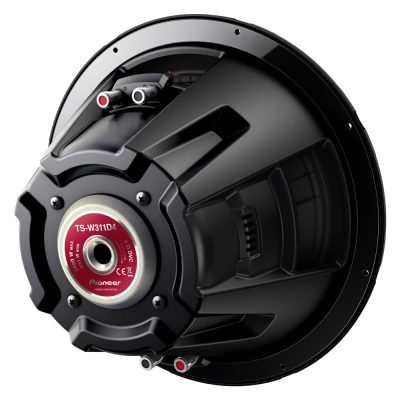

Pole yoke type Extended and vented pole yoke
Magnets Ferrite (dual)
Terminals Push type
Screw terminals 8
Dimensions 326.6 x 168.5 mm
Weight 6.20 kg
Mounting hole cutout 283 mm
Mounting hole 151 mm
Perimeter surround Dual-layer fiber-reinforced elastic polymer perimeter surround
Thiele/Small Parameters TS-W311D4
Nom. dia. (In) 30
Qts 1.05
Qms 13.79
Qes 1.02
Fs [Hz] 43
Vas [l] 32.7
Vas [ft3] 1.15
Vd [l] 0.56
Vd [ft3] 0.0198
Sd [m2] 0.052
Sd [ft2] 0.56
Revc [Ω] dual 2.9
Levc [mH] (2000Hz) 4.85 (8 Ω) / 1.23 (2 Ω)
Xmax [mm] 10.8
Xmax [in] 0.4
Zmax [Ω] 74.19 (8 Ω) / 18.6 (2 Ω)
BI [Tm] 16.2 (8 Ω) / 8.2 (2 Ω)
Rms[Ns/m] 3.39
Mms [g] 166
Cms [m/N] 7.6 x 10-5
Mg.Wt.[g] 2100
Magnetic flux density [Gauss] 7381
Hag [mm] 10
Hag [In] 0.39
Hvc [mm] 31.6
Hvc [In] 1.24
VC diameter [mm] 48
Eff [%] 0.23
S.P.L. [dB] 95
R.M.S. Power [W] 400
M.M.P. [W] 1400
Cone displacement [l] 1.67
Cone displacement [ft3] 0.059
Recommended enclosure [l] 35.38
Recommended enclosure [ft3] 1.25
F0 (in cabinet) 55.8
Q0 (in cabinet) 1.25
