TS-W311

Pioneer

Discontinued

Your price:
€ 119,00
Price per single item (VAT included)
Type
Subwoofer
Speaker Size
300 mm
MAX Power
1000 Watt
RMS Power
300 Watt
Frequency Response
20 -125 Hertz
Sensitivity
95 dB
Impedance
4 Ohm
Weight
4,5 Kg
Installation Depth
147,5 mm
Woofer Material
IMPP

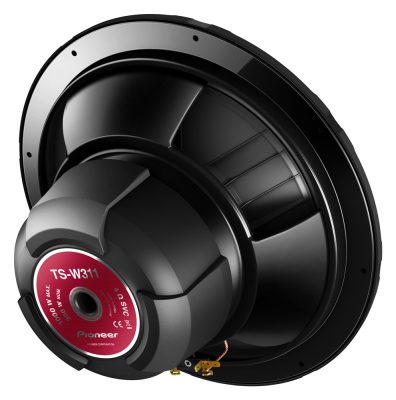

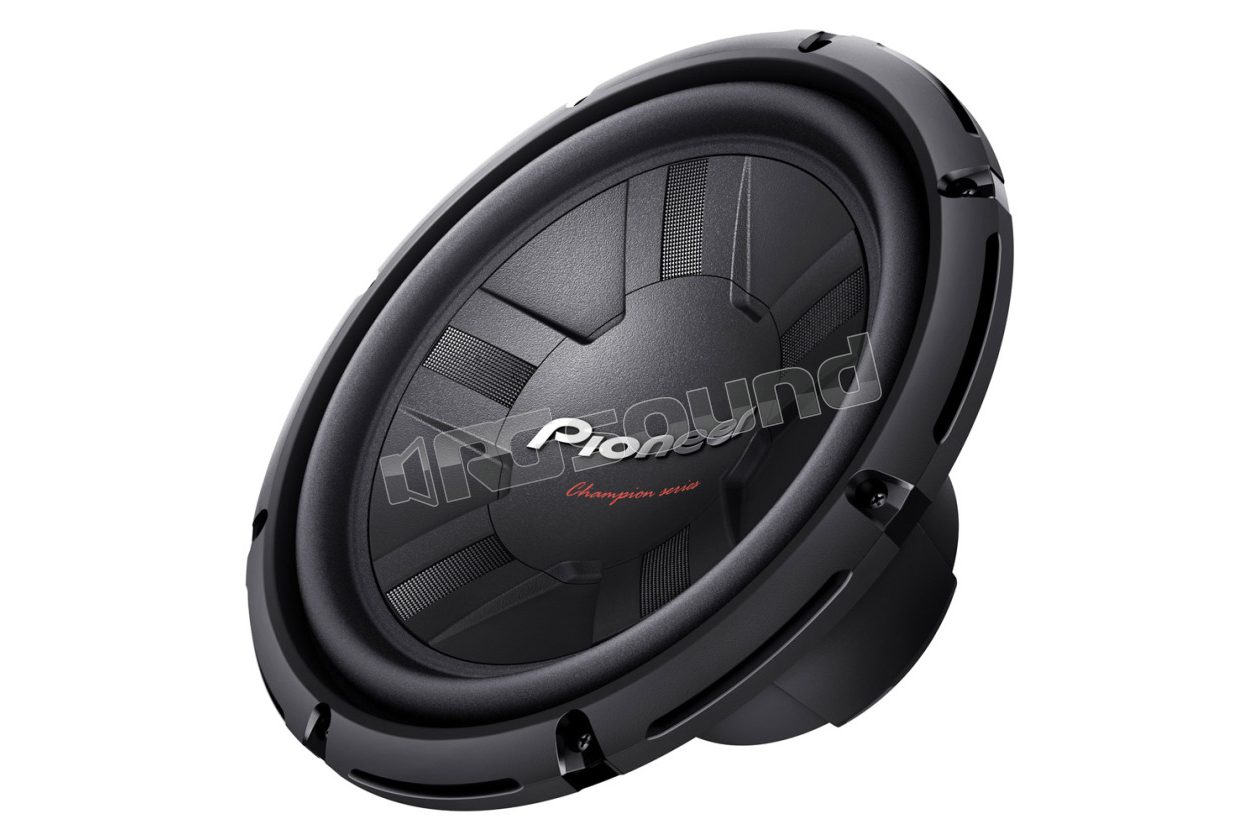

Pioneer TS-W311 30cm multipurpose subwoofer with single 4Ω coil, max power 1000W.

The TS-W311 subwoofer is suitable for both outdoor and indoor use.

3D molded IMPP cone
Designed to last long, this subwoofer features a sturdy injection-molded polypropylene (IMPP) cone molded in 3D, which makes the body ultra-rigid yet light, delivering powerful bass with minimal distortion.

Fully enclosed basket
This subwoofer features a fully enclosed basket to reinforce the frame and increase transient response, resulting in more accurate and tight sound.

Independent spiders
Unlike normal subwoofers, this one features an independent spider housing that improves air flow. Temperature and vibrations are minimized, while maximum response ensures high-quality sound, even at high input volume levels.

Features TS-W311
Max power 1000 W
Rated input power 300 W
Impedance 4Ω
Frequency response 20 - 125 Hz
Lower resonance frequency (Hz) 45 Hz
Sensitivity (1W/1m) 95 dB
Woofer size 30 cm
Woofer material IMPP composite cone
Voice Coil type Copper, 2 layers
Voice Coil bobbin Aluminum
Pole yoke type Extended and vented pole yoke
Magnets Ferrite (single)
Terminals Universal (gold-plated)
Screw terminals 8
Dimensions 323.6 x 165 mm
Weight 4.5 kg
Mounting hole cut-out 278 mm
Mounting hole 147.5 mm
Perimeter profile Urethane
Thiele/Small Parameters TS-W311
Qts 1.17
Qms 9.64
Qes 1.311
Fs [Hz] 45
Vas [l] 34.1
Vas [ft3] 1.21
Vd [l] 0.56
Vd [ft3] 0.0192
Sd [m2] 0.0506
Sd [ft2] 0.54
Revc [Ω] 3.1
Levc [mH] (2000Hz) 1.29
Xmax [mm] 11
Xmax [in] 0.4
Zmax [Ω] 21.85
BI [Tm] 9.6
Rms[Ns/m] 3.89
Mms [g] 133
Cms [m/N] 9.4 x 10-5
Mg.Wt.[g] 1240
Flux density [Gauss] 8425
Hag [mm] 10
Hag [In] 0.39
Hvc [mm] 32
Hvc [In] 1.26
VC diameter [mm] 48
Eff [%] 0.23
S.P.L. [dB] 95
R.M.S. Power [W] 300
M.M.P. [W] 1000
Displacement [l] 1.75
Displacement [ft3] 0.061
Recommended enclosure [l] 35.4
Recommended enclosure [ft3] 1.25
F0 (in cabinet) 60.2
Q0 (in cabinet) 1.64
