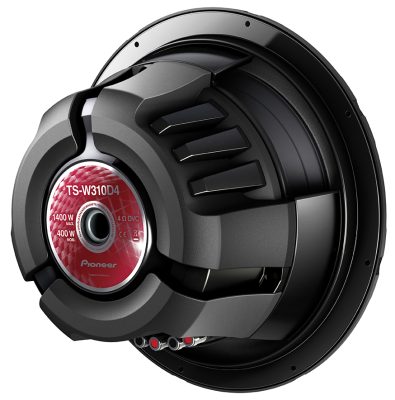

TS-W310D4 Dual Voice Coil 2Ω/8Ω

Pioneer

Discontinued

Your price:
€ 129,00
Price per single item (VAT included)
Type
Subwoofer
Speaker Size
300 mm
MAX Power
1400 Watt
RMS Power
400 Watt
Sensitivity
95 dB
Impedance
2 / 8 Ohm
Weight
6,2 Kg
Installation Depth
153 mm
Woofer Material
Composito IMPP

Subwoofer enclosure type with dual Voice Coil 30cm and 2Ω/8Ω (1400W)

More intense bass, more power, greater flexibility.

Make the bass in your car powerful and vigorous, from the pedigree of subwoofers that break world records. The TS-W310D4 model features a combined IMPP cone that makes the body ultra-rigid yet lightweight, delivering low distortion and powerful bass at high sound pressure levels. Furthermore, it allows greater flexibility: thanks to the dual 4Ω voice coil, you can choose the 2Ω or 8Ω setting (provided the subwoofer power matches that of the amplifier).

Features

  • Maximum power 1,400 W

  • Rated input power 400 W

  • Impedance 2Ω / 8Ω

  • Frequency response 20 - 250 Hz

  • Sensitivity (1W/1m) 95 dB

  • Woofer size 30.0 cm

  • Woofer material IMPP composite cone seamless

  • Voice Coil type Dual

  • Dual 4-ohm voice coil:2 or 8 ohm Yes

  • Pole yoke type Extended and ventilated pole yoke

  • Terminals Push-type

  • Weight 6.20 kg

  • Perimeter profile Double-layer fiber-reinforced elastic polymer perimeter profile

Thiele/Small Parameters

  • Qts 0.77

  • Fs [Hz] 37

  • Vas [ft3] 1.21

  • Xmax [mm] 10.8

  • Xmax [in] 0.42
