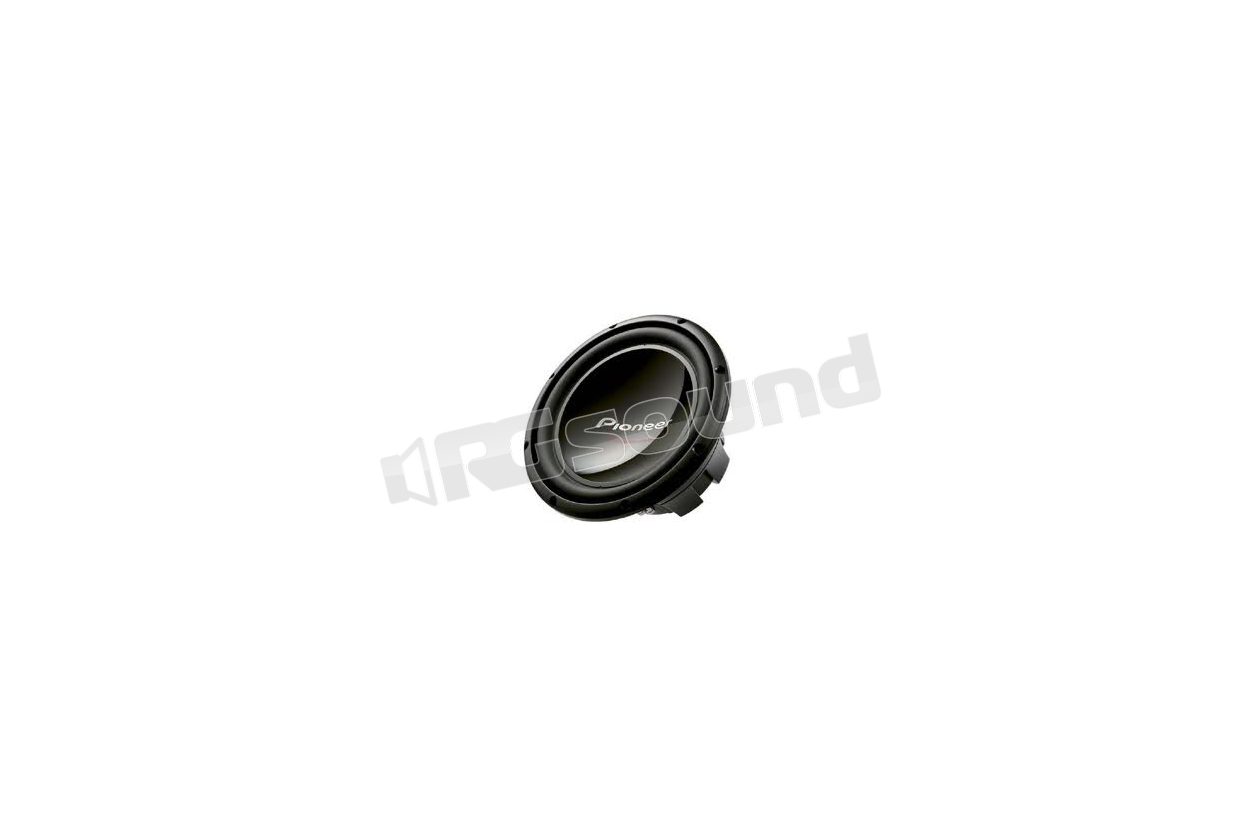

TS-W309S4 Single Voice Coil 4Ω

Pioneer

Discontinued

Your price:
€ 99,90
Price per single item (VAT included)
Type
Subwoofer
Speaker Size
320 mm
MAX Power
1400 Watt
RMS Power
400 Watt
Frequency Response
20-220 Hertz
Sensitivity
94 dB
Impedance
4 Ohm
Woofer Material
Composito IMPP

TS-W309S4 Subwoofer with Single Voice Coil 30 cm and 4Ω for private use and free-air (1000 W)

Deliver powerful and vigorous bass in your car, from the pedigree of subs that set world records. This model is equipped with an IMPP cone (injection-molded polypropylene), which makes the body ultra rigid yet lightweight, delivering low distortion and powerful bass at high sound pressure levels.

Wiring and installation are made easier by single-sided terminals.

It is recommended to use the TS-W309S4 subwoofer in a closed box, also available in the dual voice coil model TS-W309D4 or in the model suitable for installations in closed box and free-air TS-W309

Features TS-W309S4
Maximum Power 1,400 W
Rated Input Power 400 W
Impedance 4Ω
Frequency Response 20 - 220 Hz
Lower Resonance Frequency (Hz) 40 Hz
Sensitivity (1W/1m) 94 dB
Woofer Size 30 cm
Woofer Material IMPP composite cone seamless
Voice Coil Type Single

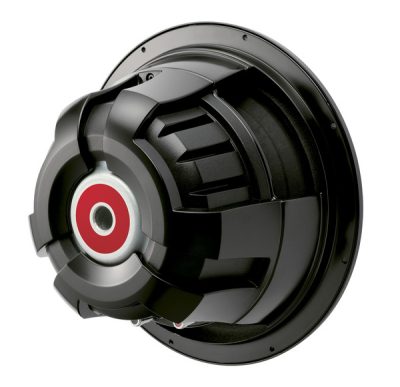

Voice Coil Bobbin Aluminum, diam. 2 inches (48 mm)
Pole Yoke Type Extended and ventilated pole yoke
Magnets Dual-layer high performance
Terminals Push-type
Recommended Box Volume (liters) 24.1 - 49.5 liters

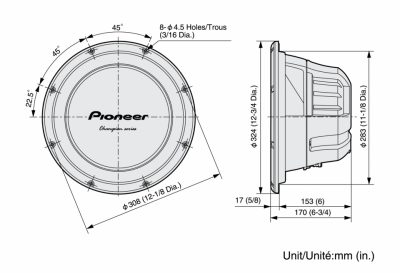

Cutout with Hole 283 mm mm
Mounting Hole 153.1 mm mm
Perimeter Profile Fiber-reinforced dual-layer elastomeric perimeter profile
Thiele/Small Parameters TS-W309S4
Nom. Dia. (In) 12
Qts 0.66
Fs [Hz] 39.5
Vas [l] 30.14
Vas [ft3] 1.07
Xmax [mm] 10.4
