TS-W309 Single Voice Coil for Enclosure and Free-Air

Pioneer

Discontinued

Your price:
€ 89,80
Price per single item (VAT included)
Type
Subwoofer
Speaker Size
320 mm
MAX Power
1000 Watt
RMS Power
300 Watt
Frequency Response
20-450 Hertz
Sensitivity
95 dB
Impedance
4 Ohm
Woofer Material
Composito IMPP

TS-W309 Subwoofer with Single Voice Coil 30 cm and 4Ω for sealed enclosure and free-air use (1000 W)

Make bass in your car powerful and vigorous, from the pedigree of subs that break world records. The TS-W309 model features a seamless IMPP composite cone (injection-molded polypropylene) that makes the body ultra rigid yet light, offering low distortion and powerful bass at high sound pressure levels.

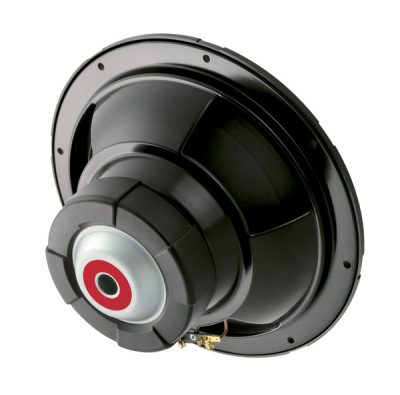

Wiring and installation are made easier by terminals on one side.

The TS-W309 model is suitable for both sealed enclosure and free-air; also available in the model to be used exclusively in sealed box: TS-W309S4 (single voice coil) TS-W309D4 (dual voice coil)

Features TS-W309
Maximum power 1,000 W
Rated input power 300 W
Impedance 4Ω
Frequency response 20 - 450 Hz
Lower resonant frequency (Hz) 30 Hz
Sensitivity (1W/1m) 95 dB
Woofer size 30 cm
Woofer material Seamless IMPP composite cone
Voice coil type Single
Voice coil bobbin Aluminum, diam. 2 inches (48 mm)
Pole yoke type Extended and vented pole yoke
Recommended enclosure volume (liters) 24.1 - 49.5 liters or free-air

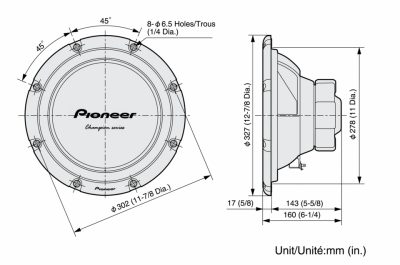

Hole cutout 278 mm mm
Mounting hole 143.1 mm mm
Perimeter surround Urethane perimeter surround
Thiele/Small Parameters TS-W309
Nom. diam. (In) 12
Qts 0.89
Fs [Hz] 29.5
Vas [l] 67.32
Vas [ft3] 2.38
Xmax [mm] 11
