TS-W304R

Pioneer

Discontinued

Your price:
€ 83,70
Price per single item (VAT included)
Type
Subwoofer
Speaker Size
320 mm
MAX Power
1300 Watt
RMS Power
300 Watt
Frequency Response
20-220 Hertz
Sensitivity
95 dB
Impedance
4 Ohm
Woofer Material
Composito IMPP

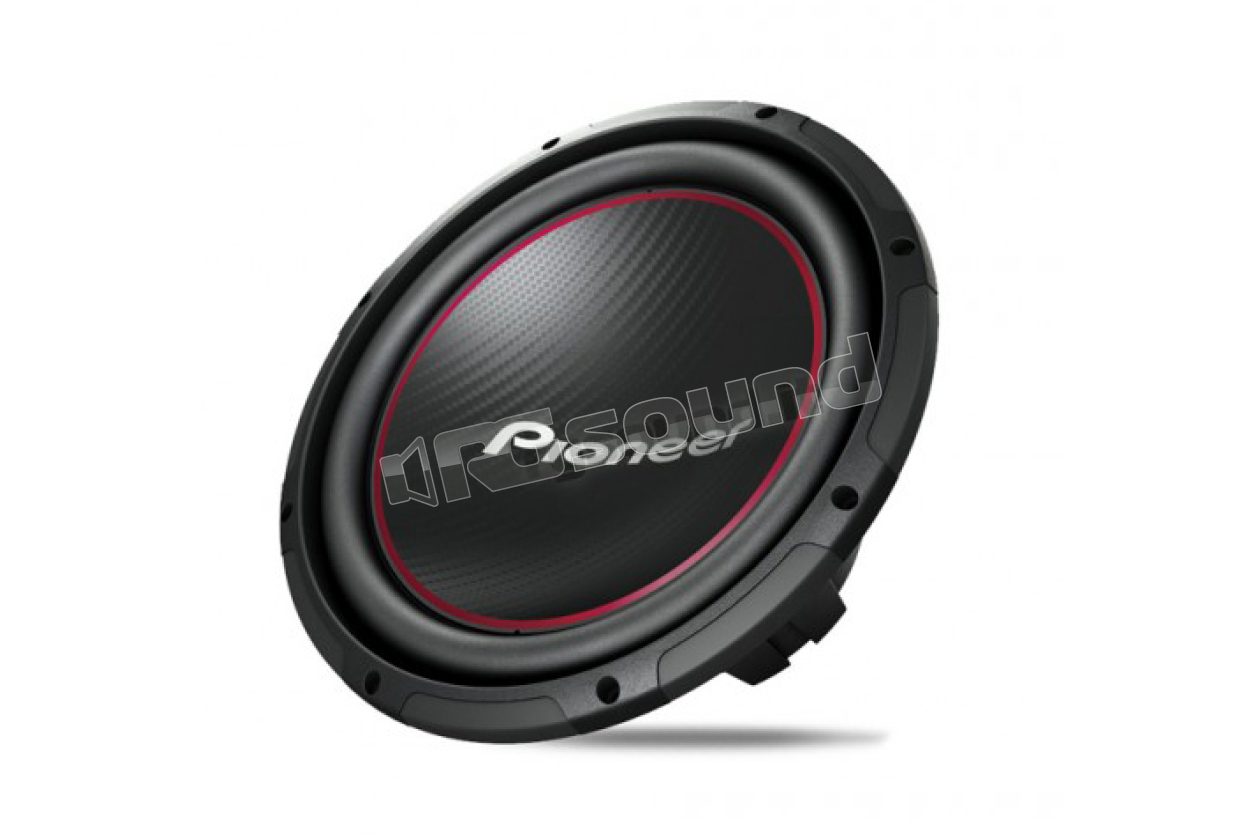

TS-W304R 30 cm Subwoofer (1300 W)

Make powerful and vigorous bass in your car, from the pedigree of subs that break world records. This subwoofer features a seamless IMPP composite cone that makes the body ultra rigid yet lightweight delivering low distortion and powerful bass at high sound pressure levels.

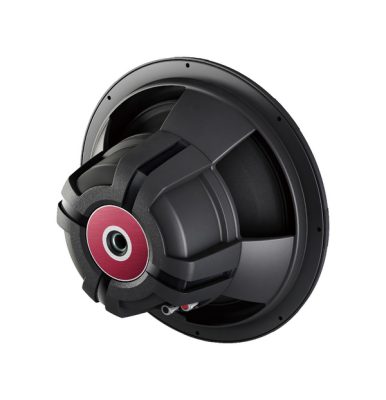

Wiring and installation are made easier by one-sided terminals.

Suitable for both outdoor and indoor use, it is also available as a model for indoor use only.

The aesthetic is equivalent to that of our GM amplifier range.


Features TS-W304R
Maximum Power 1,300 W
Rated Input Power 300 W
Impedance 4Ω
Frequency Response 20 - 220 Hz
Sensitivity (1W/1m) 95 dB
Woofer Size 30 cm
Woofer Material IMPP Cone
Voice Coil Type Extended and vented pole yoke

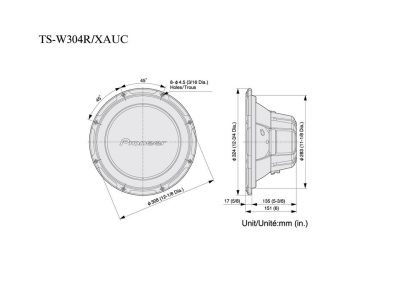

Cutout with hole 283.0 mm
Mounting hole 134.5 mm
Thiele/Small Parameters TS-W304R
Nom. Dia. (In) 12
Qts 0.70
Qms 13.30
Qes 0.740
Fs [Hz] 28.6
Vas [l] 77.88
Vas [ft3] 2.75
Vd [l] 0.245
Vd [ft3] 8.64E-03
Sd [m2] 5.20E-02
Sd [ft2] 0.560
Revc [Ω] SINGLE 3.0
Levc [mH] (2000Hz) 2.390
Xmax [mm] 4.7
Xmax [in] 0.19
Zmax [Ω] 40.9
BI [Tm] 10.39
Rms[Ns/m] 2.010
Mms [g] 149.50
Cms [m/N] 2.100E-04
Mg.Wt.[g] 940
Flux Density [Gauss] 6210
Hag [mm] 6
Hag [In] 0.236
Hvc [mm] 15.5
Hvc [In] 0.610
Voice Coil Diameter [mm] 40
Eff [%] 0.21
S.P.L. [dB] 95.0
RMS Power [W] 300
M.M.P. [W] 1300
Space Displacement [l] 1.66
Space Displacement [ft3] 0.059
Recommended Enclosure [l] 35.4
Recommended Enclosure [ft3] 1.25
F0 (in cabinet) 51.2
Q0 (in cabinet) 1.252
