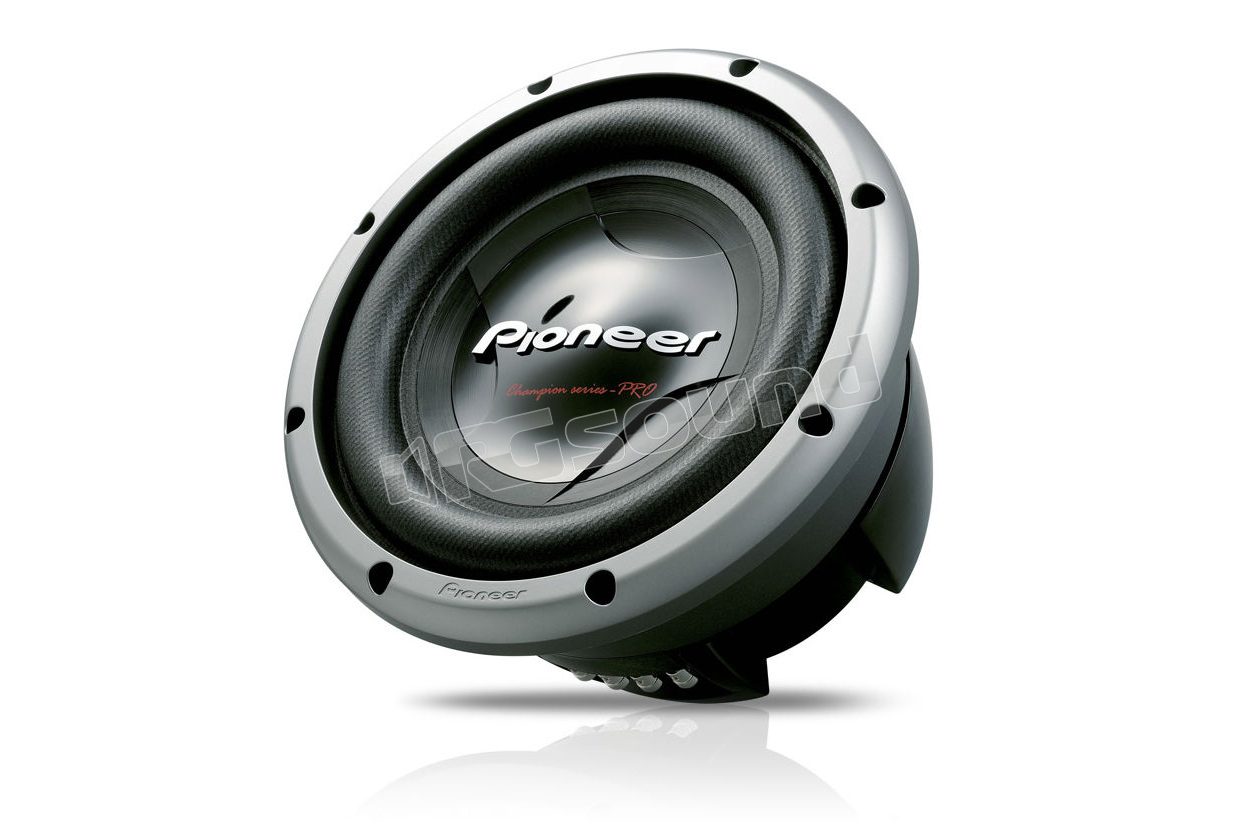

TS-W3002D4

Pioneer

Discontinued

Your price:
€ 215,50
Price per single item (VAT included)
Type
Subwoofer
Speaker Size
320 mm
MAX Power
3500 Watt
RMS Power
1000 Watt
Frequency Response
20 - 150 Hertz
Sensitivity
90 dB
Impedance
4 + 4 Ohm
Weight
8,5 Kg
Installation Depth
214 mm
Woofer Material
Interlaced Basalt / Carbon Fibre Reinforced

This sub has been replaced by the new model TS-W3003D4.

The TS-W3002D4 model is part of our Champion series and offers "competition-grade" bass, even though it is housed in a very compact enclosure.

The subwoofer is equipped with an Air Suspension System that creates an airtight space between the two internal cones: this allows stable and smooth movement of the main cone, reflecting air pressure from the enclosure. The result is very defined bass in a lower volume enclosure.

The cone is constructed with a composite mixture of basalt and carbon fiber that makes it extremely rigid, yet light, offering low distortion and powerful bass at high sound pressure levels.

The subwoofer is versatile and offers various configuration options (2Ω or 8Ω), provided its power corresponds exactly to that of the amplifier.

* * You can also improve the appearance (and protection) of the subwoofer by adding an optional 3-spoke grille and a custom enclosure.


Features

Features TS-W3002D4
Maximum Power 3,500 W
Rated Input Power 1,000 W
Impedance Dual 4 ohm
Frequency Response 20 - 150 Hz
Lower Resonance Frequency (Hz) 31 Hz
Sensitivity (1W/1m) 90 dB
Woofer Size 30 cm
Woofer Material Interlaced Basalt / Carbon Fibre Reinforced IMPP™
Dual 4-ohm Voice Coil: 2 or 8 ohm Yes
Voice Coil Type Phenol resin coated glass cloth bobbin

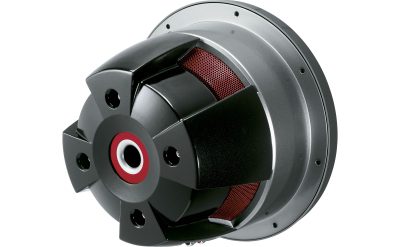

Pole Piece Yoke Type Open and extended pole yoke
Magnets Dual stacked, high power
Terminals Push-type
Recommended Enclosure Volume (liters) 14.2 - 28.3 liters
Perimeter Profile 3-Layer Fiber Woven Radial Surround
Thiele Parameters TS-W3002D4
Nom. Dia. (In) 12
Qts 0.65
Qms 15.13
Qes 0.68
Fs [Hz] 31.4
Vas [l] 13.03
Vas [ft3] 0.460
Vd [l] 0.564
Vd [ft3] 0.01992
Sd [m2] 0.04372
Sd [ft2] 0.471
Revc [Ω] DUAL3.3
Levc [mH] (2000Hz) 5.55 (8 ohm)
1.39 (2 ohm)
Xmax [mm] 12.9
Xmax [in] 0.51
Zmax [Ω] 157.77 (8 ohm)
38.53 (2 ohm)
BI [Tm] 28.38 (8 ohm)
14.19(2 ohm)
Rms[Ns/m] 5.334
Mms [g] 408.83
Cms [m/N] 0.0000629
Mg.Wt.[g] 3230
Flux Density [Gauss] 5900
Hag [mm] 24
Hag [In] 0.94
Hvc [mm] 49.8
Hvc [In] 1.96
VC Diameter [mm] 65
Eff [%] 0.06
S.P.L. [dB] 90.0
R.M.S. Power [W] 1000
M.M.P. [W] 3500
Displacement [l] 5.12
Displacement [ft3] 0.181
Recommended Enclosure [l] 22.64
Recommended Enclosure [ft3] 0.80
F0 (in cabinet) 39.4
Q0 (in cabinet) 0.816
