TS-W261S4 25cm sub TS-W Series

Pioneer

Discontinued

Your price:
€ 109,00
Price per single item (VAT included)
Type
Subwoofer
Speaker Size
250 mm
MAX Power
1200 Watt
RMS Power
350 Watt
Frequency Response
20 -125 Hertz
Sensitivity
93 dB
Impedance
4 Ohm
Weight
4,75 Kg
Installation Depth
138,9 mm
Woofer Material
IMPP

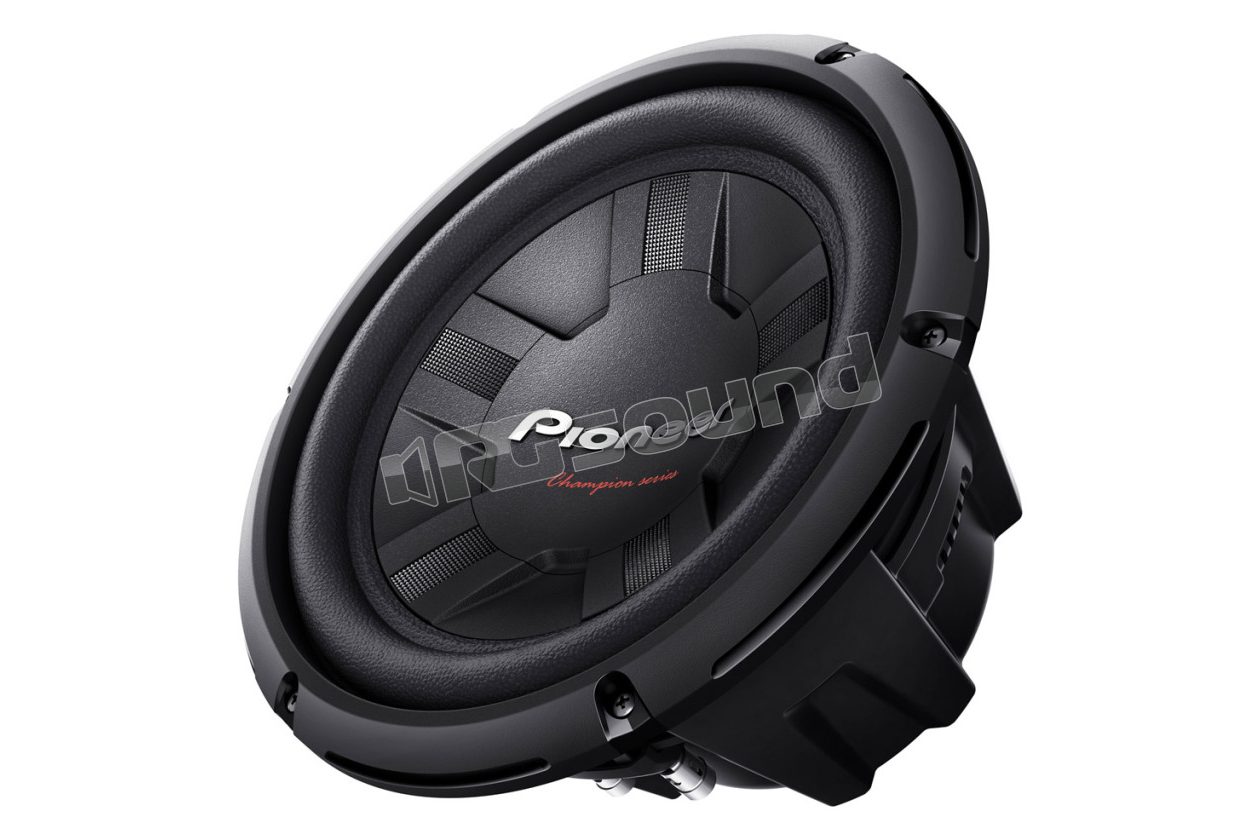

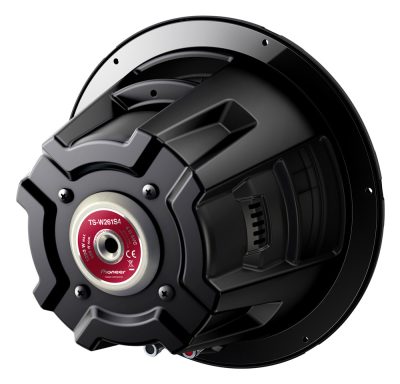

Pioneer TS-W261S4 250 mm subwoofer in a box, equipped with single voice coil, 4Ω impedance, 350W RMS power, 1200W max power.

Pioneer subwoofers in the TS-W series combine excellent sound, design and technology with powerful bass.

TS-W261S4 is designed and made with a fully enclosed basket that efficiently suppresses repulsion to produce high quality audio, ensuring precise, clear and rhythmic bass. IMPP composite cone, patented by Pioneer (characterized by a rigid design molded in 3D) and large, dual stacked magnets.

TS-W261S4 Strengths

  • 3D molded IMPP cone
  • Designed to last a long time, this subwoofer is equipped with a durable 3D molded injection polypropylene (IMPP) cone that makes the body ultra rigid yet light, giving you powerful bass with minimal distortion.
  • Fully enclosed basket
  • This subwoofer features a fully enclosed basket to reinforce the frame and increase transient response, resulting in more accurate and tight sound.
  • Independent spiders
  • Unlike normal subwoofers, this one is equipped with an independent spider housing that improves air flow. Temperature and vibrations are minimized, while maximum response ensures high quality sound, even at high input volume levels.

Pioneer Specialized Store (PSD). RGsound has been selected in Italy by Pioneer as a specialized reseller in the In-car Navigation & Entertainment sector.

PSD specialist centers have highly qualified installation staff, so they can also guarantee excellent after-sales service. You will always have the certainty that your product has been installed in the best way.

Features TS-W261S4
Maximum power 1200 W
Rated input power 350 W
Impedance 4Ω
Frequency response 20 - 125 Hz
Lower resonance frequency (Hz) 45 Hz
Sensitivity (1W/1m) 93 dB
Woofer size 25 cm
Woofer material IMPP composite cone
Voice Coil Type Copper, 4 layers
Voice Coil type Aluminum
Pole yoke type Extended and vented pole yoke
Magnets Ferrite (dual)
Terminals Push type
Screw terminals 6
Dimensions 277.4 x 154.7 mm
Weight 4.75 kg
Cut-out with hole 235 mm
Mounting hole 138.9 mm
Perimeter profile Double-layer fiber-reinforced elastic polymer perimeter profile
Thiele/Small Parameters TS-W261S4
Nom. Dia. (In) 25
Qts 0.85
Qms 14.59
Qes 0.9
Fs [Hz] 45
Vas [l] 18.6
Vas [ft3] 0.66
Vd [l] 0.33
Vd [ft3] 0.0115
Sd [m2] 0.035
Sd [ft2] 0.38
Revc [Ω] 3.2
Levc [mH] (2000Hz) 2.92
Xmax [mm] 9.3
Xmax [in] 0.4
Zmax [Ω] 47.17
BI [Tm] 11.5
Rms[Ns/m] 2.42
Mms [g] 124
Cms [m/N] 9.9 x 10-5
Mg.Wt.[g] 1700
Flux density [Gauss] 6813
Hag [mm] 10
Hag [In] 0.39
Hvc [mm] 28.6
Hvc [In] 1.13
VC diameter [mm] 40
Eff [%] 0.17
S.P.L. [dB] 93
R.M.S. Power [W] 350
M.M.P. [W] 1200
Displacement vol. [l] 1.22
Displacement vol. [ft3] 0.043
Recommended box [l] 22.64
Recommended box [ft3] 0.8
F0 (in cabinet) 60.2
Q0 (in cabinet) 1.13
