TS-W261D4

Pioneer

Discontinued

Your price:
€ 119,00
Price per single item (VAT included)
Type
Subwoofer
Speaker Size
250 mm
MAX Power
1200 Watt
RMS Power
350 Watt
Frequency Response
20 -125 Hertz
Sensitivity
93 dB
Impedance
4 Ohm
Weight
4,8 Kg
Installation Depth
138,9 mm
Woofer Material
IMPP

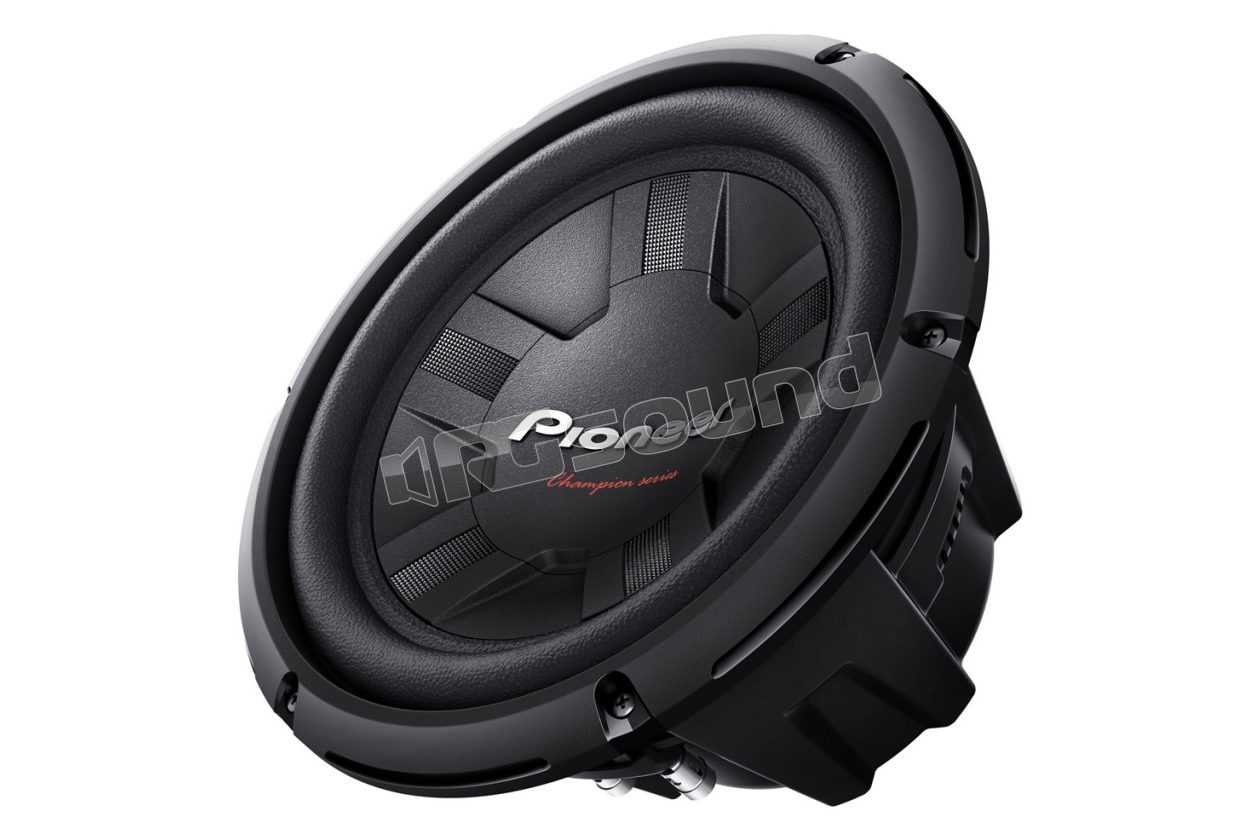

Pioneer TS-W261D4 subwoofer with dual voice coil 25cm and 4Ω. RMS power 350W, max 1200W.

More bass, more power from the TS-W series subwoofers combine excellent sound, design and technology.

The TS-W261D4 subwoofer is designed to produce high quality audio, equipped with a fully enclosed basket that suppresses repulsion efficiently, ensuring precise, clear and rhythmic bass.

IMPP composite cone, patented by Pioneer and characterized by a rigid design molded in 3D, as well as large stacked dual magnets. Furthermore, these TS-W series models can be easily installed in many different cars.

TS-W261D4 with dual 4Ω voice coil, which allows you to choose the 2Ω or 8Ω setting (provided the subwoofer power matches the amplifier power). The TS-W261D4 model gives you up to 1200 Watts and can be used indoors.

TS-W261D4 Features

  • IMPP logo
  • 3D molded IMPP cone
  • Designed to last a long time, this subwoofer features a durable injection-molded polypropylene (IMPP) cone molded in 3D, which makes the body ultra-rigid yet lightweight, giving you powerful bass with minimal distortion.

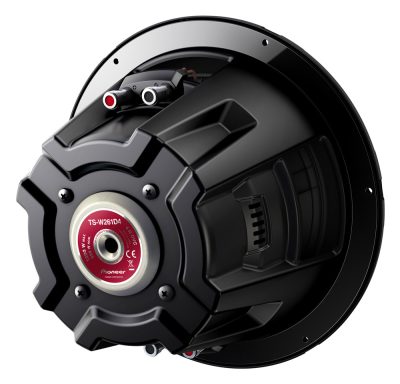

  • Enclosed basket
  • Fully enclosed basket
  • This subwoofer boasts a fully enclosed basket to reinforce the frame and increase its transient response, resulting in more accurate and tight sound.
  • Independent spider
  • Independent spiders
  • Unlike ordinary subwoofers, this one features an independent spider housing that improves air flow. Temperature and vibrations are minimized, while maximum response ensures high quality sound, even at elevated input volume levels.

Pioneer Specialized Store (PSD). RGsound has been selected in Italy by Pioneer as a specialized retailer in the In-car Navigation & Entertainment sector.

PSD specialist centers have highly qualified installation staff, so they can also guarantee excellent after-sales service. You will always have the certainty that your product has been installed in the best way.

Features TS-W261D4
Maximum Power 1200 W
Nominal Input Power 350 W
Impedance 4Ω (2Ω / 8Ω)
Frequency Response 20 - 125 Hz
Lower Resonance Frequency (Hz) 46 Hz
Sensitivity (1W/1m) 93 dB
Woofer Size 25 cm
Woofer Material IMPP Composite Cone
Voice Coil Type Copper, 4 Layer
Dual 4-ohm Voice Coil:2 or 8 ohm Yes
Voice Coil Type Aluminum
Pole Yoke Type Extended and vented pole yoke
Magnets Ferrite (dual)
Terminals Push type
Screw Terminals 6
Dimensions 277.4 x 154.7 mm
Weight 4.8 kg
Notch with Hole 235 mm
Mounting Hole 138.9 mm
Perimeter Profile Fiber-reinforced elastic polymer double-layer perimeter profile
Thiele/Small Parameters TS-W261D4
Nom. Dia. (In) 25
Qts 1.04
Qms 15.49
Qes 1.12
Fs [Hz] 46
Vas [l] 17.7
Vas [ft3] 0.63
Vd [l] 0.35
Vd [ft3] 0.0125
Sd [m2] 0.035
Sd [ft2] 0.38
Revc [Ω] dual 3.3
Levc [mH] (2000Hz) 4.91 (8 Ω) / 1.26 (2 Ω)
Xmax [mm] 10.1
Xmax [in] 0.3
Zmax [Ω] 85.48 (8 Ω) / 18.61 (2 Ω)
BI [Tm] 15.3 (8 Ω) / 7.7 (2 Ω)
Rms[Ns/m] 2.33
Mms [g] 123
Cms [m/N] 9.5 x 10-5
Mg.Wt.[g] 1700
Flux Density [Gauss] 7177
Hag [mm] 10
Hag [In] 0.39
Hvc [mm] 30.2
Hvc [In] 1.19
VC Diameter [mm] 40
Eff [%] 0.16
S.P.L. [dB] 93
R.M.S. Power [W] 350
M.M.P. [W] 1200
Displacement [l] 1.22
Displacement [ft3] 0.043
Recommended Enclosure [l] 22.64
Recommended Enclosure [ft3] 0.8
F0 (in cabinet) 61.6
Q0 (in cabinet) 1.28
