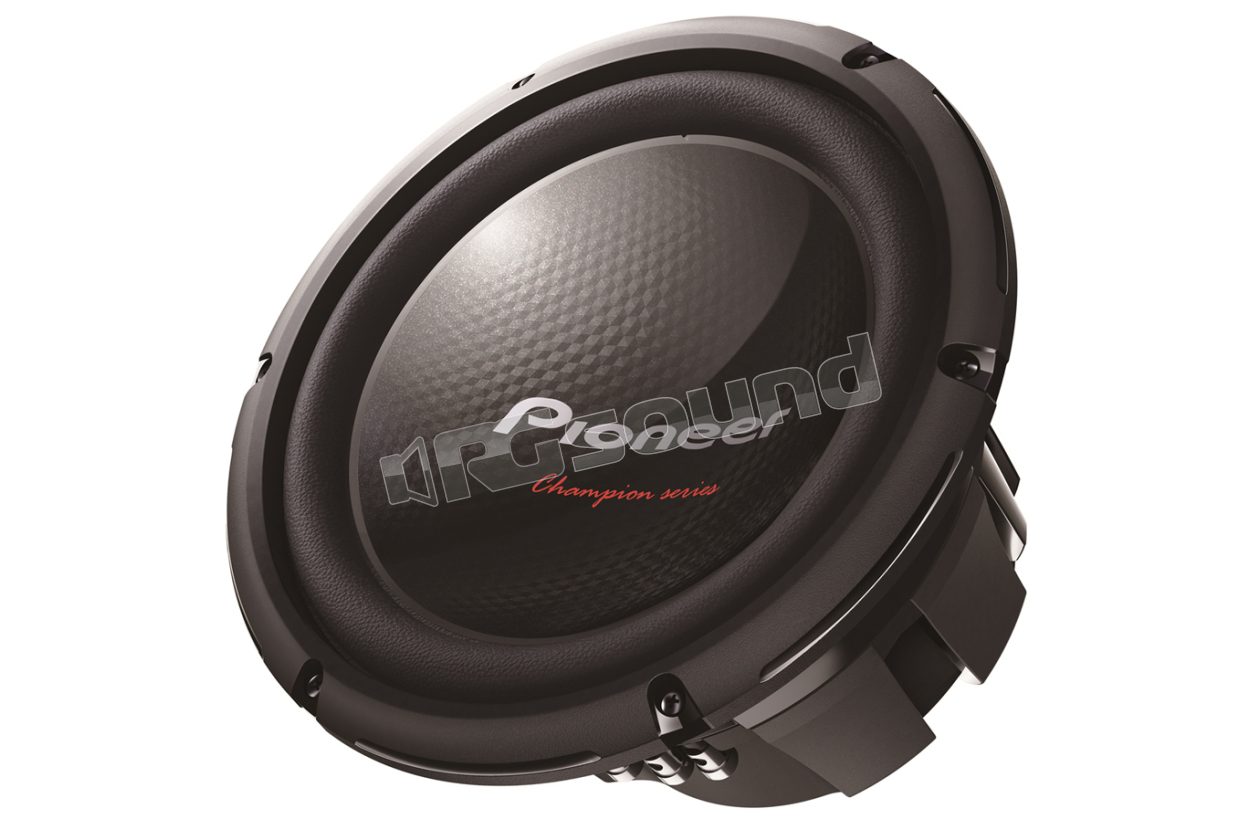

TS-W260D4

Pioneer

Discontinued

Your price:
€ 89,00
Price per single item (VAT included)
Type
Subwoofer
Speaker Size
250 mm
MAX Power
1200 Watt
RMS Power
350 Watt
Frequency Response
20 -250 Hertz
Sensitivity
93 dB
Weight
4,59 Kg

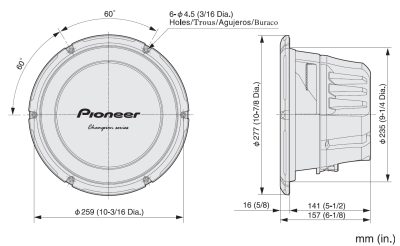

Installation Depth
141 mm
Woofer Material
IMPP

Pioneer TS-W260S4 - Subwoofer with dual Voice Coil enclosed type 25cm and 4Ω (1200W)

More intense bass, more power, greater flexibility.
Make the bass in your car powerful and vigorous, from the pedigree of subwoofers that break world records.
The TS-W260S4 model is equipped with a seamless IMPP composite cone that makes the body ultra rigid yet lightweight, offering low distortion and powerful bass at high sound pressure levels.

Pioneer Specialized Store (PSD). RGsound has been selected in Italy by Pioneer as a specialized retailer in the In-car Navigation & Entertainment sector.

PSD specialist centers have highly qualified installation personnel, so they can also guarantee excellent after-sales service. You will always be sure that your product has been installed in the best way.



TS-W260D4 Features

  • Maximum power 1,200 W

  • Rated input power 350 W

  • Impedance 2Ω / 8Ω

  • Frequency response 20 - 250 Hz

  • Sensitivity (1W/1m) 93 dB

  • Woofer size 25.0 cm

  • Woofer material Seamless IMPP composite cone

  • Voice Coil type Dual

  • Pole yoke type Extended and vented pole yoke

  • Terminals Push-type

  • Weight 4.59 kg

  • Perimeter profile Perimeter profile in fiber-reinforced elastic polymer double layer

Thiele/Small Parameters

  • Qts 1.15

  • Fs [Hz] 47

  • Vas [l] 11.5

  • Vas [ft3] 0.41

  • Xmax [mm] 12.2

  • Xmax [in] 0.5

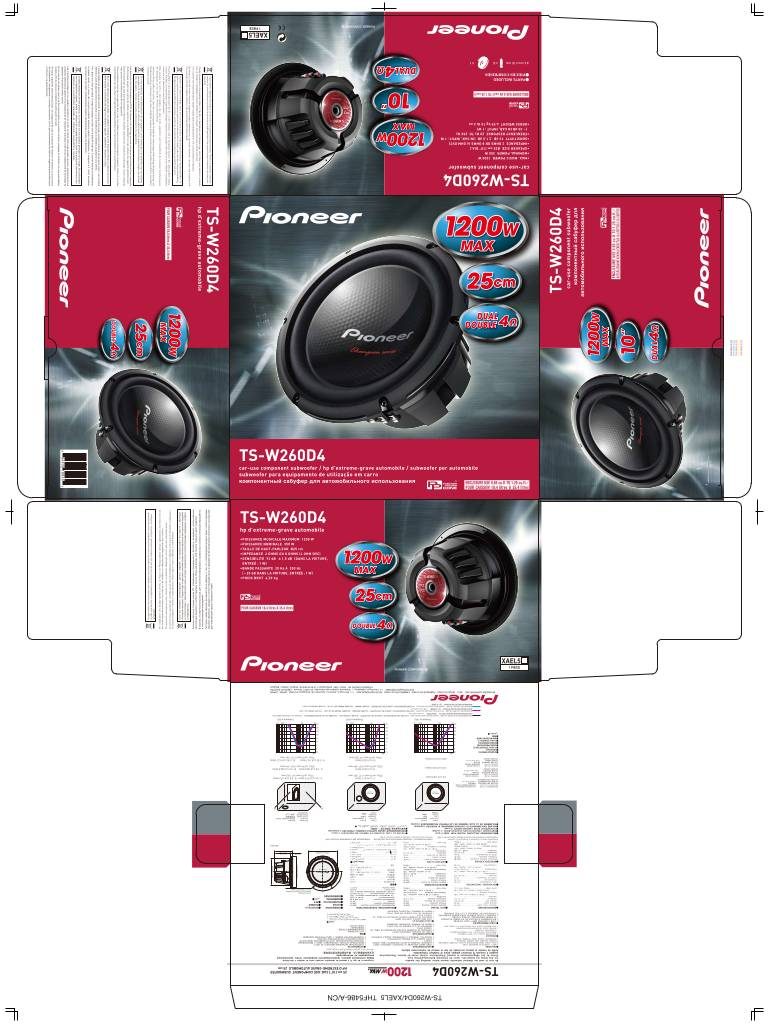

Manuale utente

20140401114648-ts-w260d4-manual-en-fr-de-it-pt-ru-es.pdf
Discontinued
