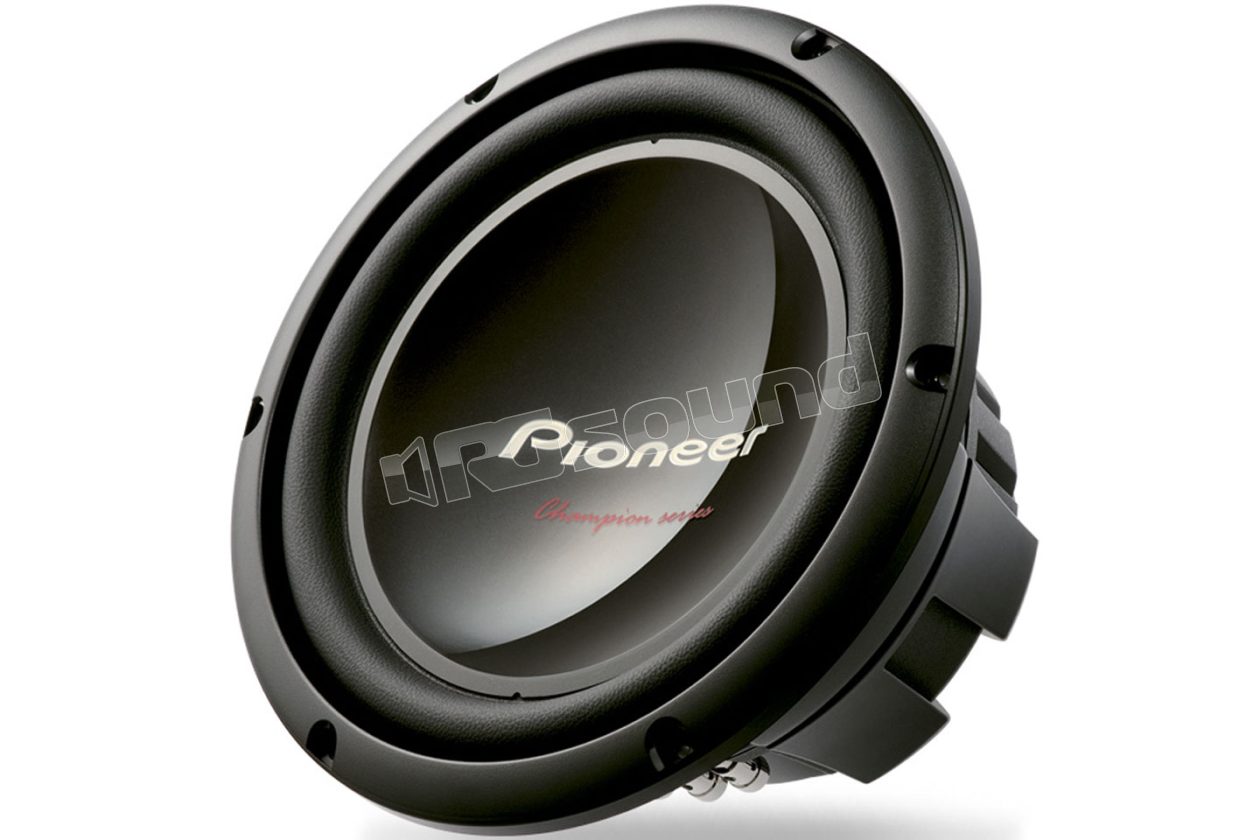

TS-W259D4

Pioneer

Discontinued

Your price:
€ 83,70
Price per single item (VAT included)
Type
Subwoofer
Speaker Size
250 mm
MAX Power
1200 Watt
RMS Power
350 Watt
Frequency Response
20 - 280 Hertz
Sensitivity
92 dB
Impedance
4 + 4 Ohm
Installation Depth
141 mm
Woofer Material
IMPP

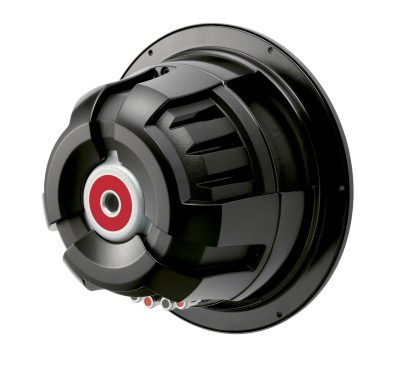

Subwoofer with Dual Voice Coil 25 cm and 4Ω for use in sealed enclosure (1200 W)
Make car bass powerful and vigorous, from the pedigree of subs that break world records. This model is equipped with an IMPP cone (injection molded polypropylene), which makes the body ultra rigid yet lightweight, offering low distortion and powerful bass at high sound pressure levels.
Additionally, greater flexibility is possible. Thanks to the 4Ω dual voice coil, you can choose the 2Ω or 8Ω setting (provided the amplifier supports such load).
Wiring and installation are facilitated by terminals on one side only.
It is recommended to use the TS-W259D4 subwoofer in Sealed Enclosure configuration; also available in single voice coil version TS-W259S4
> > > > > > >
Features
TS-W259D4
Maximum power
1,200 W
Rated input power
350 W
Impedance
2Ω / 8Ω
Frequency response
20 - 280 Hz
Lower resonance frequency (Hz)
48 Hz
Sensitivity (1W/1m)
92 dB
Woofer size
25 cm
Woofer material
IMPP composite cone seamless
Voice coil type
Dual
Dual mobile coil 4-ohm:2 or 8 ohm
Yes
Voice coil type
Aluminum, diam. 1.5 inches (40 mm)
Pole yoke type
Extended and vented pole yoke
Magnets
Double-layer high performance
Terminals
Push-type
Recommended enclosure volume (liters)
18.4 - 35.4 liters

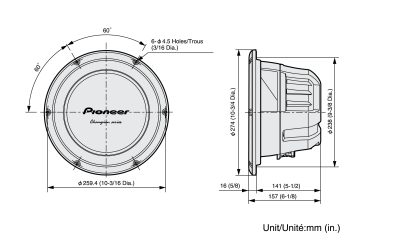

Cutout with hole
238 mm mm
Mounting hole
140 ?? mm
Perimeter profile
Elastomeric perimeter profile reinforced with fibers, double-layer
Thiele/Small Parameters
TS-W259D4
Nom. dia. (In)
10
Qts
1
Fs [Hz]
48
Vas [l]
14.63
Vas [ft3]
0.52
Xmax [mm]
12
Discontinued
