TS-W258D4

Pioneer

Discontinued

Your price:
€ 98,20
Price per single item (VAT included)
Type
Subwoofer
Speaker Size
250 mm
MAX Power
1200 Watt
RMS Power
350 Watt
Frequency Response
20 - 450 Hertz
Sensitivity
90 dB
Impedance
4 Ohm
Weight
4,5 Kg

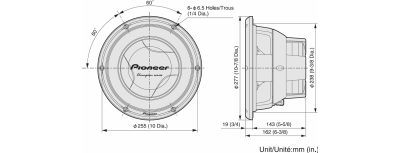

Installation Depth
143 mm
Woofer Material
IMPP™ rinforzato con fibre di vetro/carbonio intrecciate

More intense bass. More power. Greater flexibility.

Add power and vigor to your car's bass, from the pedigree of subs that break world records. The TS-W258D4 model is equipped with a basaltic and aramidic fiber cone, which makes the body ultra rigid, yet lightweight, offering low distortion and powerful bass at high sound pressure levels.

It also allows for greater flexibility. Thanks to the dual 4Ω voice coil, you can choose the 2Ω or 8Ω setting (provided the subwoofer power matches the amplifier power correctly).

Wiring and installation are made easier by terminals on a single side. You can also improve the appearance (and protection) of the sub by adding an optional 3-spoke grille.

It is recommended to use the TS-W258D4 subwoofer enclosed; also available in the model with dual voice coil from 2Ω.

Features

Features TS-W258D4
Maximum Power 1,200 W
Rated Input Power 350 W
Impedance 4Ω
Frequency Response 20 - 450 Hz
Lower Resonance Frequency (Hz) 40.5 Hz
Sensitivity (1W/1m) 90 dB
Woofer Size 25 cm
Woofer Material Interlaced Basalt / Aaramid Fibre Reinforced IMPP Composite Cone
Dual 4-ohm voice coil: 2 or 8 ohm Yes
Voice Coil Type Cloth-wound coil with phenolic coating
Pole Yoke Type Extended and vented pole yoke
Magnets Double-stacked, high power
Terminals Push-type
Recommended Box Volume (liters) 18.4 - 35.9 liters
Perimeter Profile 3-Layer Fiber Woven Radial Surround
Thiele Parameters TS-W258D4
Nom. Dia. (In) 10
Qts 0.58
Qms 13.64
Qes 0.61
Fs [Hz] 40.5
Vas [l] 15.47
Vas [ft3] 0.550
Vd [l] 0.360
Vd [ft3] 0.01273
Sd [m2] 0.03134
Sd [ft2] 0.337
Revc [Ω] DUAL3.0
Levc [mH] (2000Hz) 3.59 (8Ω)
1.07 (2Ω)
Xmax [mm] 11.5
Xmax [in] 0.45
Zmax [Ω] 147.55 (8Ω)
38.80 (2Ω)
BI [Tm] 19.39 (8Ω)
9.65 (2Ω)
Rms[Ns/m] 2.601
Mms [g] 139.43
Cms [m/N] 0.00011
Mg.Wt.[g] 2100
Flux Density [Gauss] 5400
Hag [mm] 23
Hag [In] 0.91
Hvc [mm] 42.7
Hvc [In] 1.68
VC Diameter [mm] 48
Eff [%] 0.16
S.P.L. [dB] 90.0
R.M.S. Power [W] 350
M.M.P. [W] 1200
Displacement [l] 1.64
Displacement [ft3] 0.058
Recommended Box [l] 22.6
Recommended Box [ft3] 0.80
F0 (in cabinet) 52.6
Q0 (in cabinet) 0.753


Discontinued
