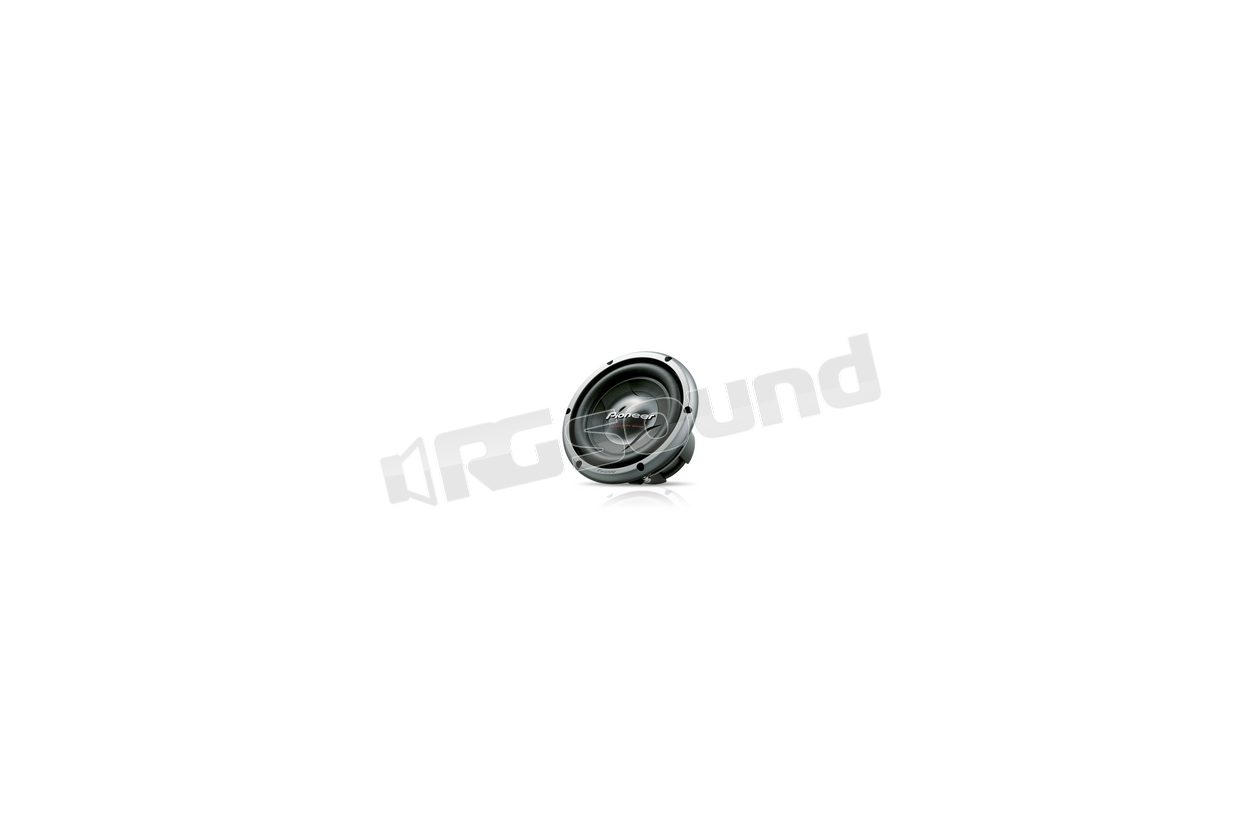

TS-W258D2

Pioneer

Discontinued

Your price:
€ 95,70
Price per single item (VAT included)
Type
Subwoofer
Speaker Size
250 mm
MAX Power
1200 Watt
RMS Power
600 Watt
Frequency Response
20 - 450 Hertz
Sensitivity
90 dB
Impedance
2 Ohm
Weight
8 Kg

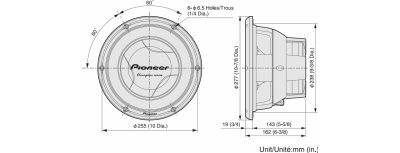

Installation Depth
143 mm
Woofer Material
IMPP™ rinforzato con fibre di vetro/carbonio intrecciate

More intense bass. More power. Greater flexibility.

Give power and vigor to the bass in your car, from the pedigree of subs that break world records. The TS-W258D2 model is equipped with a basalt and aramid fiber cone, which makes the body ultra rigid, yet lightweight, offering low distortion and powerful bass at high sound pressure levels.

It also allows greater flexibility. Thanks to the dual voice coil of 2Ω, you can choose the 1Ω or 4Ω setting (provided the subwoofer power is correct relative to the amplifier power).

Wiring and installation are made easier by the single-sided terminals. You can also improve the appearance (and protection) of the sub by adding an optional 3-spoke grille.

It is recommended to use the TS-W258D2 subwoofer enclosed; also available in the model with dual voice coil from 4 Ω.

Features

Features TS-W258D2
Maximum power 1.200 W
Rated input power 350 W
Impedance 2Ω
Frequency response 20 - 450 Hz
Lower resonance frequency (Hz) 37.4 Hz
Sensitivity (1W/1m) 90 dB
Woofer size 25 cm
Woofer material Interlaced Basalt / Aaramid Fibre Reinforced IMPP Composite Cone
Dual voice coil 4-ohm: 2 or 8 ohm Yes
Voice coil type Emery cloth voice coil coated with phenol
Pole yoke type Extended and ventilated pole yoke
Magnets Double-stacked, high power
Terminals Push-type
Recommended enclosure volume (liters) 18.4 - 35.9 litres
Perimeter profile 3-Layer Fiber Woven Radial Surround
Thiele Parameters TS-W258D2
Nom. dia. (In) 10
Qts 0.48
Qms 11.52
Qes 0.50
Fs [Hz] 37.4
Vas [l] 17.63
Vas [ft3] 0.620
Vd [l] 0.326
Vd [ft3] 0.01151
Sd [m2] 0.03134
Sd [ft2] 0.337
Revc [Ω] DUAL1.5
Levc [mH] (2000Hz) 2.2 (4Ω)
0.63 (1Ω)
Xmax [mm] 10.4
Xmax [in] 0.41
Zmax [Ω] 96.01 (4Ω)
19.95 (1Ω)
BI [Tm] 14.68( 4Ω)
7.34(1Ω)
Rms[Ns/m] 2.920
Mms [g] 143.28
Cms [m/N] 0.00013
Mg.Wt.[g] 2100
Flux density [Gauss] 6700
Hag [mm] 10
Hag [In] 0.39
Hvc [mm] 31
Hvc [In] 1.21
Voice coil diameter [mm] 48
Eff [%] 0.18
S.P.L. [dB] 90.0
R.M.S. power [W] 350
M.M.P. [W] 1200
Displacement [l] 1.64
Displacement [ft3] 0.058
Recommended enclosure [l] 22.6
Recommended enclosure [ft3] 0.80
F0 (in cabinet) 49.9
Q0 (in cabinet) 0.640
