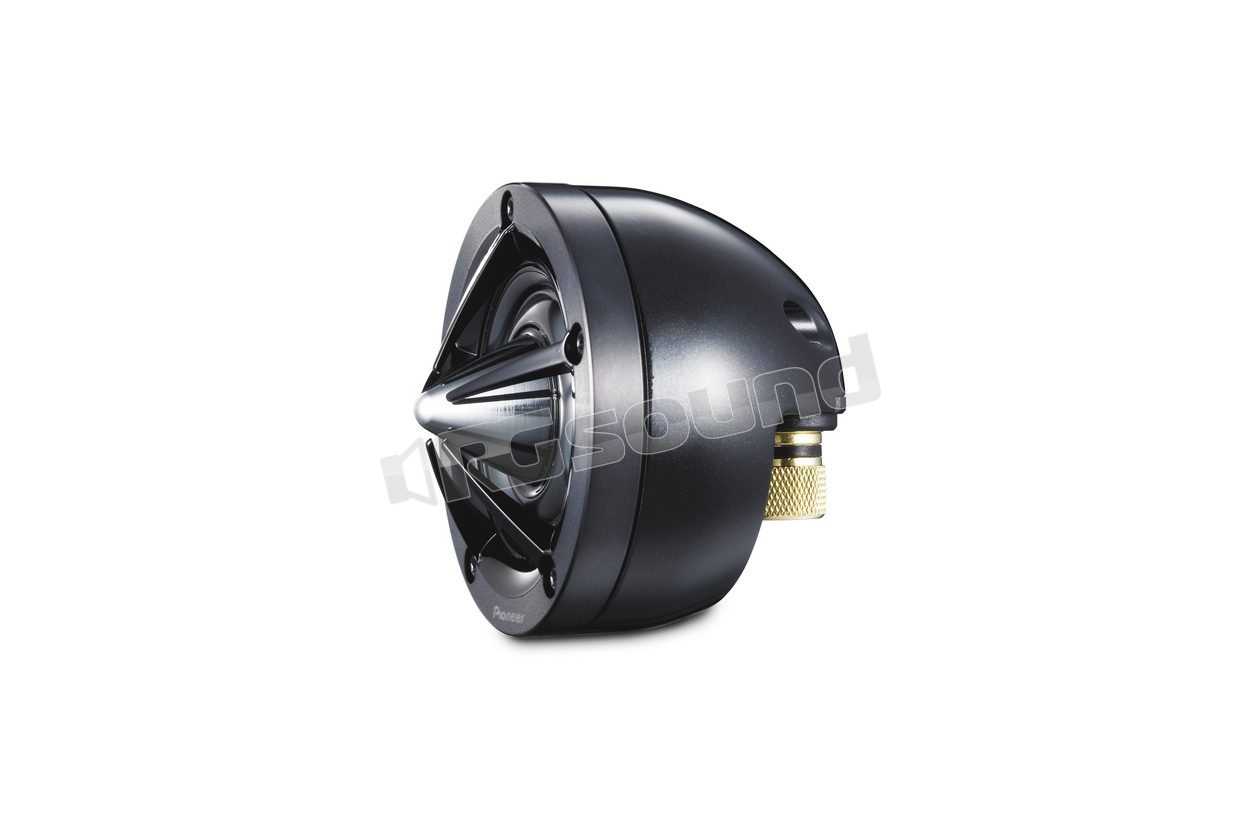

TS-T01RSII - TS-T01RS-2 Tweeter

Pioneer

Discontinued

Your price:
€ 1216,00
Price per pair (VAT included)
Type
Tweeter
Dome Size
35 mm
MAX Power
120 Watt
RMS Power
50 Watt
Frequency Response
1000-48000 Hertz
Sensitivity
95 dB
Impedance
6 Ohm
Outer Diameter
68x64 mm
Installation Depth
72 mm
Tweeter Material
Carbon Coating

TS-T01RSII - TS-T01RS-2 3.5cm Super Wide-Range tweeter Reference Series

35mm tweeter, Max power 120W, rated 50W

TS-T01RSII - TS-T01RS-2 super wide-range tweeter reproduces an extremely extended range: truly highest frequencies, as well as improving the reproduction of low frequencies. It guarantees precise, high quality audio and imbues every sound with a rich texture.

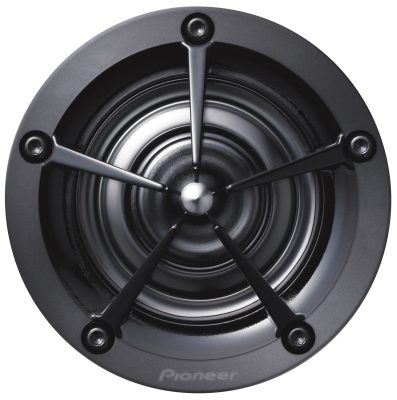

The 3.5 centimeters asymmetrical dual arc-ring diaphragm piston movement and gives optimizes the upper response. This crystalline reproduction allows beyond the audible spectrum -
up to 48 kHz - ideal for high resolution formats.

For an extremely rigid surface, Diamond Like Carbon coating is added to the ion-plated transformed plating. Distortion is significantly reduced, Ensuring a better tone matching with the other RSII series speakers and more uniform transitions at the crossover point between units.

A high-performance magnetic circuit expands bass capability, reducing the mass of vibrating parts and fine-tuned design operates greater magnetic force and improves overall reproduction efficiency. Specially worked brass The Equalizer Provides supreme Directivity and vibration control. Additional low-resonance materials include extremely rigid zinc die-cast frame, brass screws and a resonance-resistant tungsten.


Specifications

Features TS-T01RSII
Maximum power 120 W
Rated input power 50 W
Impedance 6Ω
Frequency response 1,000-48,000 Hz
Sensitivity (1W/1m) 95 dB
Tweeter Size (mm) 35.0 millimeters
Tweeter material Ion-plated dual arc-ring membrane with Diamond-Like Carbon Coating
Tweeter mounting kit included Aluminum mounting bracket included
Voice Coil Type Heat-resistant and aluminum ribbon coil
Magnets High-performance neodymium

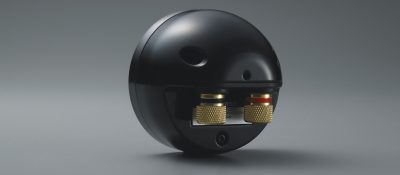

Screw terminals Gold-plated

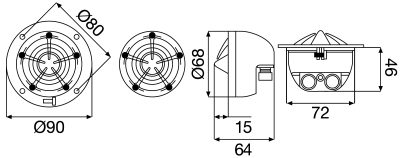

Dimensions Ø 68 x 64 (D) mm mm
Weight 0.63 kg
Mounting depth Ø 72 mm mm
Mounting hole 46 millimeters

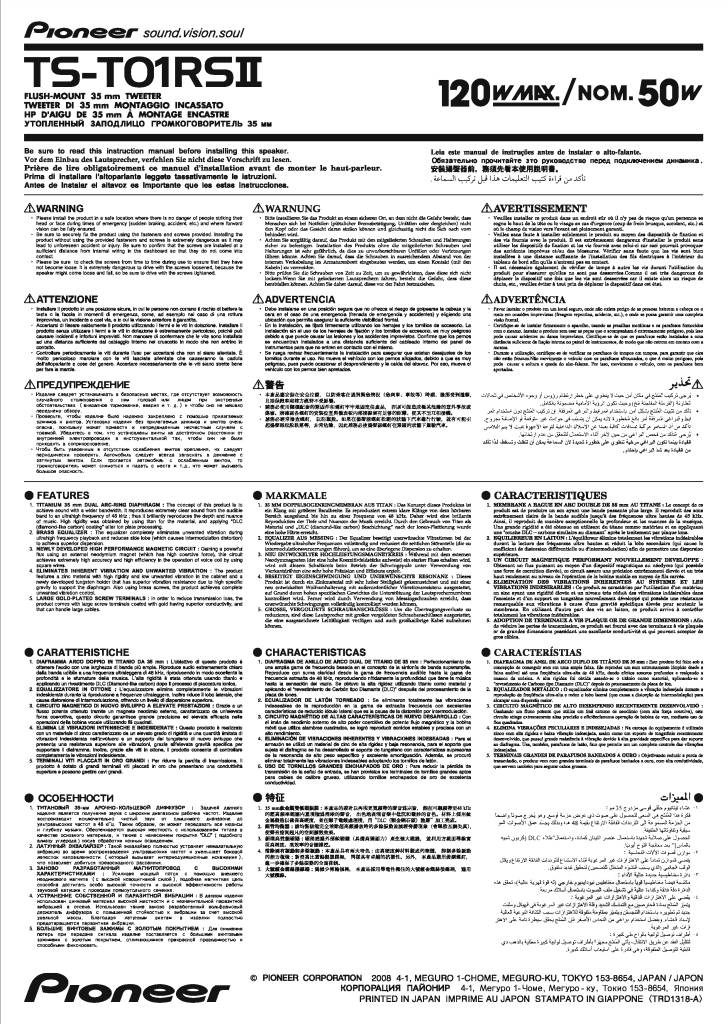

Manuale

20150831172414-ts-t01rsii-manual-en-fr-de-it-es-pt-rupdf.pdf
