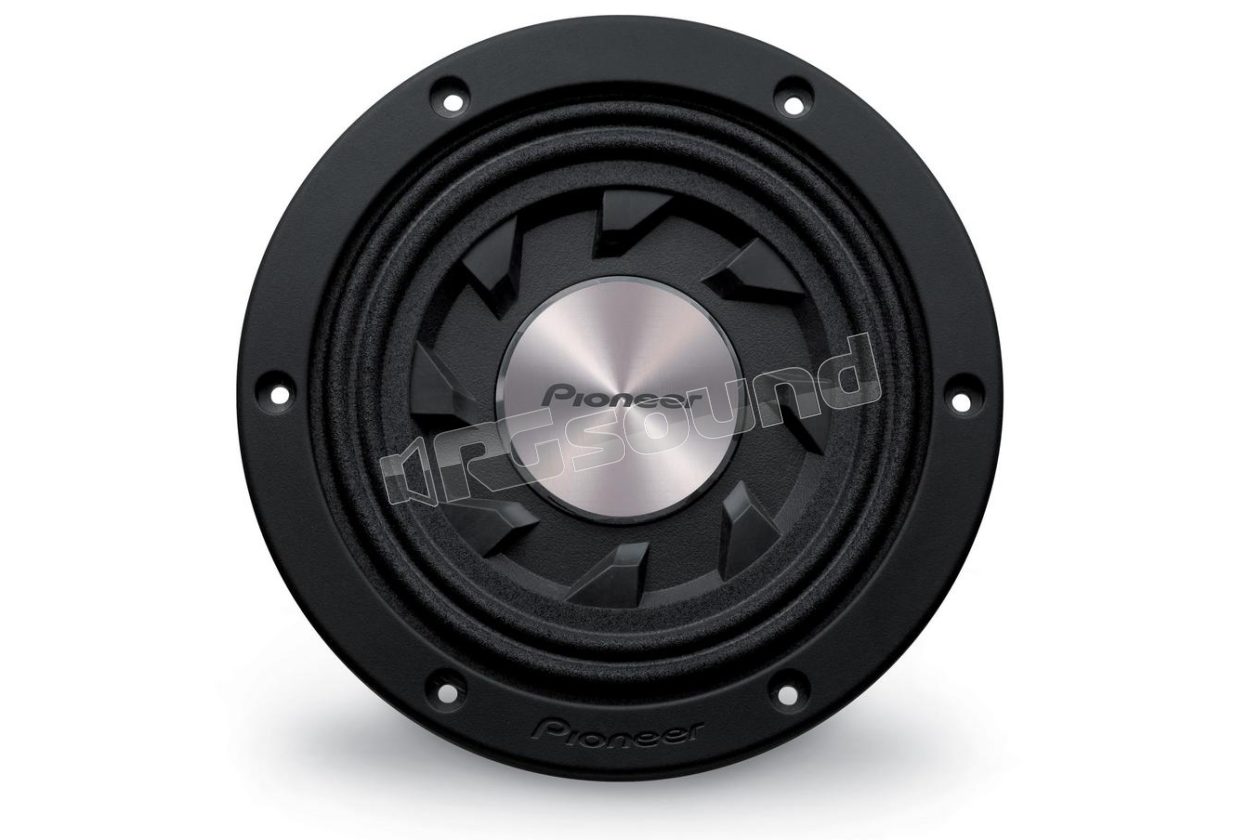

TS-SW841D

Pioneer

Discontinued

Your price:
€ 177,00
Price per single item (VAT included)
Type
Subwoofer
Speaker Size
200 mm
MAX Power
500 Watt
RMS Power
120 Watt
Frequency Response
30 - 1500 Hertz
Sensitivity
85 dB
Impedance
3,3 Ohm
Weight
5,8 Kg
Installation Depth
7.0 mm
Woofer Material
IMPP™ rinforzato con fibre di vetro/carbonio intrecciate

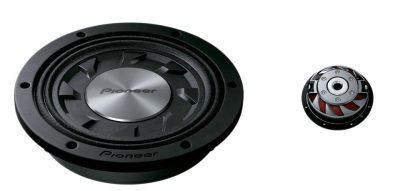

A powerful 20 cm subwoofer only 7.0 cm deep.

You can boost your car's audio with an easy-to-install subwoofer that delivers 500 W of pure, solid bass.
Designed for use in enclosed spaces, the TS-SW841D model combines a dual cone with woven glass fiber/carbon fibers reinforced with IMPP (Injection-Moulded Polypropylene), with an exceptional pneumatic suspension excursion control system.

A traditional subwoofer uses a flow regulator to control cone excursion. Our air suspension system creates a hermetically sealed air space between the two cones, which effectively replaces vibration and allows you to improve linearity, regardless of volume, for extraordinarily clear bass response and reduced distortion.

  • Maximum power 500 W

  • Rated input power 120 W

  • Frequency response 30 - 1500 Hz

  • Sensitivity (1W/1m) 85 dB

  • Woofer size 20 cm

  • Woofer material Upper cone IMPP™ reinforced with woven glass fiber/carbon fibers

  • Recommended enclosure volume (liters) 11.3

Thiele Parameters

  • Nom. dia. (In) 8

  • Qts 1.641

  • Qms 11.159

  • Qes 1.923

  • Fs [Hz] 67.5

  • Vas [l] 1.89

  • Vas [ft3] 0.067

  • Vd [l] 0.072

  • Vd [ft3] 0.00255

  • Sd [m2] 0.0206

  • Sd [ft2] 0.222

  • Revc [Ω] 3.3

  • Levc [mH] (2000Hz) 0.996

  • Xmax [mm] 3.5

  • Xmax [in] 0.14

  • Zmax [Ω] 25.210

  • BI [Tm] 9.349

  • Rms[Ns/m] 4.063

  • Mms [g] 106.67

  • Cms [m/N] 0.00005207

  • Mg.Wt.[g] 640

  • Flux density [Gauss] 6040

  • Hag [mm] 8

  • Hag [In] 0.315

  • Hvc [mm] 15

  • Hvc [In] 0.594

  • Voice coil diameter [mm] 40

  • Eff [%] 0.05

  • S.P.L. [dB] 85.0

  • R.M.S. Power [W] 120

  • M.M.P. [W] 500

  • Displacement [l] 1.00

  • Displacement [ft3] 0.035

  • Recommended enclosure [l] 11.32

  • Recommended enclosure [ft3] 0.40

  • F0 (in cabinet) 73.0

  • Q0 (in cabinet) 1.773

Discontinued
