TS-SW3002S4

Pioneer

Discontinued

Your price:
€ 199,00
Price per single item (VAT included)
Type
Subwoofer
Speaker Size
300 mm
MAX Power
1500 Watt
RMS Power
400 Watt
Frequency Response
20 -125 Hertz
Sensitivity
93 dB
Impedance
4 Ohm
Weight
5,9 Kg
Woofer Material
Polipropilene rinforzato Mica

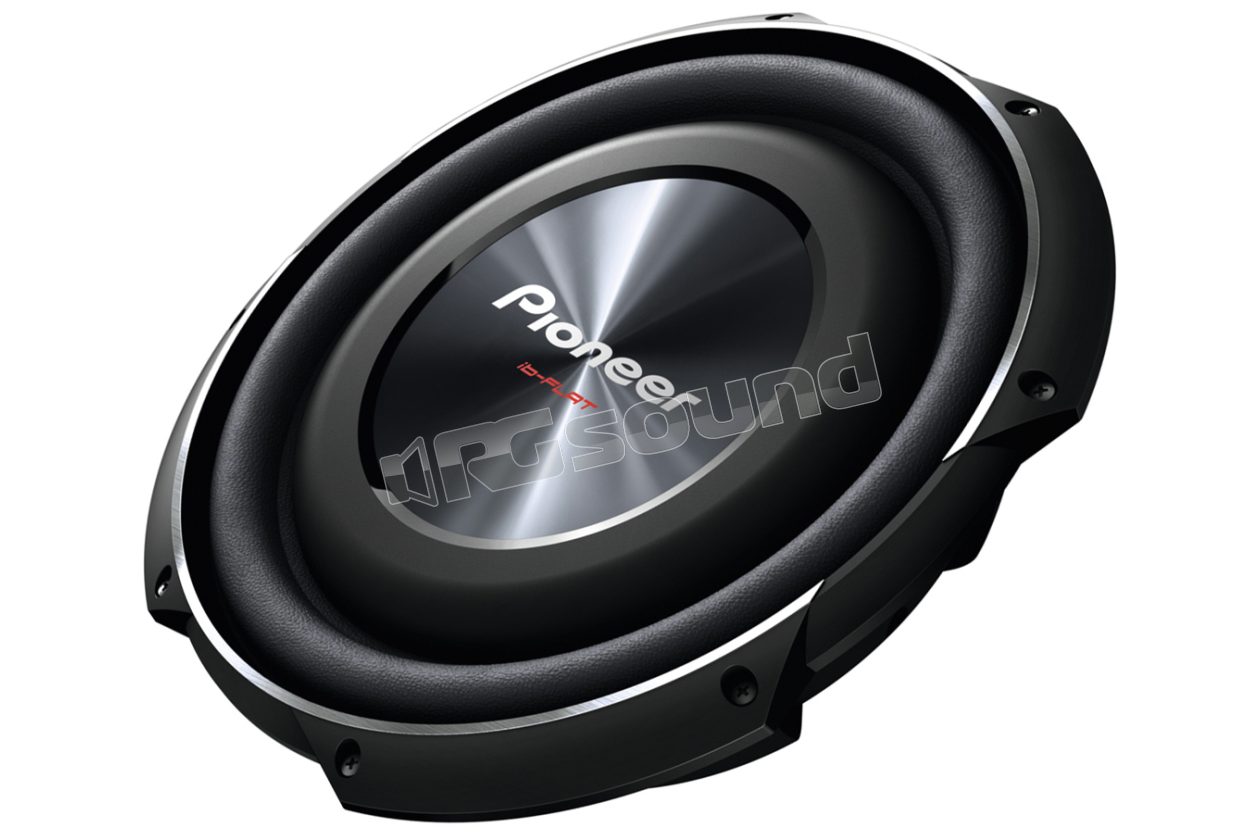

Pioneer TS-SW3002S4 Champion series subwoofer with larger cone, stronger bass, with single 30cm voice coil at 4Ω. TS-SW3002S4 offers great maximum power of 1500W. Pioneer's renowned design quality translates into rich and powerful sound.


Pioneer's Champion series subwoofers are renowned in the global professional competition circuit. TS-SW3002S4 has a 30cm diameter, features a depth of only 8.6cm and an oversized cone, which produces stronger bass than ever. Celebrate in-car audio with 1500 Watts of pure bass, superior without losing too much space in your car.

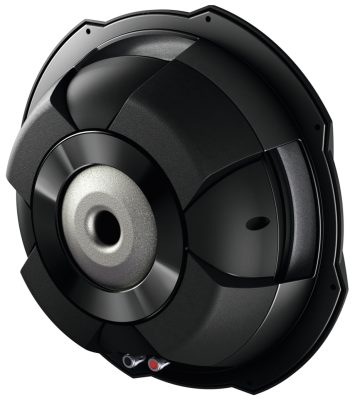

Designed to be used in enclosed spaces, the TS-SW3002S4 model is equipped with a single cone structure of larger dimensions with double surround (spider) to increase manageable power and generate more powerful and accurate bass. The single cone allows to keep the overall moving mass at manageable levels, which is extremely important for sound efficiency and quality.


A traditional subwoofer uses one surround to control the woofer cone excursion. The TS-SW3002S4 dual spiders are more efficient, since they require less power to move the cone, while producing bass with superb detail and low distortion.

TS-SW3002S4 Specifications

TS-SW3002S4 Features

Maximum Power 1,500 W
Nominal Input Power 400 W
Impedance 4Ω
Frequency Response 20 - 125 Hz
Lower Resonance Frequency (Hz) 35 Hz
Sensitivity (1W/1m) 93 dB
Woofer Size 30.0 cm
Woofer Material Mica-reinforced injection-molded polypropylene (IMPP) cone
Voice Coil Type Copper
Voice Coil Form Polyamide
Pole Yoke Type Ventilated projected pole yoke
Magnets Strontium ferrite
Terminals Push-type
Recommended Enclosure Volume (liters) 22.7 liters
Dimensions 326.6 x 326.6 x 103.6 mm
Weight 5.92 kg
Cutout with hole 298.0 mm
Mounting hole 86.0 mm


Thiele/Small Parameters TS-SW3002S4

Nom. Dia. (In) 12
Qts 0.61
Qms 13.95
Qes 0.64
Fs [Hz] 35
Vas [l] 35.4
Vas [ft3] 1.25
Vd [l] 0.51
Vd [ft3] 0.018
Sd [m2] 0.0578
Sd [ft2] 0.62
Revc [Ω] 3
Levc [mH] (2000Hz) 2.27
Xmax [mm] 8.8
Xmax [in] 0.35
Zmax [Ω] 70.37
BI [Tm] 17
Rms[Ns/m] 4.29
Mms [g] 243
Cms [m/N] 0.000085
Mg.Wt.[g] 2030
Flux Density [Gauss] 4500
Hag [mm] 10
Hag [In] 0.39
Hvc [mm] 28
Hvc [In] 1.1
VC Diameter [mm] 55
Eff [%] 0.23
S.P.L. [dB] 93
R.M.S. Power [W] 400
M.M.P. [W] 1500
Displacement [l] 1.11
Displacement [ft3] 0.039
Recommended Enclosure [l] 22.7
Recommended Enclosure [ft3] 0.8
F0 (in cabinet) 58
Q0 (in cabinet) 0.97

Pioneer Specialized Store (PSD). RGsound has been selected in Italy by Pioneer as a specialist retailer in the In-car Navigation & Entertainment sector.

PSD specialist centers have highly qualified installation personnel, so they can also guarantee excellent after-sales service. You will always be sure that your product has been installed in the best way.

Discontinued
