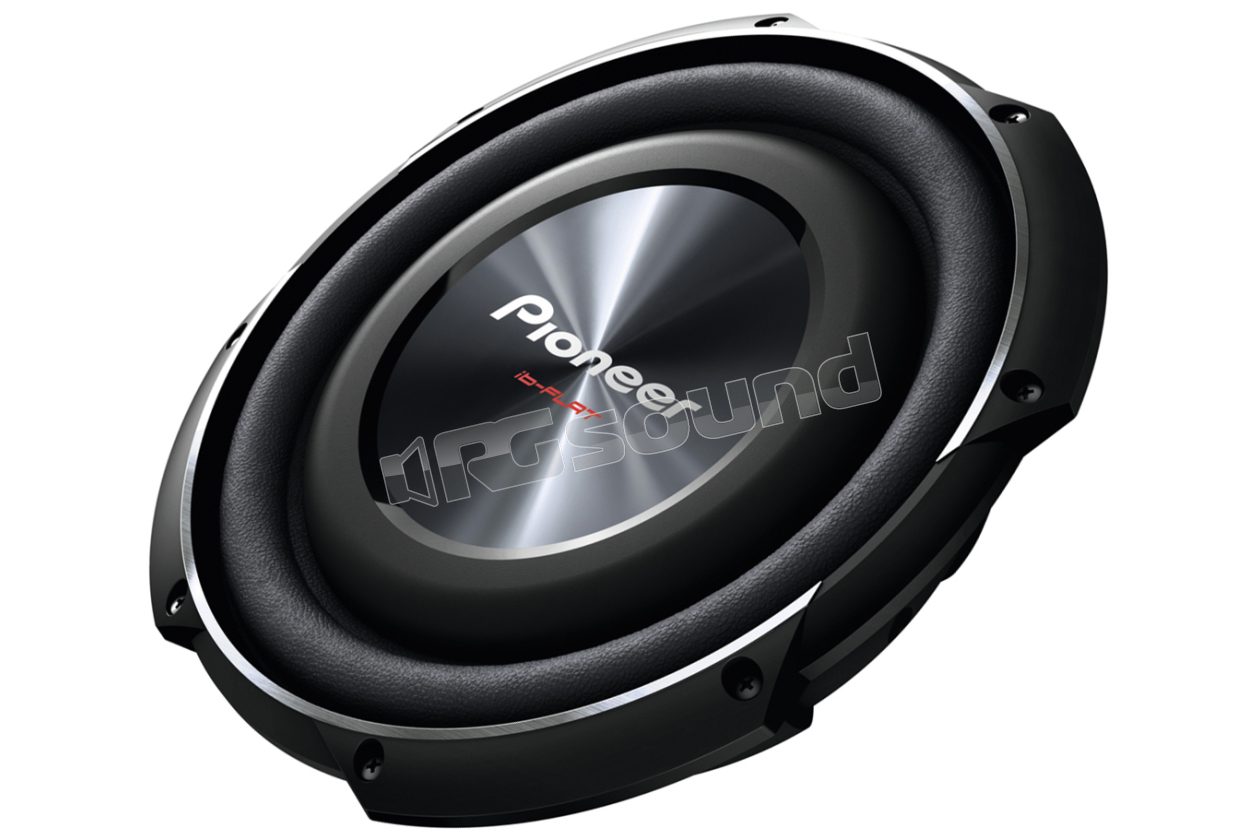

TS-SW2502S4

Pioneer

Discontinued

Your price:
€ 179,00
Price per single item (VAT included)
Type
Subwoofer
Speaker Size
100 mm
MAX Power
1200 Watt
RMS Power
300 Watt
Frequency Response
20 - 125 Hertz
Sensitivity
90 dB
Impedance
4 Ohm
Weight
3,5 Kg
Woofer Material
Polipropilene rinforzato Mica

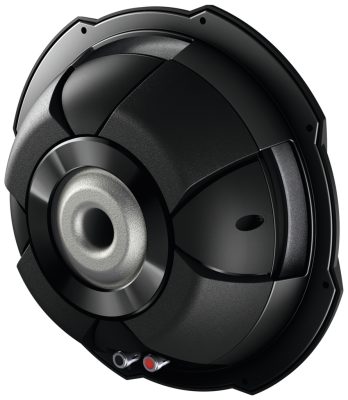

Pioneer TS-SW2502S4 Champion series subwoofer with larger cone, more powerful bass, with single 25cm voice coil at 4Ω. TS-SW2502S4 offers great maximum power of 1200W. Pioneer's famous design quality translates into rich and powerful sound.


Pioneer's Champion series subwoofers are renowned in the global professional competition circuit. TS-SW2502S4 25cm subwoofer features a depth of only 7.8cm and an oversized cone, which produces stronger bass than ever. Enhances in-car audio with 1200 Watts of pure bass, superior without losing too much space in the car.


Designed to be used in enclosed spaces, the TS-SW2502S4 model is equipped with an oversized single cone structure with double damper (spider) to increase manageable power and generate more powerful and accurate bass. The single cone allows you to keep the overall moving mass at manageable levels, which is extremely important for sound efficiency and quality.


A traditional subwoofer uses a damper to control the woofer cone excursion. The TS-SW2502S4 double spiders are more efficient, since they require less power to move the cone, while producing bass with superb detail and low distortion.

TS-SW2502S4 Specifications

TS-SW2502S4 Features

Maximum Power 1,200 W
Nominal Input Power 300 W
Impedance 4Ω
Frequency Response 20 - 125 Hz
Lower Resonance Frequency (Hz) 42 Hz
Sensitivity (1W/1m) 90 dB
Woofer Size 25.0 cm
Woofer Material Mica-reinforced injection-molded polypropylene (IMPP) cone
Voice Coil Type Copper
Voice Coil Form Polyamide
Pole Yoke Type Ventilated projected pole yoke
Magnets Strontium Ferrite
Terminals Push-type
Recommended Enclosure Volume (liters) 17 liters
Dimensions 277.5 x 277.5 x 93.2 mm
Weight 3.55 kg
Cutout with Hole 249.0 mm
Mounting Hole 78.0 mm


TS-SW2502S4 Thiele/Small Parameters

Nom. Dia. (In) 10
Qts 0.97
Qms 12.04
Qes 1.06
Fs [Hz] 42
Vas [l] 18.5
Vas [ft3] 0.65
Vd [l] 0.26
Vd [ft3] 0.00916
Sd [m2] 0.0399
Sd [ft2] 0.43
Revc [Ω] 3
Levc [mH] (2000Hz) 1.91
Xmax [mm] 6.5
Xmax [in] 0.26
Zmax [Ω] 40.99
BI [Tm] 12
Rms[Ns/m] 3.79
Mms [g] 171
Cms [m/N] 0.000082
Mg.Wt.[g] 1030
Flux Density [Gauss] 5600
Hag [mm] 10
Hag [In] 0.39
Hvc [mm] 23
Hvc [In] 0.91
VC Diameter [mm] 48
Eff [%] 0.13
S.P.L. [dB] 91
R.M.S. Power [W] 300
M.M.P. [W] 1200
Cone Displacement [l] 0.68
Cone Displacement [ft3] 0.024
Recommended Enclosure [l] 17
Recommended Enclosure [ft3] 0.6
F0 (in cabinet) 61
Q0 (in cabinet) 1.4
