TS-S01RSII - TS-S01RS-2

Pioneer

Discontinued

Your price:
€ 1216,00
Price per pair (VAT included)
Type
Midrange
Speaker Size
70 mm
MAX Power
60/50 Watt
RMS Power
15 Watt
Frequency Response
120-24000/70-24000 Hertz
Sensitivity
86 dB
Impedance
4 Ohm
Weight
0.44 Kg
Midrange Cone Material
Composito

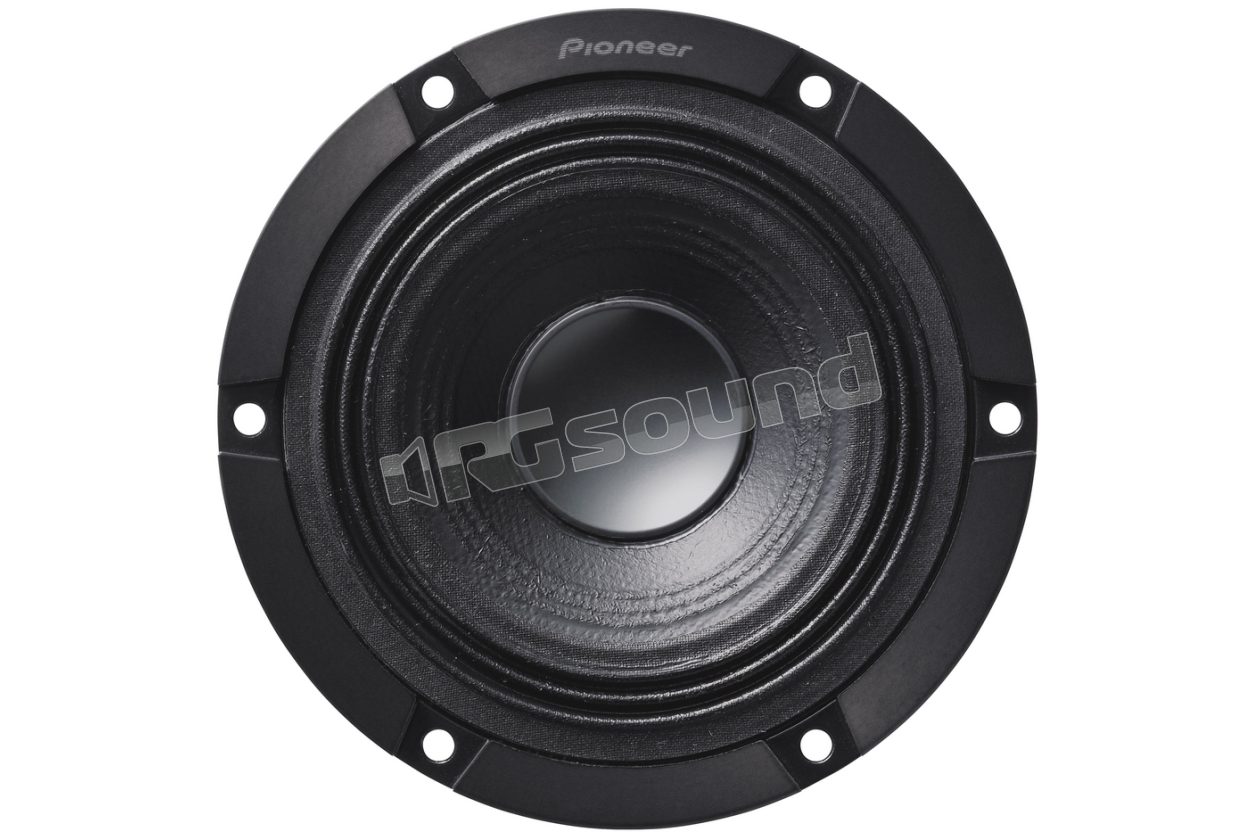

TS-S01RSII - TS-S01RS-2 7.7 centimeter Reference Series Midrange

Superior technology is instilled in this midrange speaker to reproduce an even wider audio range with better low frequencies. The result is an extremely natural and detailed sound with high separation.

The pulp-composite cone is very solid, increasing linearity and precision in reproduction. The Diamond Like Carbon coated titanium center cap is also plated with ion, which further improves rigidity and resonance reduction. These qualities also ensure better tone matching with the other RSII speakers.

A specially corrugated surround allows expanded cone movement while keeping resonance under control
to emphasize bass response.

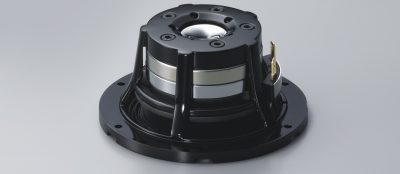

This speaker is equipped with a high-performance magnetic circuit with greater motor force, which offers excellent linearity from mid-bass to high frequencies. In order to achieve an extremely rigid design and low resonance, the zinc-plated basket and tungsten frame are joined at 5 points. A zinc die-cast rear chamber is included, making connection with the TS-T01RSII and TS-M01RSII speakers easier.

Without the chamber, the unit can function as a mid-woofer.


TS-S01RSII - TS-S01RS-2 Specifications

Features TS-S01RSII
Maximum Power 60W (with rear chamber) / 50W
Rated Input Power 15W
Impedance 4Ω
Frequency Response 120 - 24,000 Hz with rear chamber / 70 - 24,000 Hz
Sensitivity (1W/1m) 86 dB
Midrange Size (mm) 77.0 mm
Midrange Material • Pulp-Composite cone with reinforcing ribs
• Ion plated titanium center cap with diamond-like carbon coating
Voice Coil Type Lightweight high-transient voice coil
Magnets High-performance neodymium
Screw Terminals Gold Plated

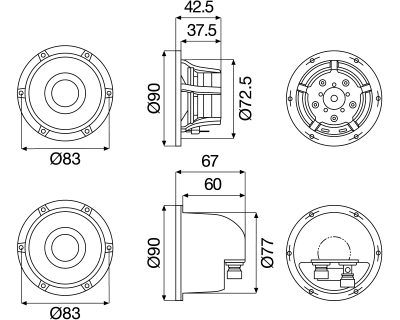

Dimensions Ø 90 x 42.5 (D) / with rear chamber: 67 mm
Weight 0.44 kg
Cut-out Hole Ø 72.5 mm (Ø 77 mm with rear chamber)
Mounting Hole 37.5 mm
Surround Corrugated surround coated with damping material on front and rear




Discontinued
