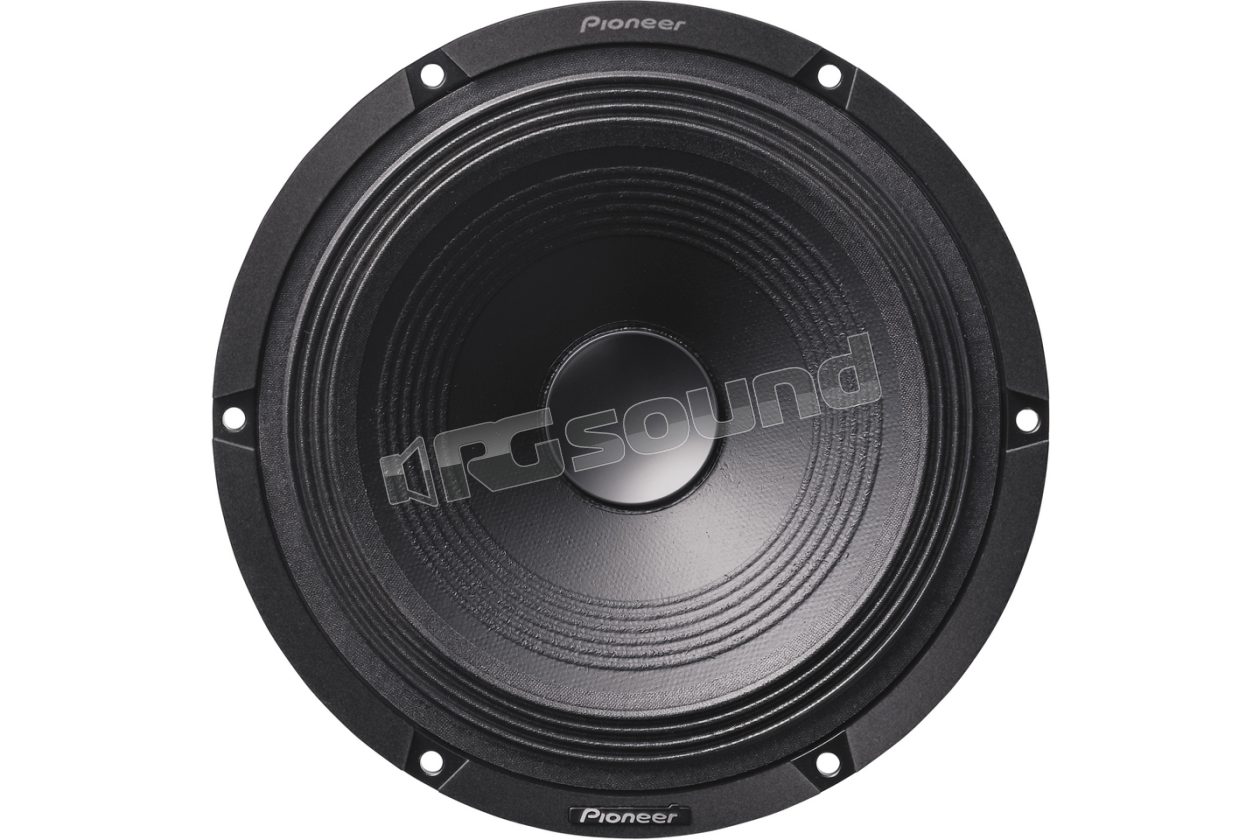

TS-M01RSII - TS-M01RS-2

Pioneer

Discontinued

Your price:
€ 1216,00
Price per pair (VAT included)
Type
Woofer and midwoofer
Speaker Size
170 mm
MAX Power
120 Watt
RMS Power
50 Watt
Frequency Response
35-12000 Hertz
Sensitivity
89 dB
Impedance
4 Ohm
Weight
1.56 Kg
Installation Depth
69 mm
Woofer Material
Composito

TS-M01RSII - TS-M01RS-2 17cm Reference Series Mid-bass driver

This masterfully designed mid-bass driver has been engineered to faithfully reproduce the entire sound spectrum, with a greater emphasis on a solid, full-bodied character for the low-mid range.

For more accurate reproduction of the original sound, the rigid composite pulp-based cone offers exquisite, highly linear sound quality. The Diamond Like Carbon coated titanium center cap with ionic plating increases rigidity and reduces resonance.

With greater detail, it guarantees a better tone matching with other RSII speakers. To increase mid-bass capacity, a new corrugated frame design has been integrated. Cone movement can be extended without increasing resonance.

Additional driving force is also part of the design, thanks to a high-performance magnetic circuit - which offers excellent linearity from mid bass to high frequencies.

Finally, the resonance-resistant tungsten pole piece and zinc basket frame are connected at 5 points to eliminate vibration and interference between structures.

Specifications

Features TS-M01RSII
Maximum Power 120 W
Rated Input Power 50 W
Impedance 4Ω
Frequency Response 35 - 12.000 Hz
Sensitivity (1W/1m) 89 dB
Midrange Size (mm) 170.0 millimeters
Midrange Material • Pulp composite cone with reinforcement ribs
• Ion plated titanium center cap with diamond-like carbon coating
Voice Coil Type Lightweight high voice transient
Magnets High-performance neodymium
Screw Terminals Gold Plated

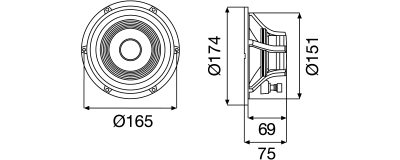

Dimensions Ø 174 x 75 (D) mm
Weight 1.56 kg
Cut-out Hole Ø 151 millimeters millimeters
Mounting Depth 69 millimeters millimeters
Surround Corrugated surround coated with damping material on the front and rear



Discontinued
