TS-G173Ci

Pioneer

Discontinued

Your price:
€ 59,90
Price per single item (VAT included)
Type
2-way separate kit
Frequency Response
30 - 28.000 Hertz
Woofer Size
165 mm
Tweeter Size
30 millimetri
MAX Power
280 Watt
RMS Power
45 Watt
Sensitivity
91 dB
Impedance
4 Ohm
Woofer Material
IMPP
Tweeter Material
PEI

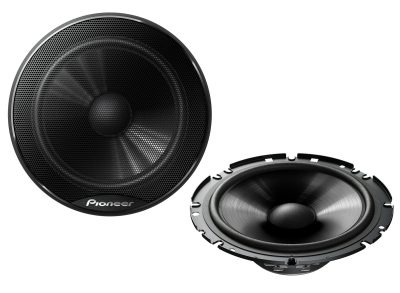

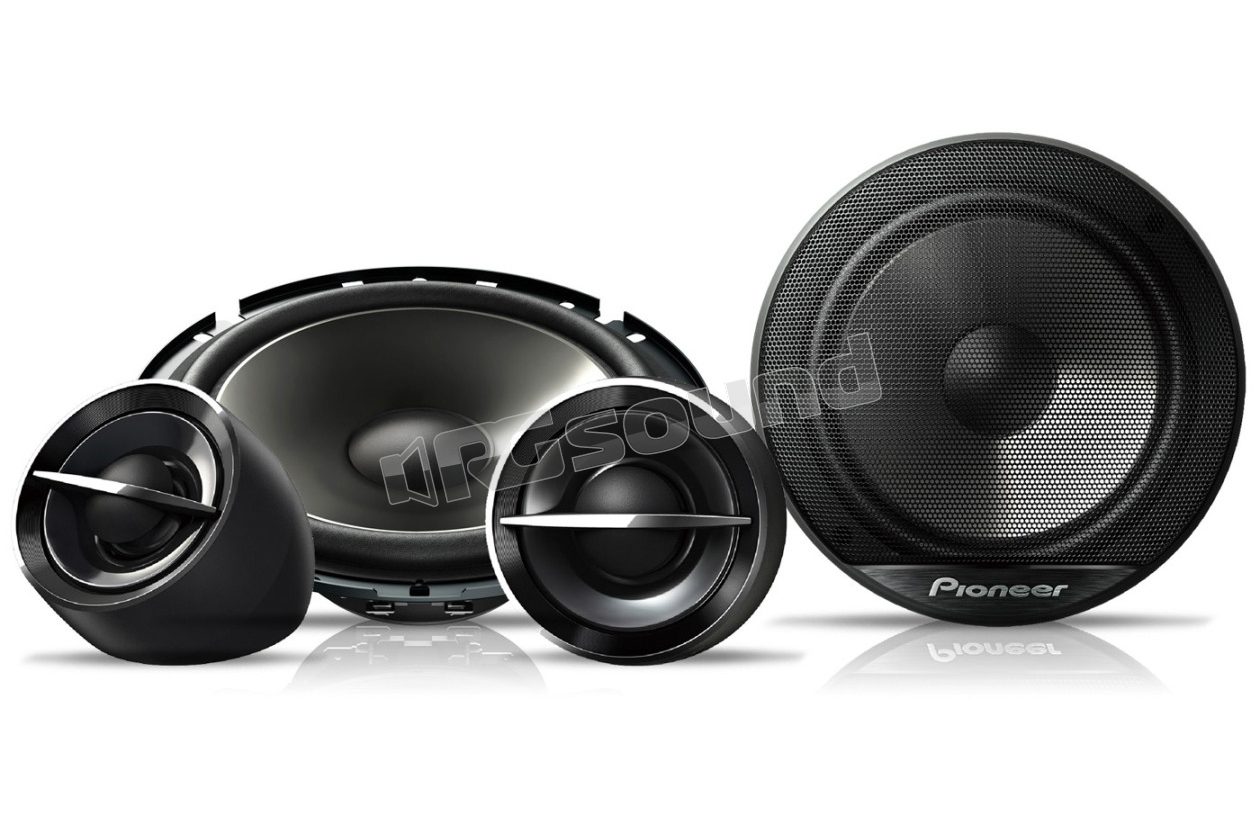

Pioneer TS-G173Ci 2-way separate kit composed of a pair of 17 cm woofers and a pair of 30 mm tweeters. Max power 280W.

TS-G173Ci 2-way speaker system with 17 cm diameter, 45 Watt nominal power and 280 Watt maximum output power, part of Pioneer's renewed and improved G series developed to offer good sound quality with an excellent value for money ratio.

Improved vocal sound and bass

The speakers in the TS-G173Ci kit are equipped with a narrow Piezo tweeter, which assists the woofer in reproducing high frequencies. The insertion of a high-end copper ring and a high-rigidity cone (IMPP™) further extends these frequencies. Moreover, the copper ring reduces distortion, while the resistant cone produces pounding bass.

Sturdy design for greater solidity yet lightweight, easy to install.

TS-G173Ci Features

  • Maximum power 280 W

  • Nominal input power 45 W

  • Impedance 4Ω

  • Frequency response 30 - 28,000 Hz

  • Lower resonance frequency (Hz) 76 Hz

  • Crossover frequency 4.600 Hz

  • Sensitivity (1W/1m) 91 dB

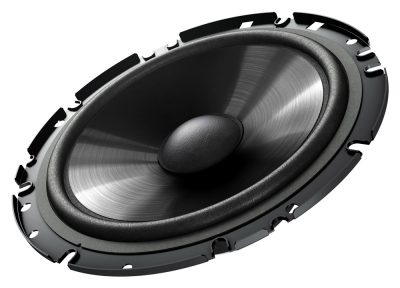

  • Woofer size 17 cm

  • Woofer material IMPP composite cone

  • Tweeter size 30 mm

  • Tweeter material PEI

  • Voice Coil Type Copper

  • Voice Coil type Polyimide

  • Magnets Woofer: ferrite
    Tweeter: neodymium

  • Weight 0.68 kg

  • Cutout with hole 144 mm

  • Mounting hole 46 mm

Scheda tecnica

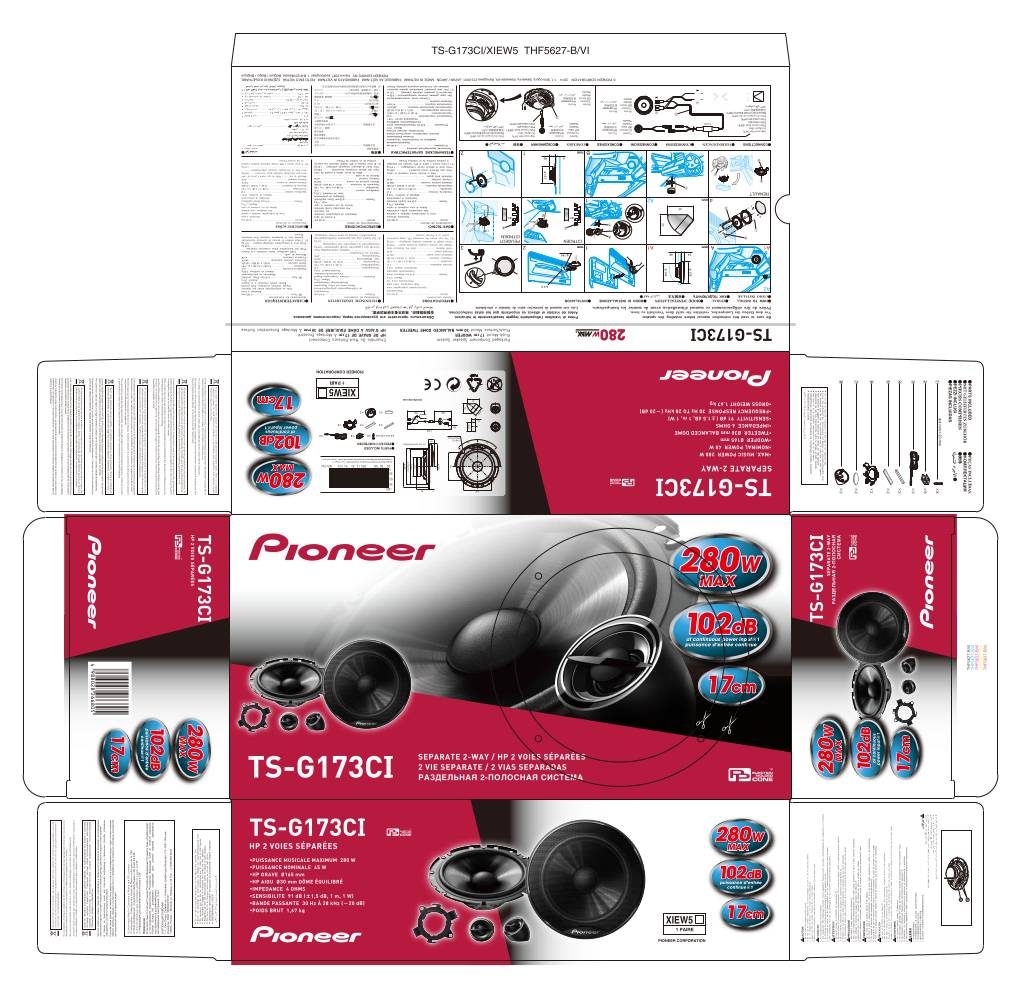

20141202110801-ts-g173ci-manuale.pdf
Discontinued
