TS-C132PRS

Pioneer

Discontinued

Your price:
€ 619,00
Price per single item (VAT included)
Type
2-way separate kit
Frequency Response
30 -35.000 Hertz
Woofer Size
130 mm
Tweeter Size
28 millimetri
MAX Power
150 Watt
RMS Power
30 Watt
Sensitivity
86 dB
Impedance
4 Ohm
Woofer Material
IMPP
Tweeter Material
Magnete in Neodimio

The TS-C132PRS system with 13 cm separate speakers is part of Pioneer's Reference series, designed to offer precise acoustic quality and competition-level power. The improvements also include acoustic performance and woofer installation.



The back of the tweeter has been enlarged to allow for a lower frequency response compared to previous models. The use of a PCOCC cable, in pure copper, delivers a cleaner and more detailed sound. Additionally, the tweeter now features a black frame.

To ensure better quality and power management for the lower ranges, the new subwoofer features a progressive damper. An internal magnet further improves sound quality and installation as well.

These improvements guarantee high-definition sound with very low distortion whose highs, even with broad stereoscopic staging, are able to have no rivals.

Features

  • Maximum power 150 W

  • Nominal input power 30 W

  • Impedance 4 Ω

  • Frequency response 30 - 35.000 Hz

  • Lower resonance frequency (Hz) 50 Hz

  • Sensitivity (1W/1m) 86 dB

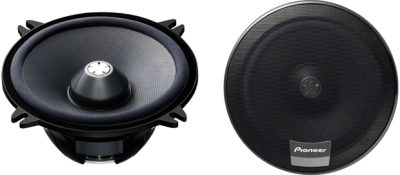

  • Woofer size 13 cm

  • Woofer material Woofer with IMPP™ composite cone in multilayer aramid fiber

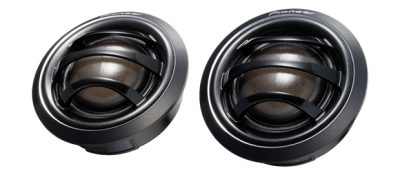

  • Tweeter size 28.0 mm

  • Tweeter material Soft dome

  • Tweeter installation kit Angled spacer for surface mounting, flash mounting adapter and invisible mounting adapter

  • Magnets Neodymium

  • Dimensions Without grille: 149 x 67 mm / With grille: 155 x 80 mm

  • Weight •Woofer: 0.87 kg
    • Tweeter: 0.1 kg
    • Filter: 0.52 kg

  • Cutout with hole 123 mm mm

  • Mounting hole 57.3 mm mm

Thiele/Small Parameters

  • S.P.L. [dB] 86 (± 1.5)

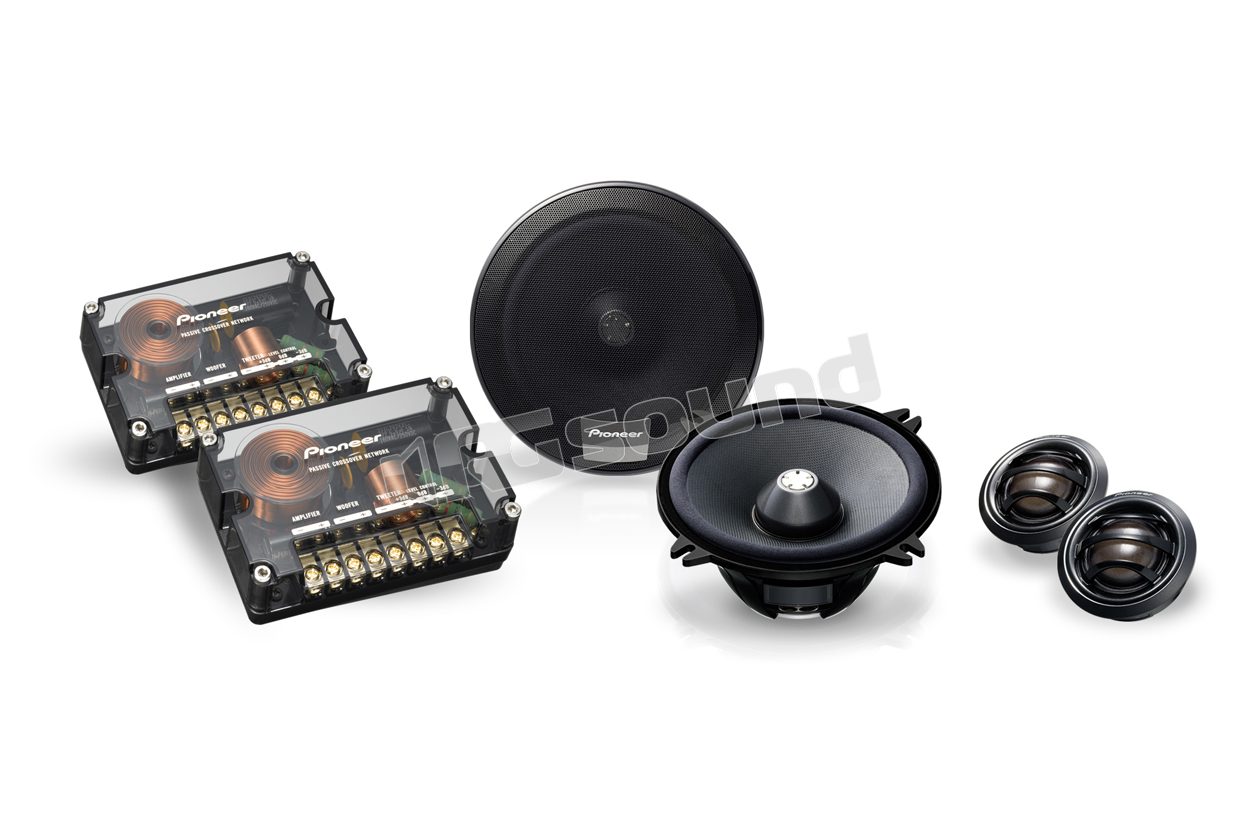

Pair of woofers Pair of tweeters Pair of crossovers
Discontinued
