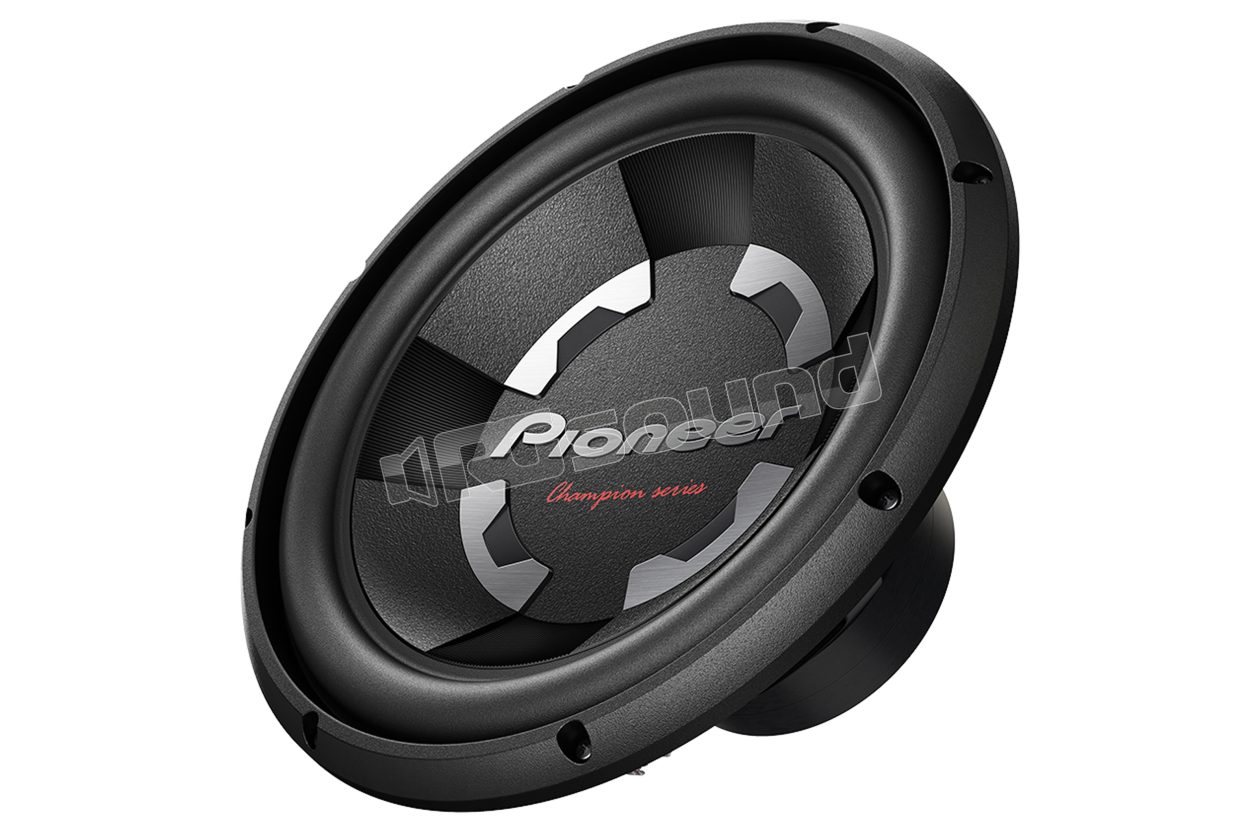

TS-300D4 30cm Champion Series dual voice coil subwoofer

Pioneer

Discontinued

Your price:
€ 96,70
Price per single item (VAT included)
Type
Subwoofer
Speaker Size
300 mm
MAX Power
1400 Watt
RMS Power
400 Watt
Frequency Response
20 - 100 Hertz
Sensitivity
96 dB
Impedance
4+4 Ohm
Weight
4,4 Kg
Installation Depth
147 mm
Woofer Material
Cono composito IMPP

Pioneer TS-300D4 30cm Subwoofer Champion series dual coil

Pioneer subwoofers from the Champion series are powerful, robust and can handle high power levels at high volumes without compromises for superior quality. Pioneer TS-300D4 is a 30 cm subwoofer with dual 4 Ohm coil (4 Ohm x 2) delivers 1,400 W of maximum power and 400 W of nominal power. It can be used both in a box and in free air contained in an enclosure. Equipped with dual spider drive and motor assembly, they allow you to reproduce dynamic and deep audio that reflect the name of the Champion series.

These models are also equipped with Pioneer's exclusive Dust Protection, which prevents dust from interfering with and compromising the performance and reliability of the subwoofer. Pioneer subwoofers from the Champion series guarantee rhythmic, deep and precise bass, thanks to innovative technologies such as proprietary IMPP composite cone materials, rigid 3D cone-shaped design and large stacked dual magnets. Powered by Pioneer GM-A series amplifiers, Pioneer Champion series subwoofers are able to deliver truly powerful, rich and high quality bass, regardless of volume level.

Scheda tecnica

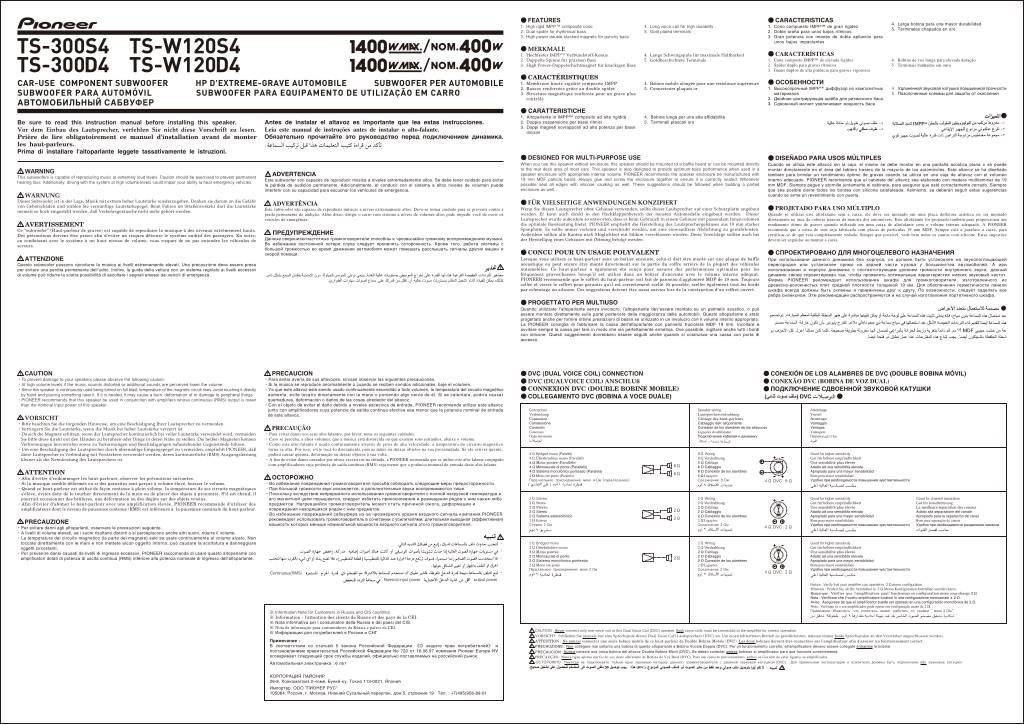

n-20210610111707-ts-300s4-manual-en-fr-de-it-pt-ru-es.pdf

Pioneer TS-300D4 Technical Specifications

  • Dual Ferrite Magnet
  • Weight 4.4 kg
  • Recom. Enclosure [l] 35.38 (from 24.1 liters to 49.5 liters)
  • Recom. Enclosure [ft³] 1.25
  • Size 30 cm
  • Maximum input power 1400 W
  • Nominal input power 400 W
  • Frequency response 20 - 100 Hz
  • Sensitivity 96 dB
  • Impedance 4+4 Ω
  • Mounting depth 147 mm
  • Hole cutout 281 mm
  • Woofer material IMPP
  • Voice Coil Type: Polyimide with 4-layer wrapped copper wire
  • Lower resonance frequency (Hz) 27 Hz
