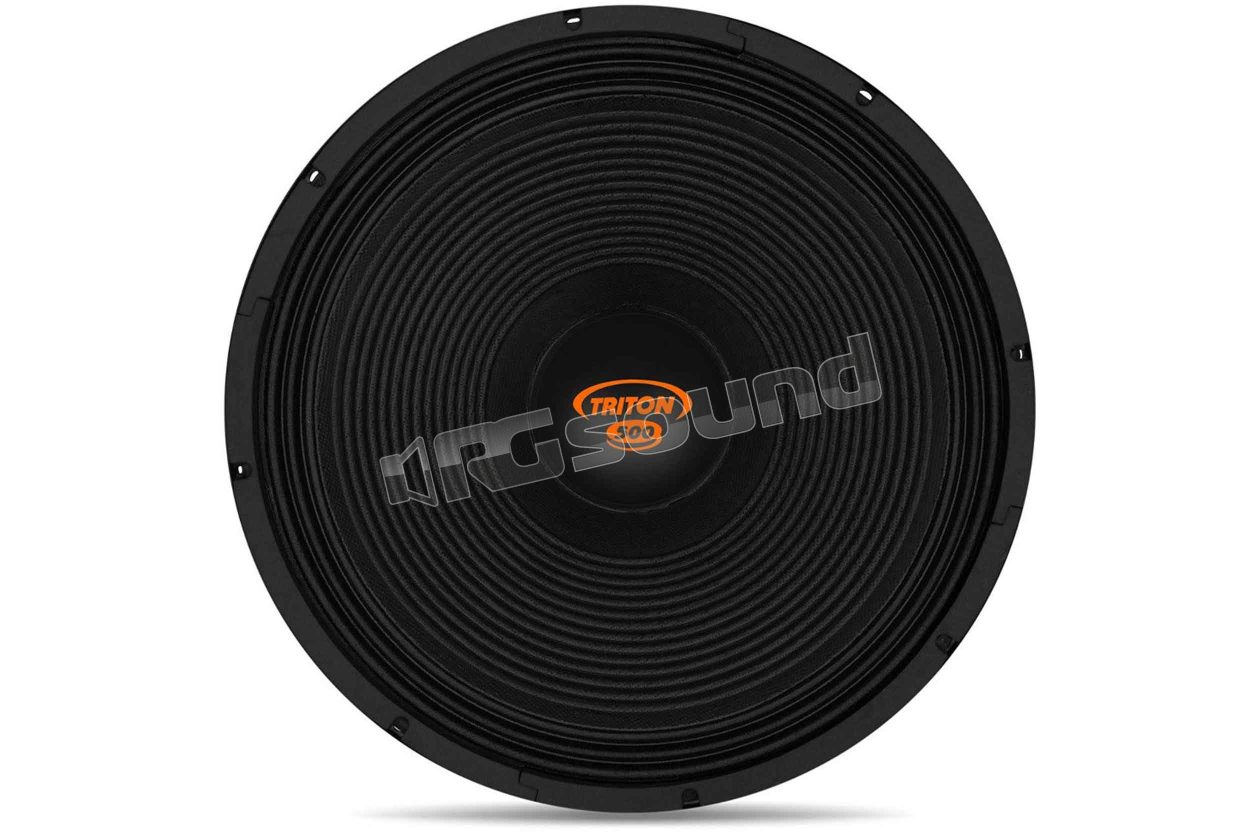

TR500-15 38cm woofer

Triton

Discontinued

Your price:
€ 239,00
Price per single item (VAT included)
Type
Woofer and midwoofer
Speaker Size
380 mm
MAX Power
1.000 Watt
RMS Power
500 Watt
Frequency Response
40 - 4.500 Hertz
Sensitivity
97 dB
Impedance
4 Ohm
Installation Depth
170 mm
Woofer Material
Cestello in acciaio

Triton TR500-15 woofer 38 cm (15") with a nominal power of 500W RMS and a sensitivity of 97 dB SPL, impedance 4 Ohm

This Triton 15 inch woofer is made with a modern design combined with unmatched performance. All of its power is enhanced by the frequency response from 40 to 4,500Hz and a high efficiency cooling system that contributes to the long life of the TR500-15, improving its operation.

Triton TR500-15 technical specifications

Woofer diameter: 380 mm (15")

Single 3" voice coil with copper wire

Nominal impedance: 4 Ohm

RMS power: 500W

Musical power: 1000W (PMPO)

Ferrite magnet diameter: 169 mm

Magnet height: 24 mm

High efficiency cooling technology

Sensitivity (1W @ 1m): 97 dB SPL

R.E. resistance: 2.6

Frequency response: 40 @ 4500Hz

Resonance frequency: 47 Hz

Flux density in GAP: 10,000 Gauss

Liters: 65L

Optimization: 60 Hz

Cutoff frequency: H.P.F 63 Hz and 4,500 Hz L.P.F

Steel basket

Installation depth 170 mm

Discontinued
