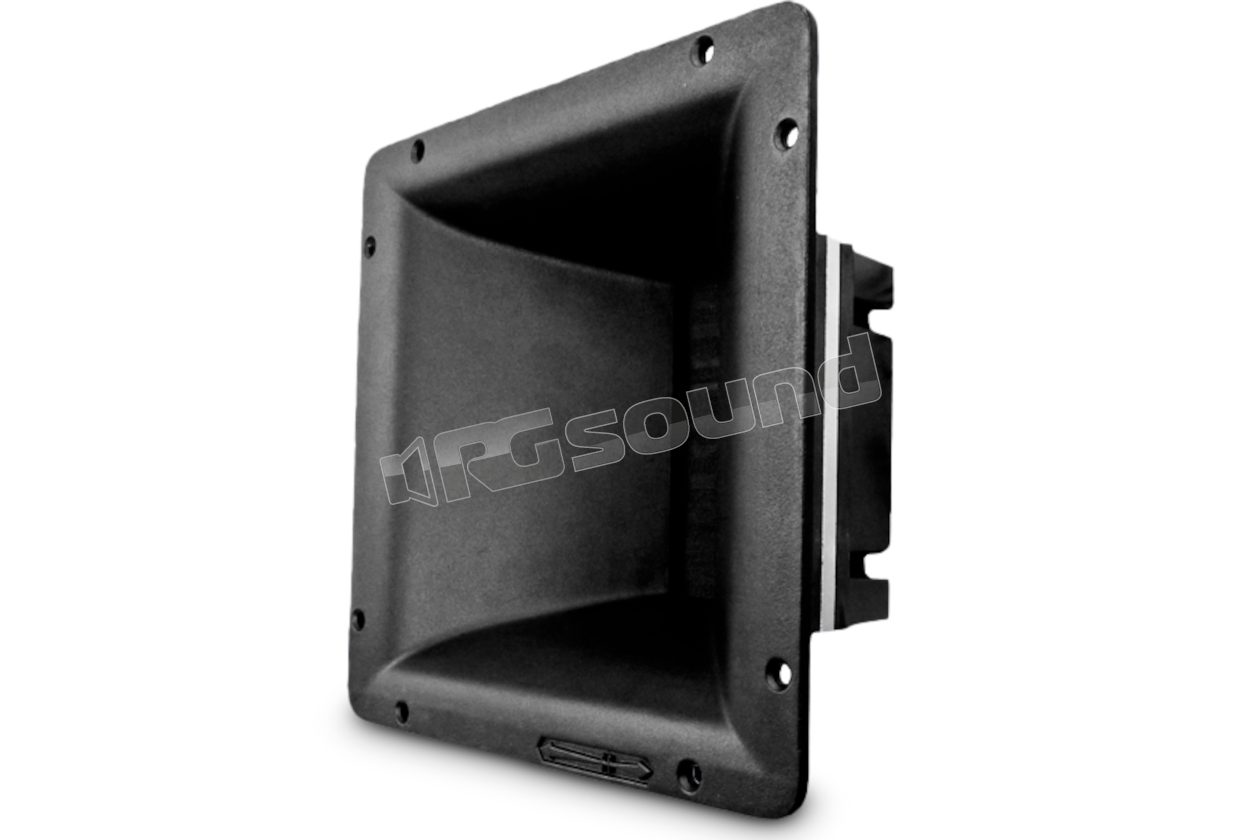

TPL-200/H Pleated diaphragm tweeter with horn

Beyma
Your price:
€ 762,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Super Tweeter
Speaker Size
Other sizes
MAX Power
240 Watt
RMS Power
120 Watt
Frequency Response
1000 - 23000 Hertz
Sensitivity
104 dB
Impedance
8 Ohm
Weight
3,55 Kg

Beyma TPL-200/H Pleated Diaphragm Tweeter with Horn

TPL-200/H Features

  • Superior sound reproduction quality
  • Extended frequency response (1 - 23 kHz)
  • High sensitivity (104 dB)
  • High power handling 240 W (X-bow® program)
  • Extremely linear frequency response
  • Very low distortion
  • 80º x 30º cast aluminum horn
  • Designed for High End systems

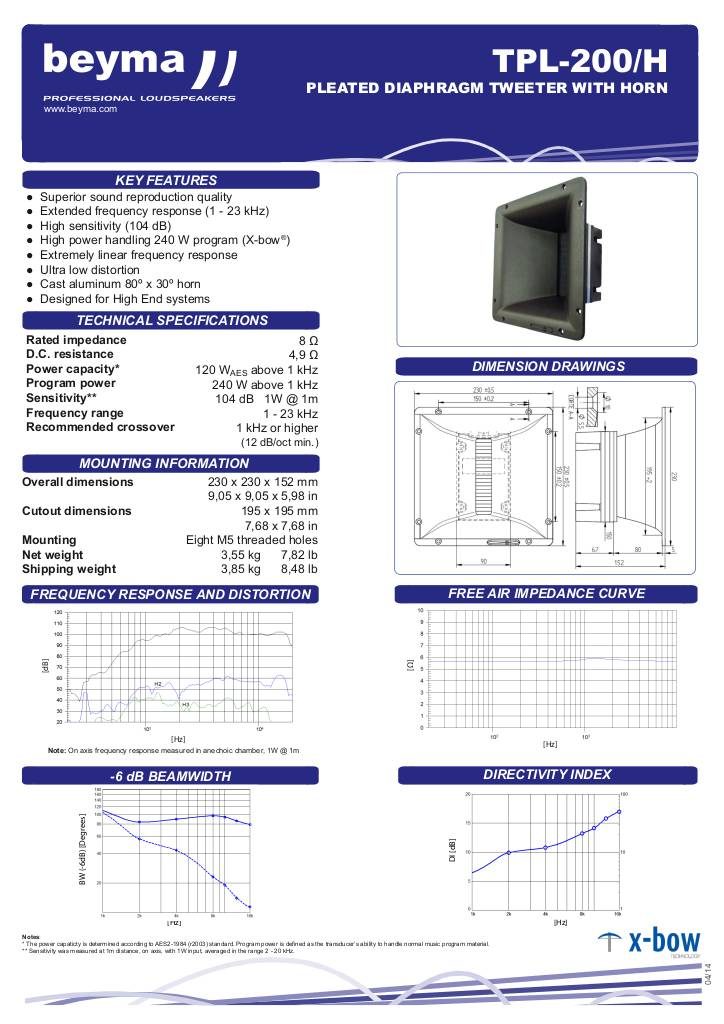

Scheda Tecnica

n-20240514103645-beyma-speakers-data-sheet-amt-tpl200h.pdf

Beyma TPL-200/H Technical Specifications

  • Nominal impedance 8 Ohm
  • Electrical resistance 4.9 Ohm
  • Power capacity 120 W AES above 1 kHz
  • Program power 240 W above 1 kHz
  • Sensitivity 104 dB 1 W @ 1 m
  • Frequency range 1000-23000 Hz
  • Recommended crossover frequency 1 kHz or higher (minimum slope of 12 dB/oct.)
  • Diaphragm material Kapton
  • Dimensions 230x230x152 mm
  • Net weight 3.55 kg
  • Total weight 3.9 kg
  • Magnet Neodymium
