TH 6.5 II sax con difetto estetico 165mm woofer, Thesis series

Audison

Discontinued

Your price:
€ 735,00
Price per pair (VAT included)

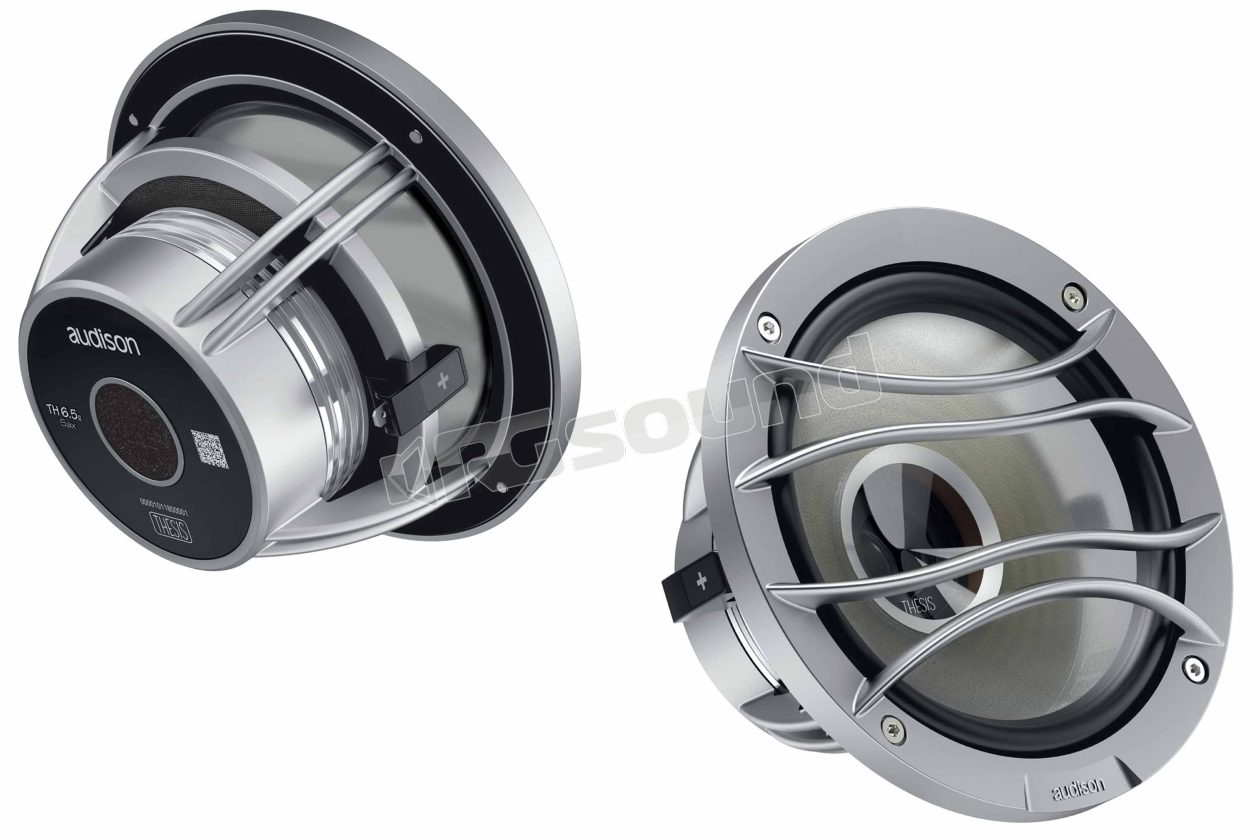

Pair of Audison TH 6.5 II sax 165mm woofer with grille with minor cosmetic defect ( contact us for information at 0577-716097 ).
Attention: the product is perfectly intact and fully functional in all its parts, official 2 year warranty.

TH 6.5 II sax is designed with the purpose of overcoming all limits, achieving extreme performance together with design projected into the future, faithful to the inspiring principle of maximum fidelity of musical reproduction.

MAXIMUM LINEARITY, MINIMUM INDUCTANCE, EXCELLENT VENTILATION
The magnetic circuit uses an N48 "H-grade" neodymium magnet that releases a very high amount of energy and is extremely stable, guaranteeing unmatched dynamics.
The dimensions of the magnetic group have been optimized through finite element simulation software to maximize its efficiency

A large amount of research has been carried out to reduce the inductance modulation of the voice coil through magnetic saturation, the motor pole and the use of an aluminum shorting ring allow greater extension towards the midrange frequencies.

Audison TH 6.5 II sax main features

50 mm voice coil in CCAR (copper-coated aluminum tape) wound with flat wire to maximize force factor and heat dissipation.
Low voice coil inductance to optimize emission in the mid-high band (2-3 kHz).
N48 "H-grade" neodymium magnet with excellent thermal stability to guarantee optimal dynamic reserve in every situation.
Membrane made of TPX®, a transparent material that reduces frequency response irregularity in the mid-high band, leaving the internal speaker in full view.
Membrane geometry designed using simulation software, to obtain regular emission at all listening angles.
Basket made from a single piece of die-cast aluminum with four pairs of spokes to optimize heat transfer, eliminate turbulent air flows and guarantee maximum structural rigidity.
Hi-excursion suspension and spider, optimized with multi-physics behavior simulations of speakers.
eID technology that provides traceability of TH 6.5 II from the production phase to the owner.

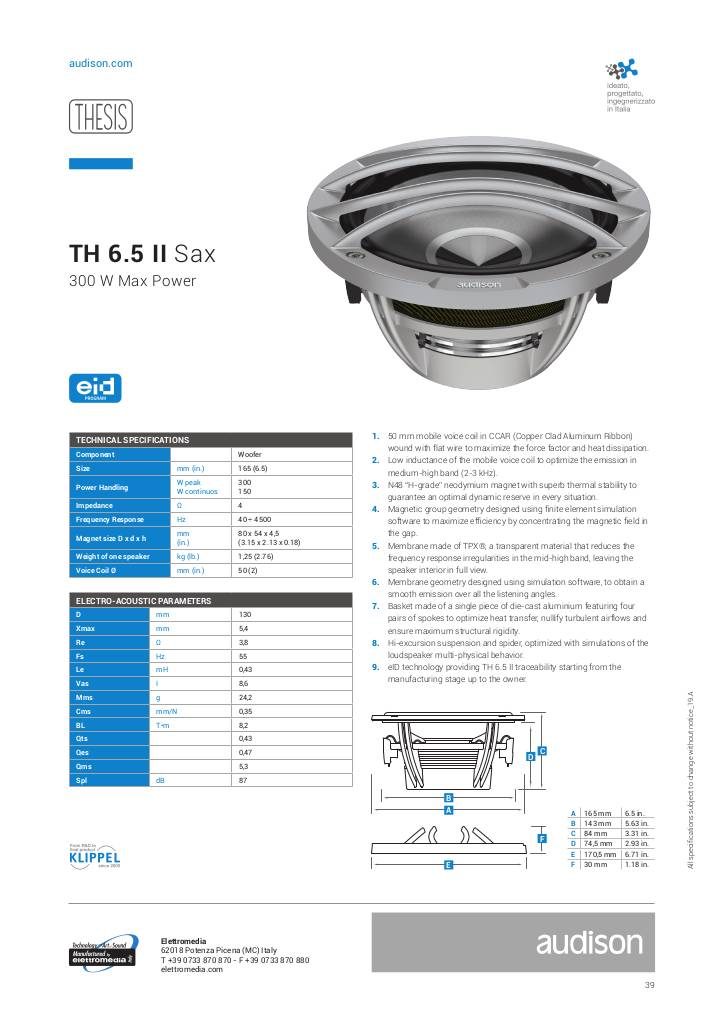

Scheda tecnica

n-20190220110358-woofer-thesis-saxii.pdf

Audison TH 6.5 II sax technical specifications

Woofer Size mm (in.) 165 (6.5)
Power Handling 300 W peak / 150 W continuos
Impedance Ω 4
Frequency Response Hz 40 - 4500
Magnet size D x d x h 80 x 54 x 4.5 mm (3.15" x 2.13" x 0.18")
Weight of one speaker kg 1.25 (2.76 lb)
Voice Coil Ø mm 50 (2")

ELECTRO-ACOUSTIC PARAMETERS
D mm 130
Xmax mm 5.4
Re Ω 3.8
Fs Hz 55
Le mH 0.43
Vas I 8.6
Mms g 24.2
Cms mm/N 0.35
BL T•m 8.2
Qts 0.43
Qes 0.47
Qms 5.3
Spl dB 87
