TD-196P Reinforced Polycarbonate Horn

Beyma
Your price:
€ 20,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Super Tweeter
Speaker Size
Other sizes
Impedance
8 Ohm
Weight
0,48 Kg

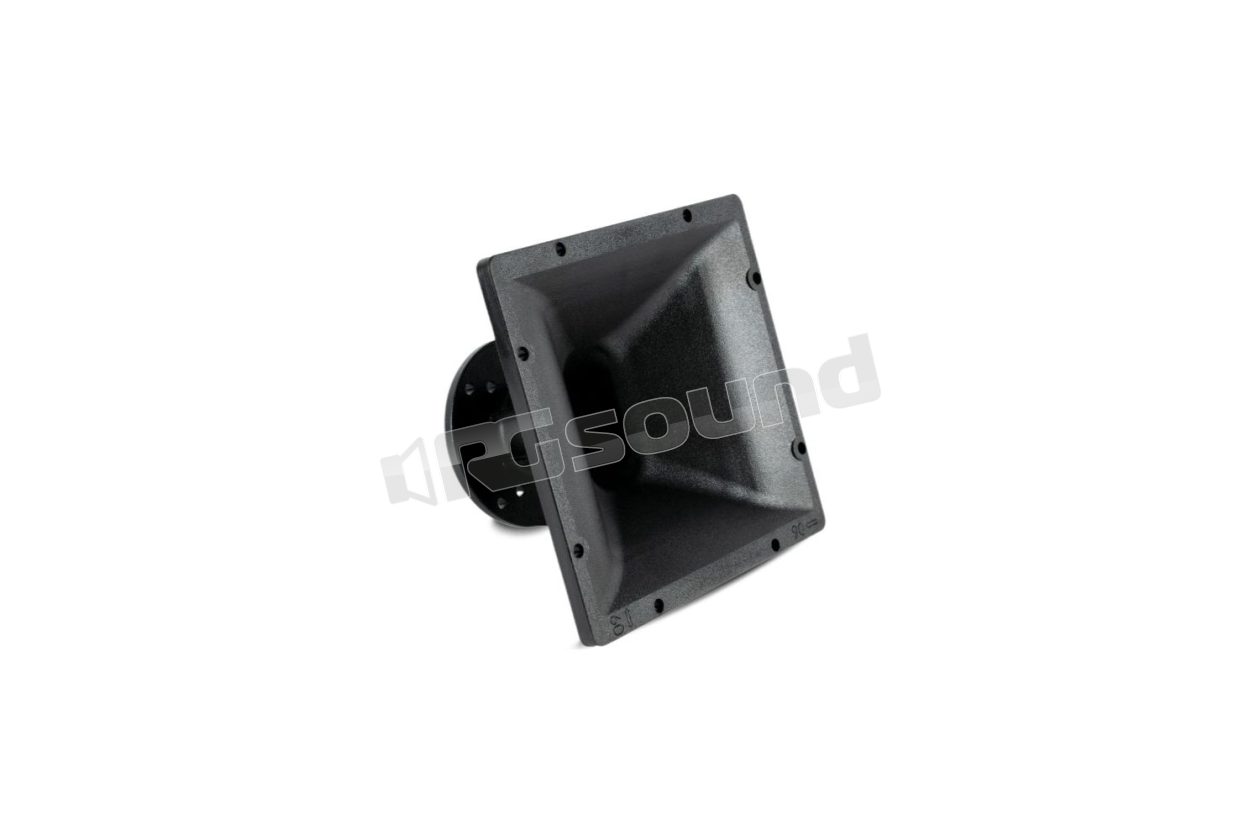

Beyma TD-196P Horn in Reinforced Polycarbonate

Beyma TD-196P Horn designed for compression drivers with 1" (25.4 mm) diameter throat. Coverage angles of 90° on the horizontal plane and 60° on the vertical plane. Precise directivity control in the passband. Square and compact design, which offers an alternative rotatable mounting.


TD-196P Features

  • Robust reinforced polycarbonate structure
  • Optimized flare F.E.M
  • Throat diameter: 25.4 mm 1 inch
  • Nominal horizontal coverage 90° Nominal vertical coverage 60°
  • Directivity index (DI) 8.8 db
  • Crossover frequency 1500 hz
  • Material: reinforced polycarbonate

Specifiche tecniche

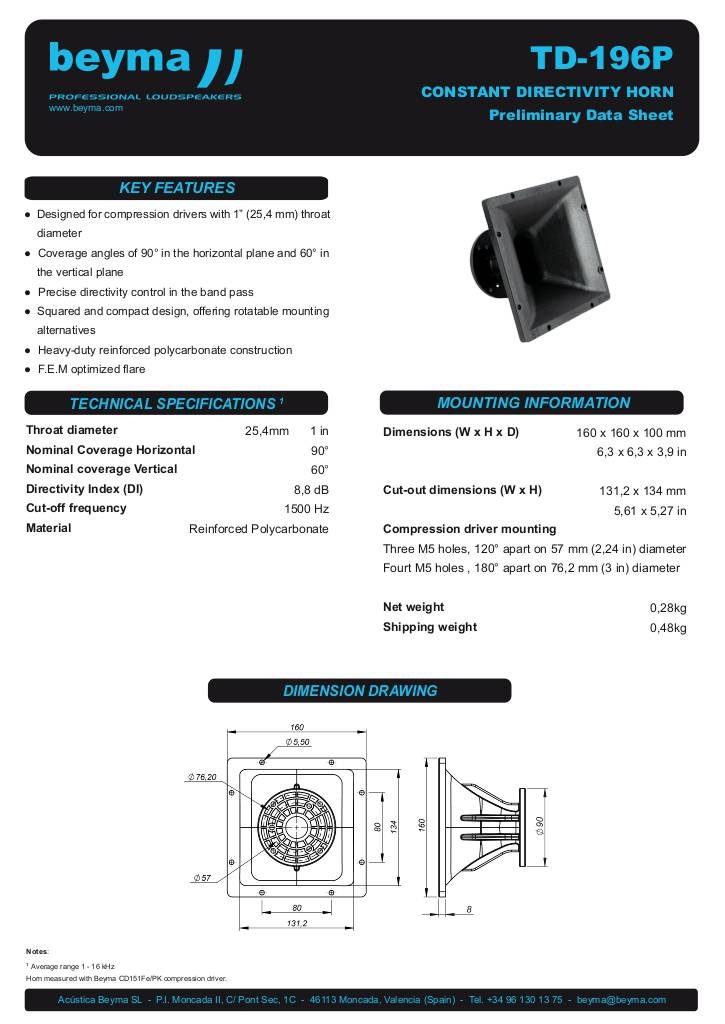

n-20230724145111-beyma-altavoces-hoja-tecnica-bocina-td196p.pdf

Beyma TD-196P Technical Specifications

  • Throat diameter 25.4 mm 1 in
  • Nominal horizontal coverage 90°
  • Nominal vertical coverage 60°
  • Directivity index (DI) 8.8 dB
  • Crossover frequency 1500 Hz
  • Material Reinforced polycarbonate
€ 20,00 Price incl. VAT
