TD-164P Reinforced polycarbonate horn

Beyma
Your price:
€ 20,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to

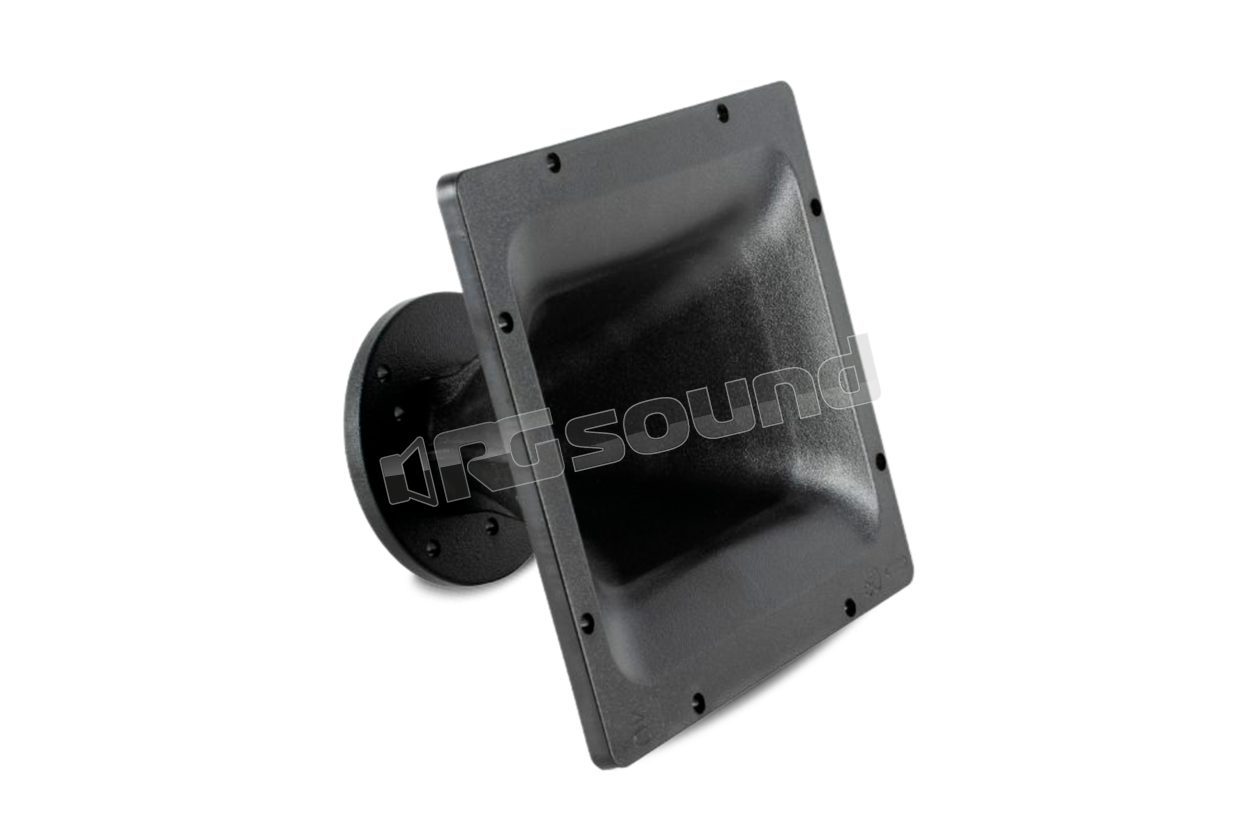

Beyma TD-164P Horn in Reinforced Polycarbonate

Beyma TD-164P Constant directivity horn is designed for compression drivers with 1" (25.4 mm) throat. Featuring coverage angles of 60° on the horizontal plane and 40° on the vertical plane and precise directivity control across the passband. With a squared and compact design, it offers rotatable mounting alternatives and the polycarbonate structure provides reinforcement for heavy-duty applications.

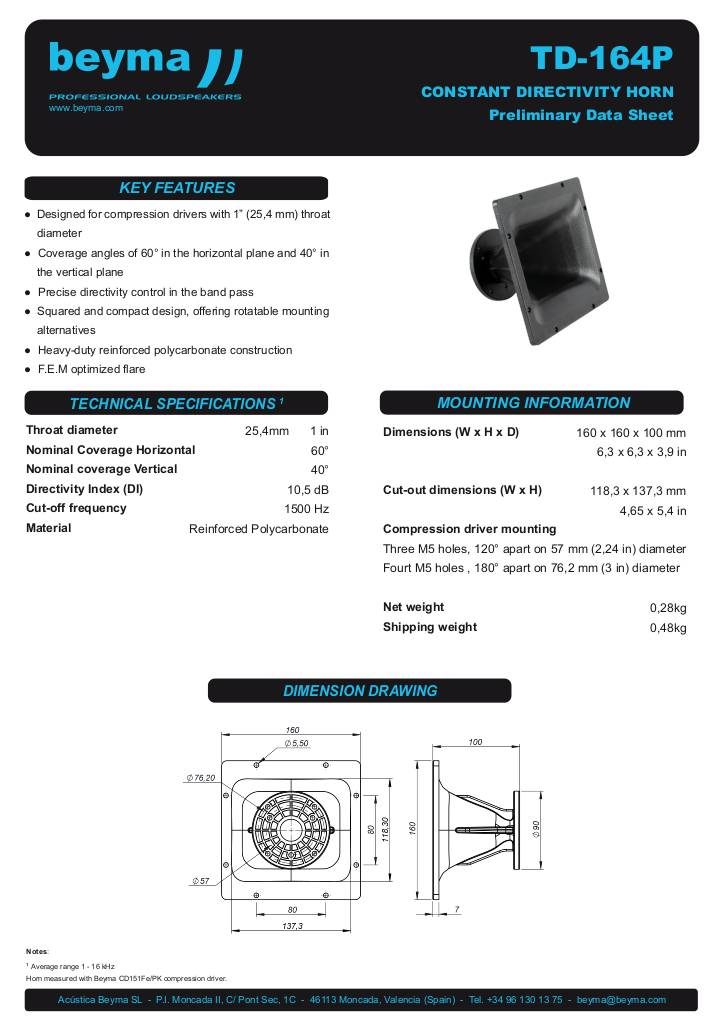

Scheda tecnica

n-20230725095230-beyma-altavoces-hoja-tecnica-bocina-td164p.pdf

Beyma TD-164P Technical Specifications

  • Throat diameter 25.4 mm 1 in
  • Nominal coverage Horizontal 60°
  • Nominal coverage Vertical 40°
  • Directivity index (DI) 10.5 dB
  • Crossover frequency 1500 Hz
  • Material Reinforced Polycarbonate
€ 20,00 Price incl. VAT
