TD-1496P Horn for 1.4" driver 90x60mm 9.3 dB

Beyma
Your price:
€ 65,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to

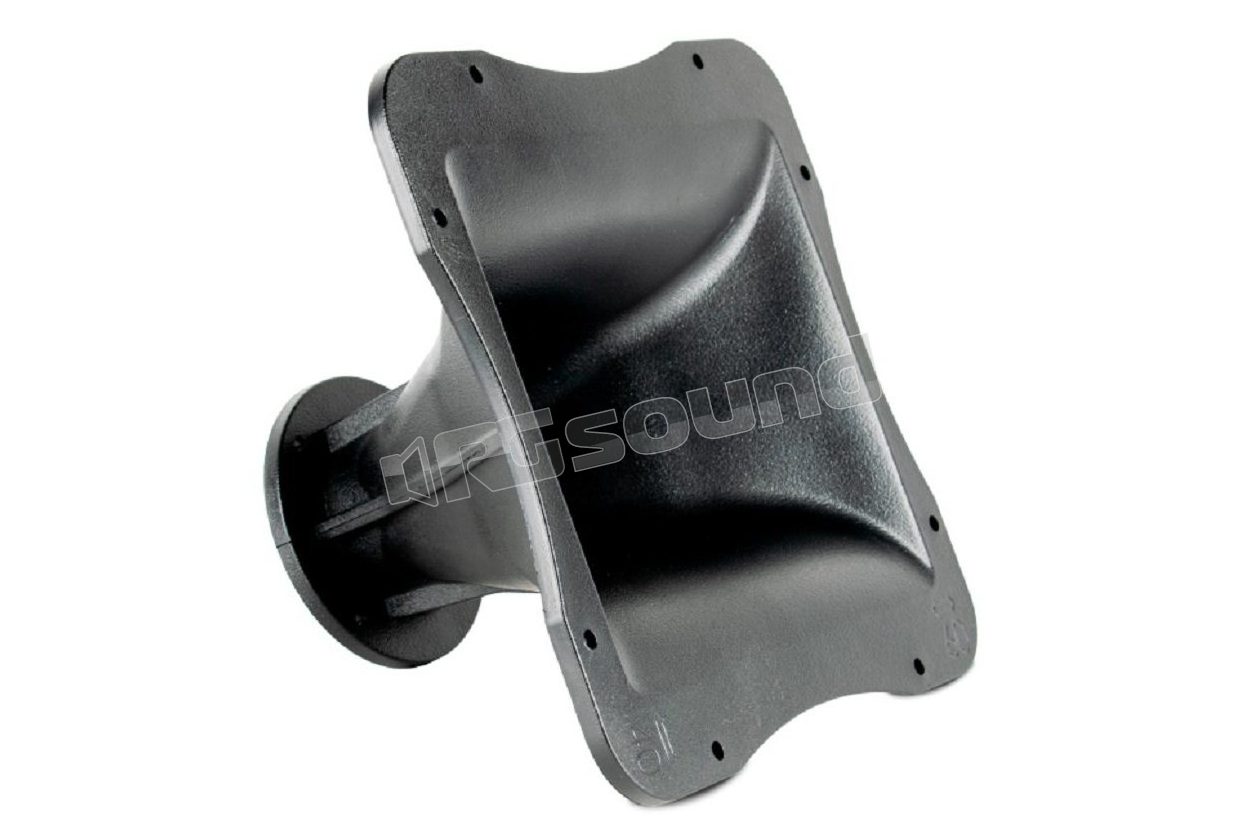

Beyma TD-1496P Horn for 1.4" driver 90x60mm 9.3 dB

Designed for compression drivers with 1.4" (36 mm) throat diameter

TD-1496P Features

  • Coverage angles of 90° on the horizontal plane and 60° on the
  • vertical plane
  • Precise directivity control in the passband
  • Square design, which offers adjustable mounting alternatives
  • Reinforced polycarbonate structure for heavy-duty use
  • Optimized mouth with F.E.M. method

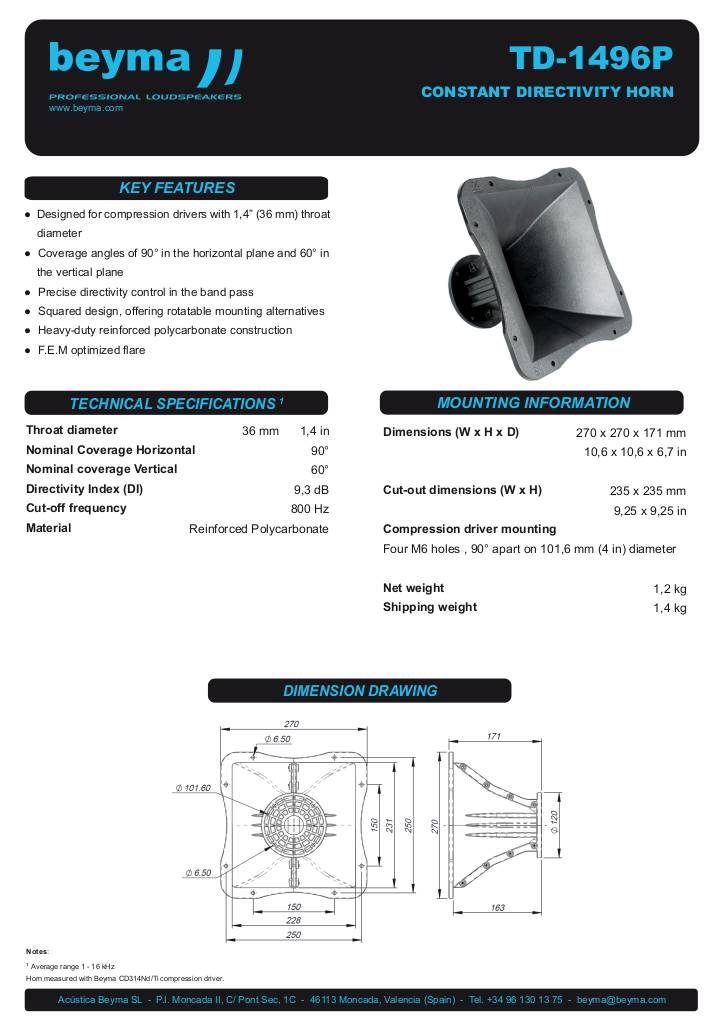

Scheda tecnica

n-20260623092829-td1496p.pdf

Beyma TD-1496P Technical specifications

  • HxV Dispersion 90x60º
  • Throat diameter 36 mm 1.4 inches
  • Directivity index (DI) 9.3 dB
  • Cutoff frequency 800 Hz
  • Dimensions (WxHxD) 270x270x171 mm
  • Deflector opening dimensions (WxH) 235x235 mm
  • Net weight 1.2 kg (2.64 lbs)
  • Total weight 1.4 kg
  • Material: reinforced polycarbonate
  • Structure: four M6 holes spaced 90° apart on a 101.6 mm (4 inches) diameter circle.
€ 65,00 Price incl. VAT
