TD-1464P Horn for 1.4" Driver 60x40mm 12.7 dB

Beyma
Your price:
€ 65,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to

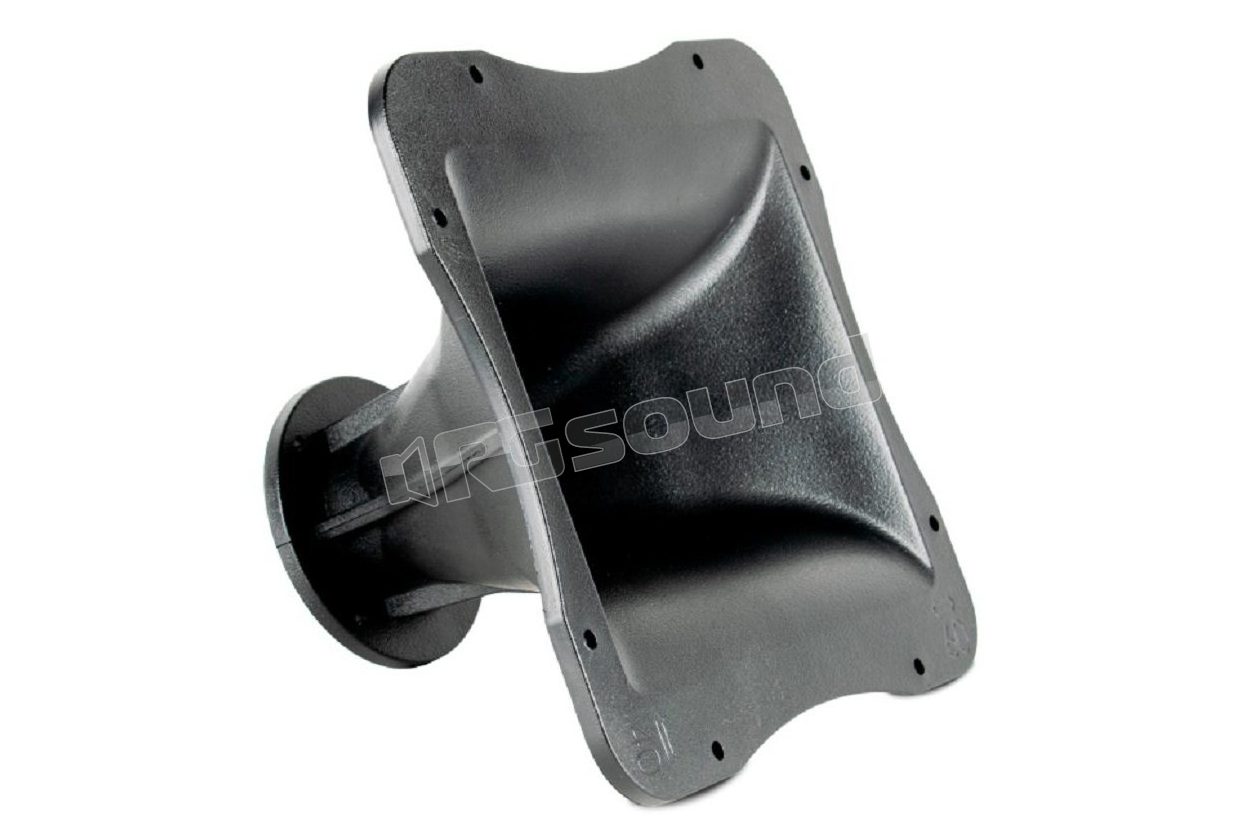

Beyma TD-1464P Horn for 60x40mm 1.4" Compression Driver 12.7 dB

Designed for compression drivers with 1.4" (36 mm) throat diameter

TD-1464P Features

  • Coverage angles of 60° in the horizontal plane and 40° in the vertical plane
  • Precise directivity control in the passband
  • Square design, offering adjustable mounting alternatives
  • Reinforced polycarbonate structure for heavy-duty applications
  • Mouth optimized with F.E.M. method

Beyma TD-1464P Technical Specifications

  • Dispersion angle HxV 60x40º
  • Throat diameter 36 mm 1.4 inches
  • Directivity index (DI) 12.7 dB
  • Cutoff frequency 800 Hz
  • Dimensions (WxHxD) 270x270x171 mm
  • Deflector hole dimensions (WxH) 235x235 mm
  • Net weight 1.2 kg
  • Total weight 1.4 kg
  • Material: reinforced polycarbonate
  • Structure: four M6 holes, spaced 90° apart on a 101.6 mm (4 in) diameter circle.
€ 65,00 Price incl. VAT
