TD-1124P Reinforced Polycarbonate Horn

Beyma
Your price:
€ 21,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Super Tweeter
Speaker Size
Other sizes
Weight
0,28 Kg

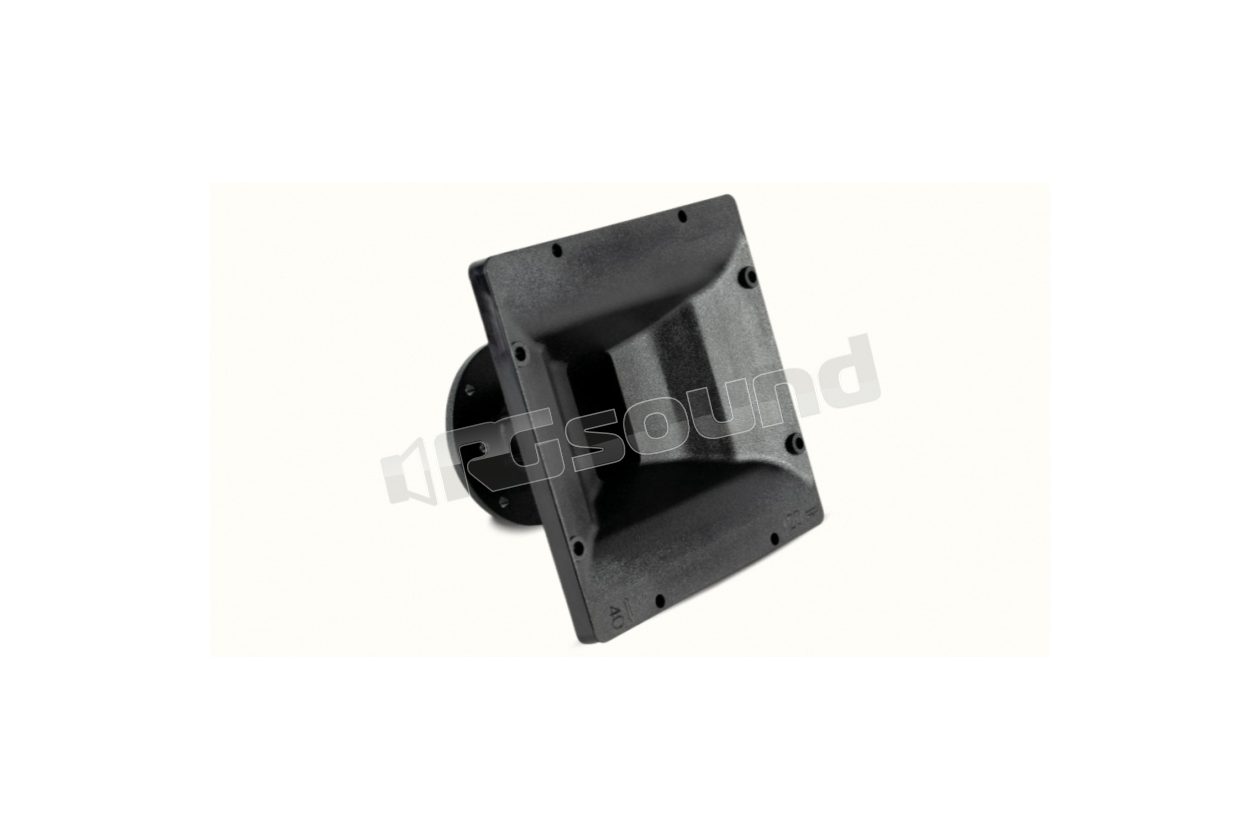

Beyma TD-1124P Horn in Reinforced Polycarbonate

The TD-1124P horn has been designed to operate with 1" compression drivers, providing uniform response both on-axis and off-axis. The constant directivity characteristics of this model guarantee the ability to cover 120 degrees horizontally and 40 degrees vertically, practically at any frequency within its operating range. Its square shape allows you to easily rotate the horn without having to make modifications to the cabinet.

TD-1124P Features

  • Coverage angles of 120 degrees horizontally and 40 degrees vertically.
  • Precise directivity control in the passband.
  • The square and compact design offers versatile mounting options.
  • Cast aluminum construction
  • Dimensions (W x H x D) 160x160x100 mm
  • Baffle cutout dimensions (W x H) 139x101.3 mm
  • Net weight 0.28 kg 2.2 lb
  • Total weight 0.4 kg 2.86 lb
  • Material Reinforced polycarbonate

Scheda prodotto

n-20230721123709-beyma-altavoces-hoja-tecnica-bocina-td1124p.pdf

Beyma TD-1124P Technical Specifications

  • Throat diameter 25.4 mm 1 in
  • Nominal coverage Horizontal 60°
  • Nominal coverage Vertical 40°
  • Directivity index (DI) 10.5 dB
  • Cutoff frequency 1500 Hz
  • Material Reinforced polycarbonate
€ 21,00 Price incl. VAT
